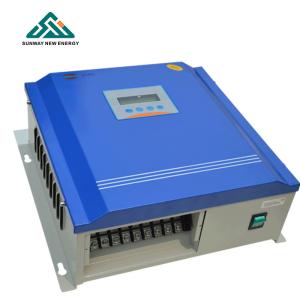

48v Durable Mppt Wind Solar Hybrid Controller With Intelligent Control

1kw 2kw 3kw 24v 48v 96v MPPT Wind and Solar Hybrid Wind Generator Charge Controller

FEATURES:

1.) Control using common positive polarity way, double lines for solar array
2.) Digital design, module structure, high stability and reliability
3.) Wind-turbine brake setting with user-key be programmable
4.) LCD equipped (backlighting) to show parameters of system running status
5.) High efficiency with by PWM charging method
6.) Multi-protections such as anti-reverse connection, no charging reversely while night. And Over-charge, limited charging
current &voltage protections for battery
7.) User can adjust setting of battery management system(BMS) and charging controlling
8.) With alarm function in system abnormal status
9.) Equipped with data communication function (optional)
10.) Intelligent cooling system inset

Model	1KW/24V,48V	2KW/48V,96V	3KW/48V,96V
Wind-turbine power[KW]	1	2	3
Rated wind-turbine voltage[V]	28.8 ; 57.6 ; 115.2 ; 144; 288
Rated battery voltage[V]	24 ; 48 ; 96 ; 120 ; 240
Electrical parameters
Consumption at standby [mA]	≤60
Consumption at night [mA]	≤20
Operating Temperature Range	-25ºC ~ +60ºC
Cooling Method	Convection with double cooling fans
Operating temperature	0%~98% Non-condensing
Terminal	Barrier terminal
Data-transfer port	RS485/232/WIFI/GPRS
Mounting	Wall
Main dimension(W*D*H)[mm]	380*355*150
Main-device net weight [kg]	8.5
Dump dimension(W*D*H)[mm]	440*160*170	440*240*150	440*240*150
Dump-load net weight [kg]	4	7	8.5

Package details

Q1:Are you a factory or trade company?

We are a factory who has more than 10 years experience in manufacturing; strong aftersale service team and technical support. Free design according to client requirements.

Q2:Whats the MOQ? We have stock and semi-finished products with enough base materials for new sampleand order for all models, So small quantity order is accepted, it can meet your require.ment very well.

Q3:Why others price much cheaper? We try our best to ensure our quality to be the best one in the same level price products. We believe safety and effectiveness are the most important.

Q4:Can I have a sample for testing?

Yes, you are welcome to test samples before quantity order; Sample order will be sentout 2-3 days generally.

Q5:Can Iadd my logo on the products?

Yes,OEM and ODM are available for us. But you should send us the Trademark authori-zation letter.

Q6 :Do you have inspection procedures?

100% self-inspection before packing.

We located in APEC High-Tech Industrial Park, Hefei National Hi-Tech Industrial Development Zone, is a professional and high-tech enterprise that engaged in wind generation, photovoltaic system and other renewable energy R&D, manufacturing and marketing.
Sunway power main products are PV solar system, portable solar system, Solar panels, MPPT solar and wind controller series, PV and wind system controller series, solar inverter. Our products had many intellectual property, and gained 12 national patents, software copyright certificate, passed the testing from national testing organization and CE Certification Institution. Also we have registered brand successfully. Our company has been rated Hi-tech Enterprise and gained ISO-9001certificate since August, 2011 year.
