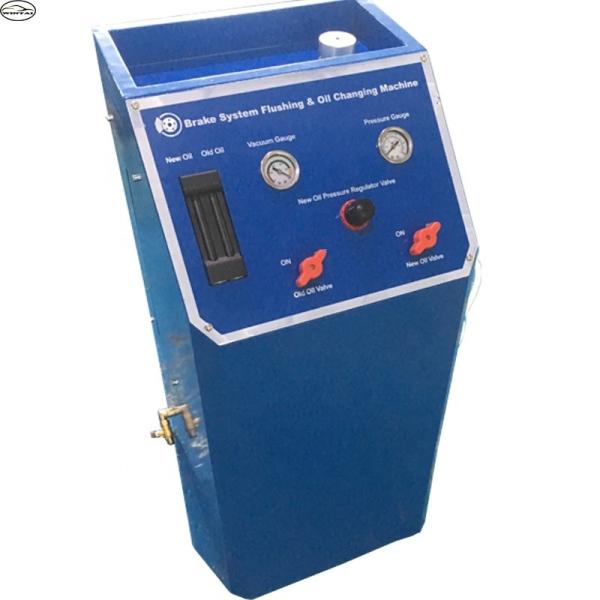

Automotive Brake Oil Change Machine with PA Brake Material and 4LX2
Oil Tank Capacity
Functions:
1. Changing brake oil for 4 wheels at same time,
2. 304 Stainless steel oil tank, anti-corrosion,
3. High quality pressure controller work precisely,
4. Extracting from up and pushing from bottom structure makes sure oil
changed quickly to avoid air enter,
5. New/Old oil drained automatically
Parameter:
| Material of oil tank | stainless steel |
| Volume of oil tank | 4LX2 |
| Air pressure gauge | 0-140PSI |
| Vacuum gauge | 0-0.1Mpa |
| Oil pipe | 2.5mx5 |
| Brake material | PA |
| Net Weight | 28kgs |
| Gross weight | 30kgs |
| Machine size | 43X40X95CM |
Method of operation:
1. Make sure switches of New Oil Filling, Old Oil extraction and Waste
Oil Drainage valve are off, connect equipment with air source ,
2. Use oil pumper to extract old oil from brake fluid tank as more as
possible and keep 50ml old oil in bottle as sample,
3. Filling brake oil tank manually with detergent and feeding the
remaining detergent from New Oil Filling port at the right top of
equipment (releasing pressure is necessary when loosening it),
4. Connect filling adapter of equipment, transparent tube (with quick
joint) and brake fluid tank connector together, switch on New Oil
Filling, adjust air pressure to 2kgs, slowly switch on Oil Filling
Valve and observe the flow of fluid in tube to make sure the air in
tube is extracted thoroughly. Switch off New Oil Filling ,and
connect brake fluid tank connector with brake fluid port
5. Use 4 hoses to connect 4 brake oil pumps of car and loosen the oil
screw,
6. Switch on Old Oil Recycling and New Oil Filling, Switch off them
when no fluid flow from filling port to finish cleaning procedure,
7. Filling 2 bottles of brake oil from New Oil Filling port at top
right of equipment (releasing pressure is necessary when loosening
it), then screw it up,
8. Switch on Old Oil Recycling and New Oil Filling. Switch off New Oil
Filling when fluid level in new oil watching window reach “02” and
fluid level in brake oil tank is a little higher than highest line,
9. Close oil screw and disconnect 4 hoses of brake oil quickly, sort
out extracting oil pipe and wipe it with towel, then switch off Old
Oil Extraction after putting extracting oil pipe back in right
place,
10.Step brake 7-8 times ,then observe the fluid level in brake oil
tank ,fill some more to suitable level and screw up tank cover,
then begin driving test.
Please contact us for operation video.
