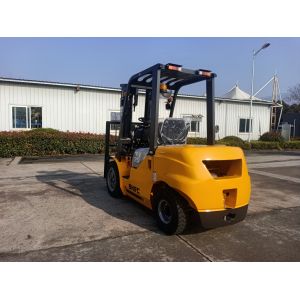

FD35 3.5 Ton 3.5T Diesel Engine Forklift Truck With License High Quality Durable

    Buy cheap FD35 3.5 Ton 3.5T Diesel Engine Forklift Truck With License High Quality Durable from wholesalers

    Buy cheap FD35 3.5 Ton 3.5T Diesel Engine Forklift Truck With License High Quality Durable from wholesalers
    • Buy cheap FD35 3.5 Ton 3.5T Diesel Engine Forklift Truck With License High Quality Durable from wholesalers
    • Buy cheap FD35 3.5 Ton 3.5T Diesel Engine Forklift Truck With License High Quality Durable from wholesalers
    • Buy cheap FD35 3.5 Ton 3.5T Diesel Engine Forklift Truck With License High Quality Durable from wholesalers
    • Buy cheap FD35 3.5 Ton 3.5T Diesel Engine Forklift Truck With License High Quality Durable from wholesalers
    • Buy cheap FD35 3.5 Ton 3.5T Diesel Engine Forklift Truck With License High Quality Durable from wholesalers
    • Buy cheap FD35 3.5 Ton 3.5T Diesel Engine Forklift Truck With License High Quality Durable from wholesalers
    • Buy cheap FD35 3.5 Ton 3.5T Diesel Engine Forklift Truck With License High Quality Durable from wholesalers

    FD35 3.5 Ton 3.5T Diesel Engine Forklift Truck With License High Quality Durable

    Ask Lasest Price
    Brand Name : SNSC
    Model Number : FD35 3.5 Ton diesel forklift
    Certification : CE
    Price : USD6000-10000
    Payment Terms : T/T
    Supply Ability : 100 set per month
    Delivery Time : 15-40 work days
    • Product Details
    • Company Profile

    FD35 3.5 Ton 3.5T Diesel Engine Forklift Truck With License High Quality Durable

    FD35 3.5Ton diesel forklift 3.5T diesel engine forklift truck with Forklift License High quality and durable forklift

    Product Images

    Product Description

    3.5 Ton diesel forklift

    Engine: China Xichai & Japanese ISUZU engine
    Mast: 3-stage standard mast, 2-stage full free mast, 3-stage full free mast, mast height range from 3000-7000mm
    Hydraulic system: all adopt Japan SHIMADZU pump and valves ;
    Tires: Pneumatic tires/Solid tires/Environment-friendly solid tires/High Elastic Solid tires
    Transmission: Electric Hydraulic Automatic Transmission;
    Seat: Stand seat/ Adjustable Fully Suspension Duluxe Seat with safety belt
    Exhaust: Middle Exhaust/Higher Exhaust
    Options: Side shifter, Fork positioner, Cabin, Double air filter, Attachments such as paper roll clamp, block clamp, bale clamp,
    rotator, buckets, etc.

    Specifications
    Unit
    FD30
    FD35
    1
    Features
    Power type
    -
    Diesel
    Diesel
    2
    Rated load
    kg
    3000
    3500
    3
    Load center
    mm
    500
    500
    4
    Lifting Height
    mm
    3000
    3000
    5
    Free lifting height
    mm
    145
    145
    6
    Fork size
    LxWxT
    mm
    1070X125X45
    1070X125X45
    7
    Mast Tilt Angle
    Front/Read
    °
    6/12
    6/12
    8
    Min. Turning Radius
    mm
    2600
    2600
    9
    Min. Stacking Right Angle Channel Width
    mm
    4550
    4550
    10
    Min. Ground Clearance
    Mast
    mm
    120
    120
    11
    Overhear Guard Height
    mm
    2170
    2170
    12
    Front Overhang
    mm
    480
    480
    13
    Rear Overhang
    mm
    545
    545
    14
    Performances
    Max. Travelling Speed
    loaded
    Km/h
    20
    20
    15
    Max. Lifting Speed
    loaded/empty
    mm/s
    470/520
    470/520
    16
    Max. Traction Force
    loaded
    KN
    18
    18
    17
    Max. Climbing Ability
    °
    20
    20
    18
    Dimension
    Overall Length
    without fork
    mm
    2825
    2825
    19
    Overall Width
    mm
    1230
    1230
    20
    Mast Lowered Height
    mm
    2065
    2095
    21
    Mast Extended Height
    mm
    4260
    4265
    22
    Chassis
    Tyre
    Front
    -
    28x9-15-12PR
    28X9-15-12PR
    23
    Rear
    -
    6.50-10-10PR
    6.50-10-10PR
    24
    Wheel Base
    mm
    1800
    1800
    25
    Wheel Thread
    Front/Rear
    mm
    1000/970
    1000/970
    26
    Weight(without load)
    kg
    4250
    4450
    27
    Powertrain
    Battery
    V/Ah
    12/90
    12/90
    28
    Engine
    Model
    -
    XC490
    XC495
    29
    Rated Power
    KW/r.p.m
    39/2650
    39/2500
    30
    Rated Torque
    N.m/r.p.m
    157/1980
    168/1800
    31
    No. of cylinder
    -
    4
    4
    32
    Bore x Stroke
    mm
    90 x 105
    95 x 105
    33
    Displacement
    L
    2.67
    2.98
    34
    Fuel Tank Capacity
    L
    70
    70
    35
    Transmission/Shift
    -
    1/1 Automatic transmission
    36
    Operation Pressure
    MPa
    17.5
    17.5
    Detailed Images
    XC6110 Engine
    XC6110 Engine comply with
    U.S.A ECA and CA standar
    Waterproof Overhead Guard with transparent plastic cover
    LED Digital Gauge Dashboard
    Fully Suspension Duluxe Seat with safety belt and armrest
    Triangle wide view back mirror
    Air inlet at high position
    Solid tires

    Electric Hydraulic Automatic Transmission
    Adjustable steering wheel
    Warning Light and rear combination lights
    Steel structure light protection
    Middle Exhaust
    Dustproof cover for tilt-cylinder
    Quality Contronl

    Metal Plasma cutting

    Effectively process metal thickness of 0.3mm or more thermal processing(cutting, welding, brazing, hardening, painting, etc.)

    Welding Robots

    By robotic positioner external axis servo motor rotation, combined with the robotic system trajectory interpolation, ensuring the smooth running accuracy and machine operation.

    Parts warehouse

    90% steel structure parts are made by ourselves, which can gurantee our forklift parts' mutual good match and great working performance.

    Automatic painting line

    It can ensure the cleanliness temperature, illuminations and environmental health and safety standards required by painting, painting improve product quality.

    Vechile assmembly line

    apply heavy plate chain conveyor transfer mode, the total length of 76 meters. a total of 14 valid stations, the average production time is 12 minutes a day to complete the 50 machines.

    Serious Yard Testing

    All of our SNSC forklifts need to be seriously tested before delivery such as climbing test, turning test, lifting test and others.
    Common Options
    Side shifter
    Fork positioner with side shifter
    Fully Closed Cabin
    Bale Clamp
    Concrete Block Clamp
    Paper Roll Clamp
    Rotator
    Bucket
    Package and Delivery

    Certifications

    SNSC Forklift have passed all kinds of international certificates, CE, ISO9001, GHOST Certificates.

    Especially, our CE certificate is made in Turkey. Forklifts' Quality definitely guaranteed.

    Company Introduction

    SNSC --"Beyond your needs!"
    SNSC Forklift informs a complete industiral vehicle system including internal combustion type, battery type, LPG type, storage type, listing as below:
    Diesel forklift: FD15, FD18, FD20, FD25, FD30, FD35, FD40, FD50, FD60, FD70, FD80, FD100
    Electric forklift: FB15, FB20, FB25, FB30, FB35
    LPG&Gasoline forklift: FL15, FL18, FL20, FL25, FL30, FL35
    Warehouse equipment: manual pallet truck, electric palletr truck, electric stacker truck, electric reach truck, electric tractor.
