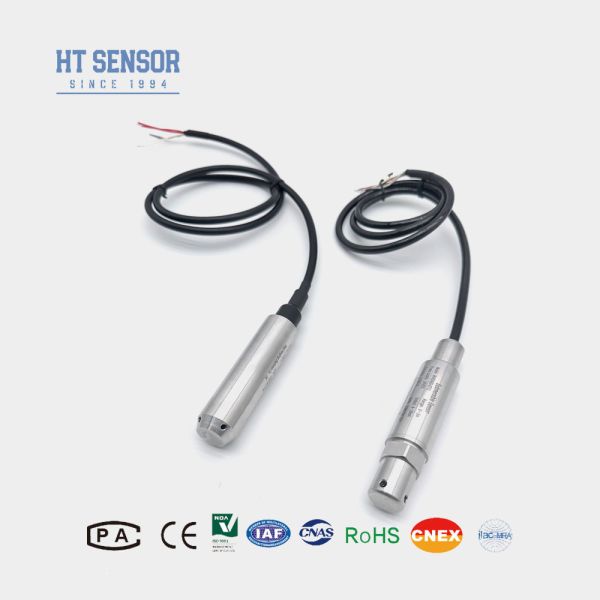

BH93420 I Water level transmitter sensorIntroduction of water level transmitter sensor:The BH93420-I series of liquid level transmitters has a universal
design for multi-industry applications, as well as a special design
for different industry application characteristics. We will
carefully analyze the customer's working environment and
requirements, and then choose the most suitable products; We can
also customize products according to the special requirements of
users, so that every user can get the best experience.
Product Features of water level transmitter sensor:1. Full stainless steel housing, suitable for various testing
environments
2. Immersion-type probe measurement, easy installation
3. Diverse output signal options
4. Explosion-proof marking: ExiaIICT6
5. High protection rate: IP68
6. PE or PU cable| Performance Parameters of water level transmitter sensor |
|---|
| Measurement Range | 0~10m…400m |
|---|
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
|---|
| Overload | ≤ 2X rated range |
|---|
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
|---|
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
|---|
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
|---|
| Long-Term Stability | ±0.2%F.S/year (Max.) |
|---|
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
|---|
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
|---|
| Compensation Temperature | 0-50ºC (0-1m. 0-2m ); 0-70ºC |
|---|
| Operating Temperature | -20~80ºC |
|---|
| Storage Temperature | -30~100ºC |
|---|
| Vibration | 10g,55Hz ~ 2kHz |
|---|
| Housing Material | 1Cr18Ni9Ti |
|---|
| Diaphragm Material | 316L Stainless Steel |
|---|
| Insulation Resistance | >=100MΩ@100VDC |
|---|
| Explosion-proof Rating | ExiaIICT6 |
|---|
| Protection Rating | IP67, IP68 |
|---|
| O-Ring Seal | Fluoro rubber |
|---|
| Weight | ~0.3Kg (without cable) |
|---|
| Cable Material | Polyethylene, Polyurethane |
|---|
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA |
3 wire |
| 0/1~5V |
| 0/1~10V |
| 0.5~4.5V | 5VDC |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
1. Please ensure that the measured medium is compatible with the
product components in contact with it during selection.
2. The density of the measured medium should be specified.
3. For strong electromagnetic or radio frequency interference,
please provide details to our company and indicate it in the order.
4. To ensure the reliable operation of the product, it is
recommended that users install lightning protection devices on-site
and ensure the product and power supply are reliably grounded.
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance.
Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure
sensor transmitters per month, so we are fully capable of meeting
the needs of large-scale orders. However, it is advisable to
contact our sales team in advance to ensure smooth production and
delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may
vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term
partners.
6. Q: What is the warranty of your products? And after-sales
service?
A: Our warranty time is 24 months after shipment, and our
after-sales will respond with your questions in 24hrs, remote
instruction by PC network is always available.
