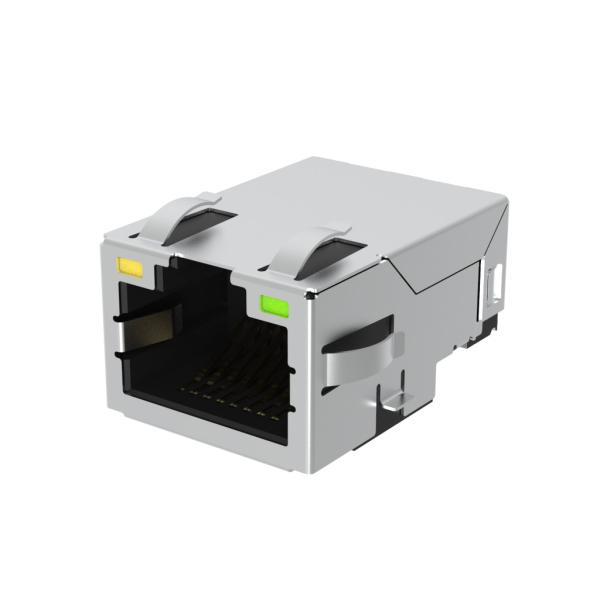

RJMG221ST12452T Amphenol Modular Jack With Integrated Magnetics

Key Features of RJ45 Jack with Magnetics​:

1. ​Low mode conversion
2. DlP type
3. Shielded and improved EMl performance
4. Green - Yellow LEDs
5. Integrated Magnetics
6. 6u" Gold plating of contact area
7. Meets a wide range of cable performance requirements up to Cat 6a

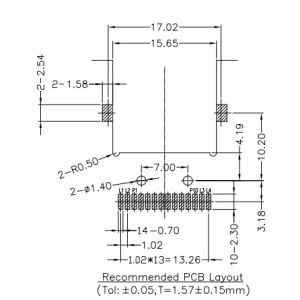

8. Facilitates easy PCB assembly
9. Provides DC isolation
10. Operating Temperature :-40°C T0 +85°C
11. Storage Temperature :-40°C T0 +85°C
12. JACK CAVITY CONFORMS TO FCC RULES AND REGULATIONSPART 68
13. REFLOW SOLDERING TEMPERATURE: 250°C FOR 10 SECONDS MAX

RJMG221ST12452T Main Applications:

• Communications
• Consumer
• Data
• Industrial & instrumentation
• Medical

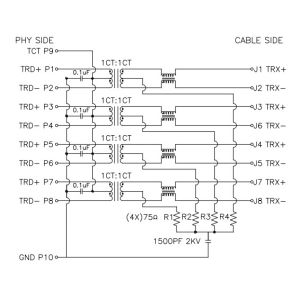

Electrical Specifications (@25℃):

Materials of Amphenol RJ45 Connector:

1. Terminal Parts:
1.1. RJ Terminal : Phosphor Bronze, C5191, Thickness=0.30mm Finish: 15u" gold plating on contact area, 100u" min. tin on solder tail area, underplating 30u" MIN. Nickel overall.
1.2. RJ input Terminal: Brass, Thickness=0.35mm
Finish: 100u” min. tin over 30u” MIN. Nickel.
2. Plastic Parts:
2.1. Housing: HIGH-TEMPERATURE PLASTIC BLACK
Flame Class: UL94 V-0
2.2. Coil Case: HIGH-TEMPERATURE PLASTIC BLACK
Flame Class: UL94 V-0
3. Shield: Stainless steel, SUS304, Thickness=0.20mm, 50u" MIN. NI PLATED OVERALL

LINK-PP is a professional designer and Manufacturer of magnetic telecom and networking components. Founded in Shenzhen in 1997 and began to develop Discrete Transformer. With over 26 years of experience in innovation and technology leadership. Our main products include RJ45 Connectors, LAN Transformers, and SFP Modules. We focus on improving product reliability and durability.

Main Production Lines

◆ 10/100/1000/10GBase-T LAN Isolation Transformer and Filter

◆ Rj45 Modular Jack With Integrated 10/100/1000/10G Magnetics
◆ Magnetic Rj45 Jack with POE/ POE+; IEEE823.3af/ IEEE802.3at
◆ LAN Transformer With POE/ POE+; IEEE823.3af/ IEEE802.3at
◆ T1/E1,T3/DS3/E3/STS-1 Interface LAN transformer
◆ ISDN,HDSL,ADSL and VDSL Transformer and splitter

◆ Optical Transceivers
