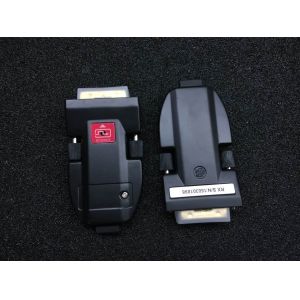

Product Description:
MINI DVI Fiber Cable Extender is a miniaturized device used to solve the problem of long-distance
high-speed transmission of
DVI/HDMI video images. MINI DVI fiber optic extender can support EDID learning, compatible with different display
devices
with different resolutions. DVI fiber optic extender includes a signal transmitter and a receiver, using USB power
supply, can be
powered through the projector, display, video processing equipment
USB interface, to solve the problem of on-site installation
power supply. The device is transmitted through a single mode
optical fiber, which can travel up to 2KM. The biggest feature
of the product is small, easy to install, low heat.
Product Features:
- Conforms to HDMI 1.3 and DVI 1.0 specifications
- Supports 10.2Gpbs video bandwidth
- The highest video resolution is 1920x1200@60Hz
- The DVI/HDMI signal can be extended by 2km through single-mode
fiber optic lines and 200M through multi-mode
- The transmitter supports EDID learning
- HDMI supports audio transmission
- fiber optic extender supports 3D format video
- fiber optic extender up to 4K
Technical Parameters:
| Video | HDMI compatible | HDMI 1.3/fiber optic extender |
| DVI compatible | DVI 1.0 |
| Video bandwidth | 10.2Gbps |
| Video resolution | 480i ~1080p50/60Hz, 1920x1200@60Hz; HDMI resolution up to 4K30HZ
backward compatible |
| Color space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| Color depth | 8/10/12-bit (1080P60Hz) |
| HDMI audio format | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Transmission distance | 2KM (single-mode optical fiber), does not support multi-mode
optical fiber transmission |
| Electrostatic protection | Human body model: ±8kV (air discharge), ±4kV (contact discharge) |
| Port | transmitter | Input port: 1 x DVI-D [19-pin female] 1 x Micro USB Output port: 1 x FIBER |
| receiver | Input port: 1 x FIBER1 x Micro USB Output port: 1×DVI-D [19-pin female] |
| Fuselage | shell | Zinc alloy shell |
| colour | Black |
| dimension | Transmitter/receiver: 75.5mm(L)× 41mm(W)×16.5mm(H) |
| weight | Transmitter: 113g, receiver: 111g |
| Power source | DC 5V/1A |
| Maximum power consumption | Transmitter: 2.74W (Max), receiver: 3.03W (Max) |
| Operating temperature | 0-40℃ |
| Relative humidity | -20-90%RH (non-condensing) |
| Storage temperature | - 20-60℃ |
Application and Scene:
The fiber optic extenders are widely used in stage rental,
exhibition, foreign language travel, video conferencing, rail
transit, radio and television
and other different industries
- Professional AV Installations:
The fiber optic extender ideal for connecting Mini DVI sources,
such as laptops and graphic workstations, to high-resolution
displays and projectors in conference rooms, auditoriums, and event
venues, ensuring top-notch video quality over long distances.
DVI fiber optic extender is perfect for retail environments,
airports, and public spaces where clear and vibrant visuals are
essential. The extender enables the connection of media players to
large displays, facilitating effective advertising and information
dissemination.
DVI fiber optic extender used in classrooms and lecture halls to
connect computers and interactive displays, allowing educators to
present multimedia content clearly to students, enhancing the
learning experience.
