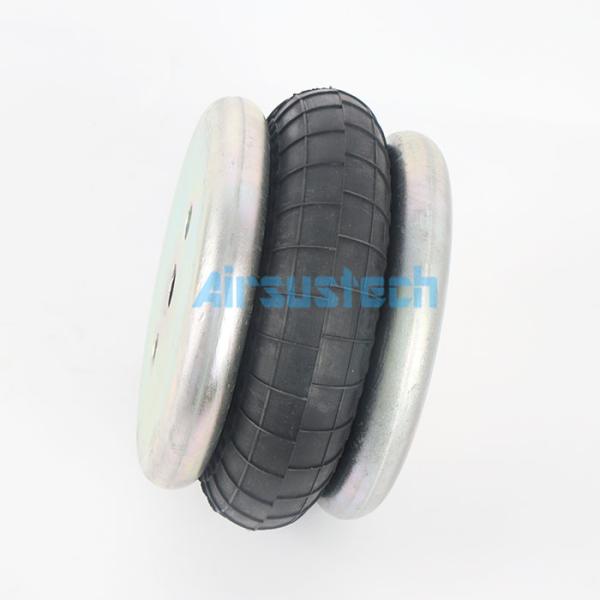

Firestone W01-M58-6140 Air Bags Single Convoluted Air Spring 1/4 Air Inlet

    Buy cheap Firestone W01-M58-6140 Air Bags Single Convoluted Air Spring 1/4 Air Inlet from wholesalers

    Buy cheap Firestone W01-M58-6140 Air Bags Single Convoluted Air Spring 1/4 Air Inlet from wholesalers
    • Buy cheap Firestone W01-M58-6140 Air Bags Single Convoluted Air Spring 1/4 Air Inlet from wholesalers
    • Buy cheap Firestone W01-M58-6140 Air Bags Single Convoluted Air Spring 1/4 Air Inlet from wholesalers
    • Buy cheap Firestone W01-M58-6140 Air Bags Single Convoluted Air Spring 1/4 Air Inlet from wholesalers
    • Buy cheap Firestone W01-M58-6140 Air Bags Single Convoluted Air Spring 1/4 Air Inlet from wholesalers

    Firestone W01-M58-6140 Air Bags Single Convoluted Air Spring 1/4 Air Inlet

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B130070M8
    Certification : ISO/TS16949:2009
    Price : USD69.9/PC-USD199.9/PC
    Delivery Time : 5-8 Working Days
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    • Product Details
    • Company Profile

    Firestone W01-M58-6140 Air Bags Single Convoluted Air Spring 1/4 Air Inlet


    Firestone W01-M58-6140 Air Bags Single Convoluted Air Spring 1/4 Air Inlet


    Technical Parameters of W01-M58-6140:

    • Dim. A (Blind Nut Centers) (mm): 44
    • Maximum Diameter @ 7 Bar (mm): 152
    • Minimum Height (mm): 48
    • Maximum Stroke (mm): 36
    • Maximum Usable Height (mm): 84
    • Air Inlet: 1/4 BSP
    • Force in kN @ 5 Bar at Stroke of 25 mm: 3.6
    • Force in kN @ 5 Bar at Stroke of Maximum Stroke: 2.5

    Cross References:


    Bosch1915041000
    ContiTechFS50-5 1/4 M8
    FS50-5CI G1/4
    EnidineYI 1B5 810
    Enidine Bellows No.579 913 500

    The following air spring products have the same style 16 as W01-M58-1640:


    Socket head aluminum bead rings (bolts, nuts, washers not included–use M6 cap screws)

    W01-358-0017, W01 358 0017, W013580017,

    WO1-358-0017, WO1 358 0017, WO13580017

    Rubber bellows only

    W01-358-0010, W01 358 0010, W013580010,

    WO1-358-0010, WO1 358 0010, WO13580010


    Applications:

    The AIRSUSTECH Firestone Air Bags are ideal for a wide range of product application occasions and scenarios, such as:


    1. Transportation industry: The AIRSUSTECH 1B130070M8 Air Springs are perfect for heavy-duty trucks, trailers, and buses, providing enhanced load-carrying capacity, improved stability, and reduced vibration.
    2. Off-road vehicles: The W01-M58-6140 Air Springs are suitable for off-road vehicles, such as SUVs and pickups, offering improved ride quality, better shock absorption, and increased ground clearance.
    3. Construction industry: The AIRSUSTECH Air Bags are perfect for construction and agricultural equipment, offering improved load-carrying capacity, better stability, and reduced downtime.

    ​The AIRSUSTECH Air Bags are compatible with a wide range of vehicles, and can be used as a Firestone Air Spring Cross Reference, providing a direct replacement for Firestone Air Springs.


    The Advantages of AIRSUSTECH 1B130070M8:

    • Affordable

    • Wide Range

    • Durability

    • No Internal Rod, Piston, or Sliding Seals

    • No Friction

    • Flexible

    • Angular Capabilities

    • Side Loading Capabilities

    • Compact Starting Height

    • Factory Tested

    Support and Services:


    The AIRSUSTECH Air Bags Product Technical Support:

    1. Provides additional support for your vehicle's suspension system

    2. Helps to reduce vehicle sagging, sway, and bottoming out

    3. Easy to install and inflate/deflate as needed

    4. Constructed with high-quality materials for durability and longevity

    5. Available in a variety of sizes to fit most vehicles


    The AIRSUSTECH Air Springs Product Services:

    1. Professional installation available through authorized dealers

    2. Warranty included with product purchase

    3. Online resources available for product information and troubleshooting

    4. Customer service available for any questions or concerns
