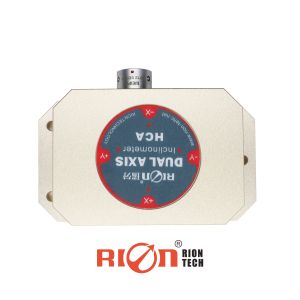

    HCA526T Aluminum Alloy Voltage Power Rion Inclinometer IP67 Electronic Angle Meter

    Ask Lasest Price
    Model Number : HCA526T-30
    Brand Name : RION
    Supply Ability : 30000 Piece/Pieces per Month inclinometers are avaliable
    Price : $305.00/Pieces >=1 Pieces
    Certification : CE
    Payment Terms : T/T, PayPal
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    HCA526T Aluminum Alloy Voltage Power Rion Inclinometer IP67 Electronic Angle Meter

    HCA526T Aluminum Alloy Voltage Power Rion Inclinometer IP67 Electronic Angle Meter​



    Description:

    HCA516T/HCA526THCA526T is a high accuracy inclinometer launched by RION company, inherit the stability of the SCA series, while the accuracy be effectively improved, and the temperature drift performance with much more excellence , in addition the system with built-in high-precision 16bit A / D differential converter, meanwhile through 5 filtering algorithm, which can measure the angle of sensor output relative to the horizontal tilt and pitch tilt. The output interface RS485 / RS232 / RS422 / TTL are optional.

    Features:


    1:Dual-Axis inclinometer
    2:DC 9-36V wide voltage power supply
    3:Shockproof>20000g
    4:Output RS232,RS485,TTL serial interface
    5:Water-proof air-plug connector

    6:Resolution0.001°
    7:Wide Temperature-40-+85(Degrees Celsius)
    8:Small size :90×50×34mm(customized)


    Applications:


    1:Railway locomotive monitoring
    2:Ship navigation posture
    3:Radar vehicle platform detection


    Technical Data

    HCA516/526TCONDITIONPARAMETERSUNIT
    Measure range±10±30±60±90°
    Measure axisX / XYX / XYX / XYX / XYAXIS
    Resolution0.0010.0010.0010.001°
    Measure accuracy@25℃0.0050.010.010.02°
    Long term stability0.010.020.050.08°
    Zero Temp.coefficient-40~85℃0.00050.00050.00050.0005°/℃
    Sensitivity temp-coeffi-40~85℃≤50≤50≤50≤100ppm/℃
    Power on time0.50.50.50.5S
    Response frequency20202020Hz
    Output rate5Hz,15Hz,35Hz,50Hz
    output signalRS232/RS485/RS422/TTL/MODBUS
    EMCAccording to EN61000 and GBT17626
    MTBF≥98000hours/times
    Insulation Resistance≥100MΩ
    Shockproof100g@11ms,3 Axial Direction (Half Sinusoid)
    Anti-vibration10grms,10~1000Hz
    Protection gradeIP67
    CablesStandard 1 meter length, wear-resistant, wide temperature, shielded cable 4 * 0.4mm2 aviation connector
    Weight≤250g(without cable)

    Electronic Characteristics


    PARAMETERSCONDITIONSMINSTANDARDMAXUNIT
    Supply voltagestandard9122436V
    customizableOther voltageV
    Working currentNo load50mA
    Operating temp.-40+85
    storage temp.-40+85



    Order Process :

    Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .


    Payment ways :

    T/T, WU or Paypal;


    Delivery methods & Time :

    DHL takes 3-5days , Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;


    Quality Policy :

    We gurantee 1 year in free charge .


    Storage :

    Note usually we don't make any items in stock , samples customize time need around 3-7days .


    Other more information please visit our website : https://www.rioninclinometer.com/
