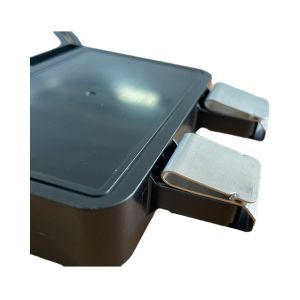

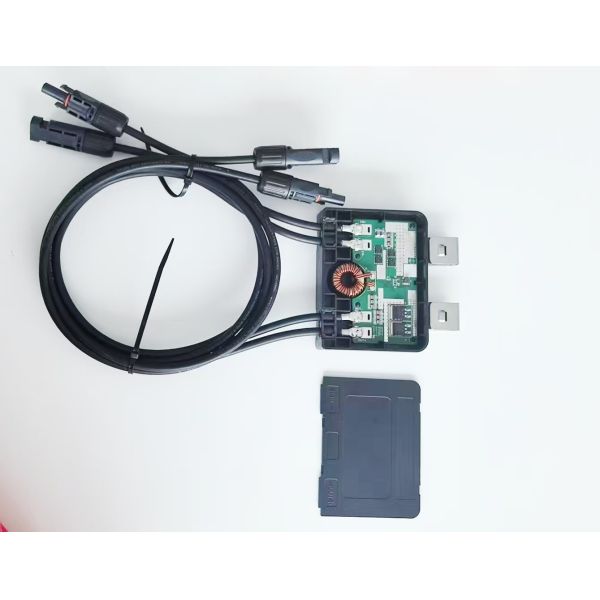

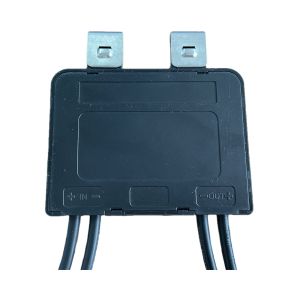

1500 VDC Max PV Module Optimizer with Overcurrent Protection
Product Description:
With a maximum input current of 17A and wire gauge of 4mm2, this
optimizer is capable of handling even the most demanding solar
setups. It also has a maximum input voltage of 62V, ensuring that
it can be used with a wide range of solar panels and systems. One of the standout features of the PV Module Optimizer is its
advanced protection capabilities. With overcurrent and
overtemperature protection built-in, you can rest easy knowing that
your solar panels are safe and secure at all times. This added
layer of protection can help prevent damage to your solar panels
and ensure that you get the maximum lifespan out of each panel.
The PV Module Optimizer is designed to last. With a designed life
of 25 years, you can expect this optimizer to keep your solar
panels running smoothly for years to come. Its durable construction
and reliable performance make it a top choice for anyone looking to
get the most out of their solar energy system.
Overall, if you're looking for a high-quality PV module optimizer
that delivers reliable performance and advanced protection
features, look no further than the PV Module Optimizer. With its
impressive maximum input power, working voltage, and designed life,
this optimizer is a smart investment for any solar energy system.
Features:
- Peak Conversion Efficiency: 99.2%
- Designed Life: 25 Years
- Maximum Input Current: 17A
- Dimensions: 107mm X 105mm X 22mm
- Operating Temperature Range: -40°C To +65°C
Technical Parameters:
| Item | Description |
| Protection Features: | Overcurrent, Overtemperature |
| Maximum Input Power: | 800W |
| Maximum Input Current: | 17A |
| Operating Temperature Range: | -40°C To +65°C |
| Peak Conversion Efficiency: | 99.2% |
| Certifications: | UL, TUV |
| Wire Gauge: | 4mm2 |
| Maximum System Voltage: | 1500 VDC |
| Dimensions: | 107mm X 105mm X 22mm |
| Weight: | 0.5kg |
