    100% New PP Raflux Ring Packing Ring 25mm, 38mm, 50mm For Air Scrubbing

    Ask Lasest Price
    Brand Name : NAIKE CHEMICAL
    Model Number : NK-PPR-001
    Certification : ISO
    Price : depends on quantity
    Payment Terms : L/C, D/P, T/T, Western Union, paypal
    Supply Ability : 300m3 per month
    Delivery Time : 10 days for one 20GP container
    • Product Details
    • Company Profile

    100% New PP Raflux Ring Packing Ring 25mm, 38mm, 50mm For Air Scrubbing

    100% New PP Raflux Ring Packing Ring 25mm, 38mm, 50mm For Air Scrubbing


    Product description


    Plastic Raflux ring is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF). It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60to 150. For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc.


    Physical & chemical properties of plastic random packing


    Performance / MaterialPEPPRPPPVCCPVCPVDF
    Density (g/cm3)0.94-0.960.89-0.91

    0.93-0.94

    1.32-1.441.50-1.541.75-1.78
    Operation Temp.90>100>120>60>90>150
    Chemical corrosion resistanceGoodGoodGoodGoodGoodGood
    Compression Strength(Mpa)>6.0>6.5>7.0>6.0>8.0>10.0

    Plastic Tower Packing Raflux ring Technical data


    Spec.D*H*T (mm)Number per m³Bulk density (kg/m³)Surface area (m²/m³)Free volume (%)F factor (m-1)
    Dg1616*16*1.111200014118891249
    Dg2525*25*1.25350015017590239
    Dg3838*38*1.41580098.011589220
    Dg5050*50*1.5650074.811290154
    Dg7676*76*2.6193070.9739294

    Note: The above data are reference to material PP.


    Package info

    packagevolumevolume/bag
    20GP containerwoven bag25-28m30.1-0.3m3
    40GP containerwoven bag52-55m30.1-0.3m3
    40HQ containerwoven bag60-65m30.1-0.3m3

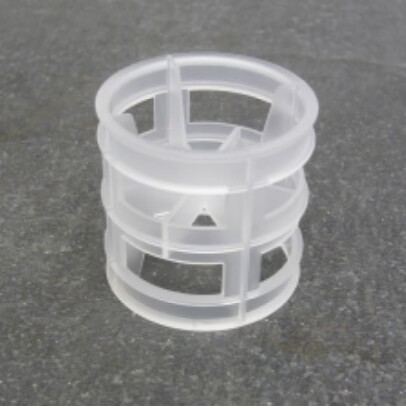

    Product photo



    Plastic Material: 100% virgin PP granules



    Production and shipment


    Other plastic random packing products
