Feature
1.This model rig uses full hydraulic control, and the Top drive to
drive the rotation of drilling tools with very high drilling
efficiency.
2.Reasonable overall layout uses the tractor-mounted or full ground
chassis for transportation with good maneuverability.
3.Very flexible in difficult roads and can be widely used in many
fields such as resource exploration of hydrology wells, coalbed
methane, the shallow layer of shale gas, terrestrial heat, etc, and
can also be used for coal-mine gas exploitation salvage work.
4.The top-mounted driving head principal shaft has a great drift
diameter, suitable for many kinds of construction work such as
slurry drilling, air drilling, and air foam drilling, meeting the
demands for well-drilling at different terrain strata.

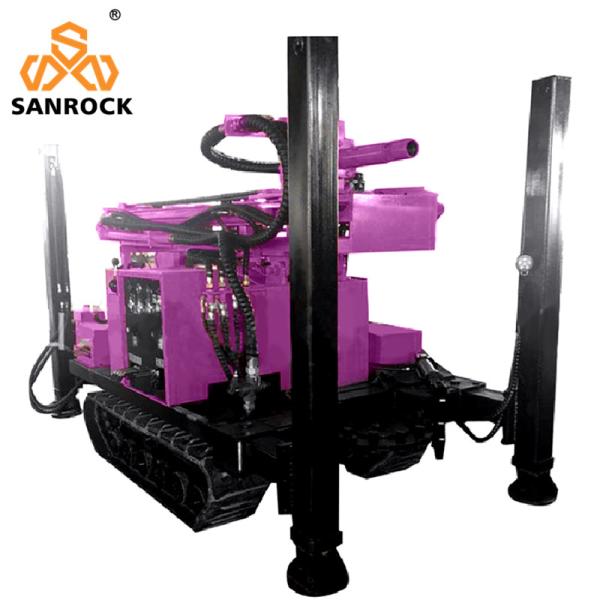

This series of water well drilling machine applicable to drilling
water wells, agricultural irrigation wells, geothermal
air-conditioning wells and well holes of other purposes, especially
applicable to water intake projects in mountain regions and at rock
stratums.
Products Description
| Product name | Water Well Drilling Rig | | Name | Water Drilling Rig | | Power Type | Diesel | | Climbing Ability max | 30° | | Drilling Diameter | 130-254mm | | Drilling Depth | 220m | | Engine model | Yunnei | | Power(w) | 76KW | | Working Pressure | 1.7-3.0Mpa | | Application | water well drilling rig,agrecultural irrigation well | | Drill rod length | 1.5m, 2.0m, 3.0m | | Drill rod diameter | 76mm/89mm | | Travelling speed | 2.5km/h | | Dimension(L*W*H) | 3900*1850*2350mm | | Weight | 4800 KG |
| |
Company Profile
1.What can you buy from us?
DTH drilling rig,core drilling rig,highway pile driver,solar pile
driver ,anchor pile driver,rotary drill rig ,Top Hammer drill
rig,underground jumbo drill rig ,DTH hammer,drill rod,screw air
compressor,water well drilling rig,truck mounted water well
drilling rig,screw air compressor,piston air compressor,pneumatic
rock drill ,drill bit,tricone bit ,spare parts.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or
land shipping. Shipping efficiency depends on country and city you
want to ship to. For small and delicate products, we ship by DHL,
UPS, Fedex or TNT. You can also appoint shipping method you like
before we ship.
4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection
and testing for every order before shipping out.
