Yokohama S-600-5 Rubber Air Spring 276mm Design Height Air Bellows With Waist Ring

    Buy cheap Yokohama S-600-5 Rubber Air Spring 276mm Design Height Air Bellows With Waist Ring from wholesalers

    Buy cheap Yokohama S-600-5 Rubber Air Spring 276mm Design Height Air Bellows With Waist Ring from wholesalers
    • Buy cheap Yokohama S-600-5 Rubber Air Spring 276mm Design Height Air Bellows With Waist Ring from wholesalers
    • Buy cheap Yokohama S-600-5 Rubber Air Spring 276mm Design Height Air Bellows With Waist Ring from wholesalers
    • Buy cheap Yokohama S-600-5 Rubber Air Spring 276mm Design Height Air Bellows With Waist Ring from wholesalers
    • Buy cheap Yokohama S-600-5 Rubber Air Spring 276mm Design Height Air Bellows With Waist Ring from wholesalers
    • Buy cheap Yokohama S-600-5 Rubber Air Spring 276mm Design Height Air Bellows With Waist Ring from wholesalers
    • Buy cheap Yokohama S-600-5 Rubber Air Spring 276mm Design Height Air Bellows With Waist Ring from wholesalers

    Yokohama S-600-5 Rubber Air Spring 276mm Design Height Air Bellows With Waist Ring

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : F-600-5
    Certification : ISO/TS16949, ISO9001
    Price : USD99.9-129.9/PC
    Payment Terms : L/C, T/T, Western Union Or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 3-7 Working Days
    • Product Details
    • Company Profile

    Yokohama S-600-5 Rubber Air Spring 276mm Design Height Air Bellows With Waist Ring

    Yokohama S-600-5 Rubber Air Spring 276mm Design Height Air Bellows With Waist Ring


    OEM Cross Reference:


    GUOMAT Part No.: F-600-5

    YOKOHAMA S-600-5R

    YOKOHAMA S 600 5R

    YOKOHAMA S-600-5

    YOKOHAMA S 600 5

    YOKOHAMA S600-5R

    YOKOHAMA S600-5


    Specifications and Detailed Technical Parameters: F-600-5


    Height H(mm)


    Design Height: 276 mm

    Max. Height: 456mm

    Min Height: 156mm


    Common Maximum Travel(mm): 113mm

    Compression Max. Outside Diameter (mm): 660mm

    Maximum Internal Pressure (MPA): 0.69

    Internal Pressure Failure(MPA): 3.9-4.9


    Model SizeStandard height, approximate value at 0.49MPA internal pressure
    Design HeightMax. HeightEffective Area(cm2)Volume(L)Load(KN)Dynamic Spring Constant(n/mm)Natural Vibration Frequency(Hz)
    S-600-5276456283076.6138.310101.3
    S-600-4218363283059.9138.312851.5
    S-600-3160270283043.2138.317651.8
    S-600-2102172283026.3138.328732.3
    S-600-172122283019.0138.341972.8

    Air Springs For Punching Equipment

    Air springs are a device that uses air as an elastic medium and are widely used in punching equipment. Their main function is to provide smooth support and shock absorption, thereby improving the working efficiency and safety of the equipment.
    The advantages of air springs include:

    Good Shock Absorption Performance: air springs can effectively absorb shock and vibration, protecting equipment and operators.

    Flexible Adjustment: By adjusting the air pressure, the stiffness of the spring can be changed to adapt to different working conditions.

    Strong Durability: air springs usually have a long service life and low maintenance costs.

    When selecting air springs, factors such as their load-bearing capacity, working environment and installation space need to be considered to ensure their optimal performance in punching equipment.

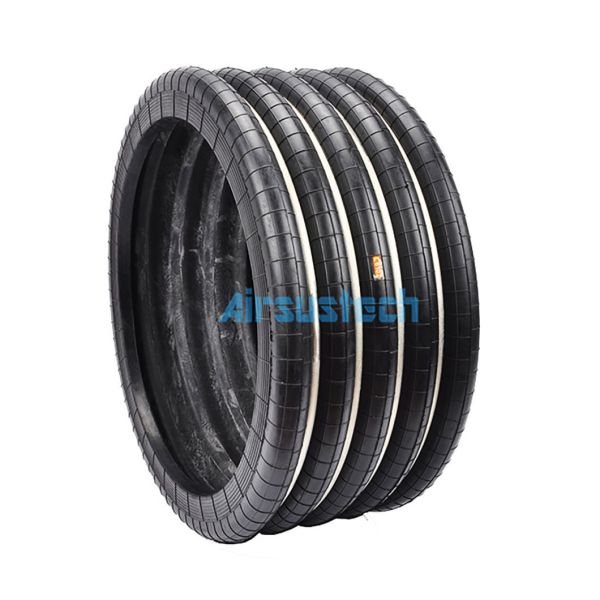

    The related picture of F-600-5

    Yokohama S-600-5 Hydraulic Press Air Spring Penta Convoluted Rubber Bellows
