Titanium heat exchanger tube titanium grade 1 grade 2 OD19mm OD
25.4mm OD38mm 6000mm long
Titanium heat exchanger tube titanium grade 1 grade 2 OD19mm OD
25.4mm OD38mm 6000mm long
1.titanium tube information
TA1 pure titanium tube
Industrial pure titanium is divided into three grades of TA1, TA2
and TA3 according to their impurity content. The gap impurity
elements of these three kinds of industrial pure titanium are
gradually increased, so their mechanical strength and hardness also
increase step by step, but the plasticity and toughness decrease
accordingly.
The industrial pure titanium commonly used in industry is TA2,
because its corrosion resistance and comprehensive mechanical
properties are moderate. TA3 can be used when the requirements for
wear resistance and strength are high. TA1 can be used when better
molding performance is required.
TA1, TA2 and TA3 in the national standard correspond to Gr0, Gr1
and Gr2 in this UNS.
TA1 and TA2 have good low temperature toughness and high low
temperature strength when the iron content ω is 0.095%, the oxygen
content ω is 0.08%, the hydrogen content ω is 0.0009%, and the
nitrogen content ω is 0.0062%. -Low temperature structural
materials below 253 ℃.
TA2 chemical composition: TA2 contains titanium (Ti) balance, iron
(Fe) ≤0.30, carbon (C) ≤0.10, nitrogen (N) ≤0.05, hydrogen (H)
≤0.01 5, oxygen (O) ≤0.25.
Titanium alloy is an alloy composed of titanium added with other
elements. Titanium has two kinds of heterogeneous crystals: below
882 ℃ is a close-packed hexagonal structure α titanium, above 882 ℃
is a body-centered cubic β titanium.
Alloying elements can be divided into three categories according to
their influence on the phase transition temperature:
①The elements that stabilize the α phase and increase the phase
transition temperature are α stable elements, including aluminum,
carbon, oxygen and nitrogen. Among them, aluminum is the main alloy
element of titanium alloy, which has a significant effect on
improving the normal temperature and high temperature strength of
the alloy, reducing the specific gravity, and increasing the
elastic modulus.
②The element that stabilizes the β phase and lowers the phase
transition temperature is the β stable element, and can be divided
into two types: isomorphic and eutectoid. The former has
molybdenum, niobium, vanadium, etc .; the latter has chromium,
manganese, copper, iron, silicon, etc.
③The elements that have little effect on the phase transition
temperature are neutral elements, such as zirconium and tin.
Oxygen, nitrogen, carbon and hydrogen are the main impurities of
titanium alloys. Oxygen and nitrogen have greater solubility in the
α phase, which has a significant strengthening effect on titanium
alloys, but reduces the plasticity. Generally, the content of
oxygen and nitrogen in titanium is 0.15 to 0.2% and 0.04 to 0.05%,
respectively. The solubility of hydrogen in the α phase is very
small. Too much hydrogen dissolved in the titanium alloy will
produce hydride and make the alloy brittle. Usually the hydrogen
content in titanium alloy is controlled below 0.015%. The
dissolution of hydrogen in titanium is reversible and can be
removed by vacuum annealing.
Titanium alloy has high strength and low density, good mechanical
properties, good toughness and corrosion resistance. In addition,
the titanium alloy has poor process performance and is difficult to
cut. In hot working, it is very easy to absorb impurities such as
hydrogen, oxynitride and carbon. There is also poor abrasion
resistance and complicated production process. The industrial
production of titanium began in 1948. The need for the development
of the aviation industry has enabled the titanium industry to grow
at an average annual growth rate of about 8%. The world's annual
output of titanium alloy processed materials has reached more than
40,000 tons, and there are nearly 30 types of titanium alloys. The
most widely used titanium alloys are Ti-6Al-4V (TC4), Ti-5Al-2.5Sn
(TA7) and industrial pure titanium (TA1, TA2 and TA3).
Titanium is a new type of metal. The performance of titanium is
related to the content of impurities such as carbon, nitrogen,
hydrogen, and oxygen. The purity of titanium iodide does not exceed
0.1%, but its strength is low and its plasticity is high. The
properties of 99.5% industrial pure titanium are: density ρ = 4.5g
/ cubic centimeter, melting point 1725 ℃, thermal conductivity λ =
15.24W / (mK), tensile strength σb = 539MPa, elongation δ = 25%,
cross section Shrinkage ψ = 25%, elastic modulus E = 1.078 ×
105MPa, hardness HB195.
high strength
The density of titanium alloy is generally about 4.51g / cubic
centimeter, which is only 60% of steel. The density of pure
titanium is close to that of ordinary steel. Some high-strength
titanium alloys exceed the strength of many alloy structural
steels. Therefore, the specific strength (strength / density) of
titanium alloy is much greater than other metal structural
materials, and parts with high unit strength, good rigidity and
light weight can be produced. Titanium alloys are used for aircraft
engine components, skeletons, skins, fasteners, and landing gear.
High thermal strength
The use temperature is several hundred degrees higher than that of
aluminum alloy. It can still maintain the required strength at
moderate temperature. It can work for a long time at a temperature
of 450 ～ 500 ℃. These two types of titanium alloys are still very
high in the range of 150 ℃ ～ 500 ℃. Specific strength, while the
specific strength of aluminum alloy at 150 ℃ significantly
decreased. The working temperature of titanium alloy can reach 500
℃, aluminum alloy is below 200 ℃.
Good corrosion resistance
Titanium alloys work in humid atmosphere and seawater media, and
their corrosion resistance is far superior to stainless steel; they
are particularly resistant to pitting, acid corrosion, and stress
corrosion; organic materials such as alkali, chloride, chlorine,
nitric acid, and sulfuric acid Etc. have excellent corrosion
resistance. However, titanium has poor corrosion resistance to
media with reducing oxygen and chromium salts.
Good low temperature performance
Titanium alloys can still maintain their mechanical properties at
low and ultra-low temperatures. Titanium alloys with good low
temperature performance and extremely low interstitial elements,
such as TA7, can maintain a certain plasticity at -253 ℃.
Therefore, titanium alloy is also an important low-temperature
structural material.
Great chemical activity
Titanium is chemically active and produces strong chemical
reactions with O, N, H, CO, CO2, water vapor, ammonia, etc. in the
atmosphere. When the carbon content is greater than 0.2%, hard TiC
will be formed in the titanium alloy; when the temperature is high,
the TiN hard surface layer will be formed when it interacts with N;
above 600 ℃, titanium absorbs oxygen to form a hardened layer with
high hardness ; Increased hydrogen content will also form a brittle
layer. The depth of the hard and brittle surface produced by
absorbing gas can reach 0.1 ～ 0.15 mm, and the degree of hardening
is 20% ～ 30%. Titanium also has a large chemical affinity, which
tends to cause adhesion to friction surfaces.
Titanium tubes implement two national standards according to
different requirements and performance: GB / T3624-2010GB /
T3625-2007 ASTM 337 338
Supply grades: TA0, TA1, TA2, TA3, TA9, TA10, BT1-00, BT1-0, Gr1,
Gr2
| Name | Pure Titanium & Titanium Alloy Tube /Pipe/Tubing |
| Tube Shape | Round |
| Material | Gr1,Gr2 |
| Standard | ASTM B338 |
| SMLS Or Welded | Seamless(SMLS) |
| OD | 19mm (1.25")/ 25.4mm, 38mm |
| Wall Thickness | 1.2mm |
| Length | 6m long |
| End | Plain End, Beveled End, Threaded |
| Certificate | EN 10204/3.1B,
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report---TUV,BV,SGS etc |
| Application | Chemical Equipment
Sea Water Equipment
Heat Exchangers
Condensers
Pulp and Paper Industry |
| Grade | N(%) | C(%) | H(%) | Fe(%) | O(%) | Ti | Other , max |
| 1 | ≤0.03 | ≤0.08 | ≤0.015 | ≤0.20 | ≤0.18 | Bal | ≤0.4 |
| 2 | ≤0.03 | ≤0.08 | ≤0.015 | ≤0.30 | ≤0.25 | Bal | ≤0.4 |
| Grade | Tensile Strength(min) | Yeild Strength(0.2% offset)) | Elongation(%) |
| ksi | MPa | Min | Max |
| Ksi | Mpa | Ksi | Mpa |
| 1 | 35 | 240 | 15 | 140 | 45 | 310 | ≥24 |
| 2 | 60 | 400 | 40 | 275 | 65 | 450 | ≥20 |
ASTM B338 titanium tube
Used:Heat exchanger, condenser and various pressure vessels
Wall thickness:0.5mm to 4.5mm
Length:3000mm /6000mm and longger to 9000mm
Outside Diameters:10mm to 114mm
Wall thickness tolerance: +/- 10%
Length tolerance: +3.2mm

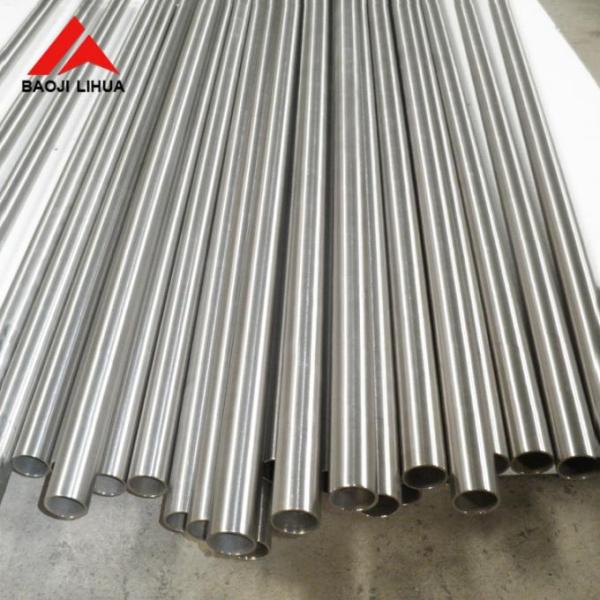

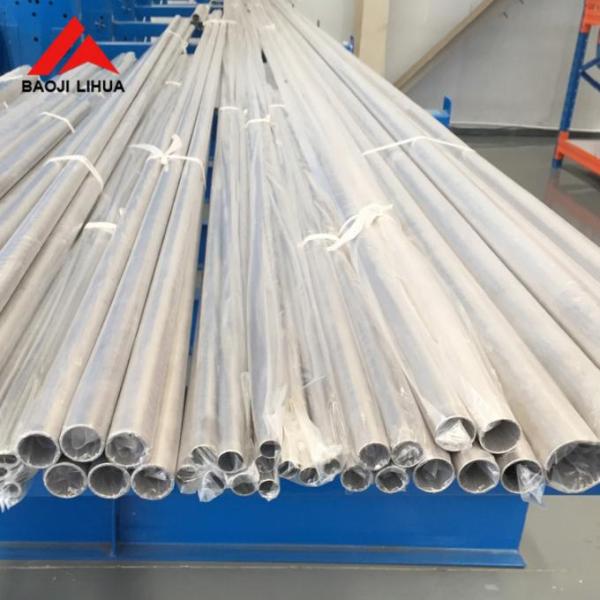

2.titanium tube photo
