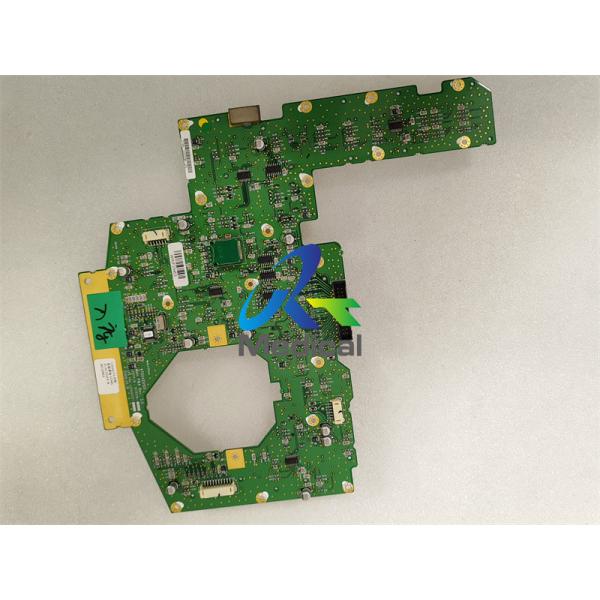

GE LOGIQ P5 Control Panel
1.P/N: 5144537/5175314
2.Pre-owned original one ,in excellent condition
3.We provide 60 days warranty
Various GE/Siemens/Toshiba/Hitachi/ Biosound/Medison Ultrasonic
Boards(Parts) are within our repair/ maintenance range.
Other related GE Ultrasonic Parts we can provide:
| Brand | System | Description |
| GE | Logiq P3 | Probe Connector board 3PP 5314411-3 |
| GE | Logiq P3 | Numeric Keyboard 5315106 |
| GE | Logiq A5 | Syscon board 5177270 |
| GE | Logiq V3 | MST PWA board 5599379 |
| GE | Logiq V5 | monitor |
| GE | Logiq P5 | APS High voltage power supply 5140505/ 5166108/5329667 |
| GE | Logiq P5 | SYSCONPM 5177848-3 |
| GE | Logiq P5/P6 | Trackball TAS4725N /5144543-3 |
| GE | Logiq P5 | CTX Assy(Launch board) PN :5140493 Rev 2 |
| GE | Logiq P5 | PMSOM board(P/N:5178410-2) |
| GE | Logiq P5/P6 | contral board(P/N: 5144536/5252253) |
| GE | Logiq P5 | P3RLY
(P/N:5144579/5140497) |
| GE | Logiq P5 | 4D motor driver board 5391434 |
| GE | Logiq P5 | CL1TRX ASSEMBLY 5144578 / 5140492 |
| GE | Logiq P5 | CPU mainboard 5168431 |
| GE | Logiq P5 | LCD monitor 5140510 / 5172043 |
Knowledge Point
About GE Logiq P5 Control Panel
The Control Panel of GE LOGIQ P5 is an important part of the
ultrasound diagnostic instrument. It provides an interface for
users to interact with the equipment, allowing doctors or operators
to set examination parameters, control image display, select
probes, etc. Although there is no direct detailed specification or
structural description of the Control Panel of GE LOGIQ P5, we can
infer its possible functions and features based on the
characteristics of the control panel of a general ultrasound
diagnostic instrument.
- The Control Panel of GE LOGIQ P5 may include the following basic
elements and functions:
1.Display screen: used to display ultrasound images and examination
parameters to help doctors observe and analyze patient conditions.
The display screen usually has high resolution and adjustable
brightness and contrast to adapt to different examination
environments and needs.
Buttons and knobs: There are a large number of buttons and knobs on
the control panel to control various functions of the device. These
buttons and knobs may include:
2.Power switch: used to turn the device on or off.
Probe selection key: allows users to select different probes to
adapt to different examination sites.
Imaging mode selection key: such as B mode (brightness mode), M
mode (motion mode), D mode (Doppler mode), etc., used to select
different imaging modes.
3.Parameter adjustment keys: used to adjust image gain, depth,
focus and other parameters to obtain the best image quality.
Freeze/Store key: used to freeze the current image or store
important images for subsequent analysis.
Other function keys: such as measurement keys (used to measure
distance, area, etc.), annotation keys (used to add annotations to
the image), etc.
4.Touch screen: The control panel of some modern ultrasound
diagnostic instruments may also be equipped with a touch screen,
making the operation more intuitive and convenient. The touch
screen can be used to select menu items, adjust parameters,
annotate images, etc.
Trackball or mouse: In some designs, the control panel may also
include a trackball or mouse for more precise operation and
selection on the screen.
5.Emergency stop button: In some cases, the control panel may also
be equipped with an emergency stop button to quickly cut off the
power supply of the equipment or stop the inspection process in an
emergency.
We provide professional ultrasonic plate repair services.10+years
of professional maintenance service team.
If you need any product, please feel free to contact us.
