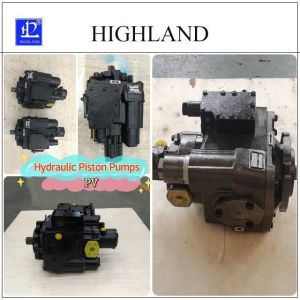

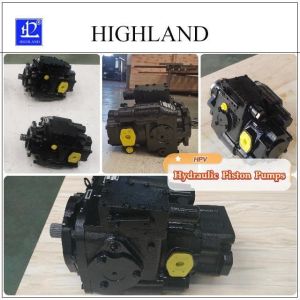

HPV110-MA-R-23 Cast Iron Hydraulic Piston Pump With 42 MPA Max
Pressure For Combine Harvester
Product Description:
With a maximum pressure of max pressure 42 MPA, Highland hydraulic
pump is perfect for use in combine harvesters and other
agricultural machinery. Whether you're loading manually or using
other loading modes, Highland hydraulic pump is designed to deliver
the power and performance you need to get the job done.
When you choose our hydraulic piston pump, you're choosing a
product that has been engineered to meet the highest standards of
quality and reliability. We stand behind our products and are
committed to providing our customers with the best possible service
and support.
Ordering is easy - simply place your order for one set or more of
our HPV110 hydraulic pump and we'll take care of the rest. We offer
competitive pricing, fast shipping, and a satisfaction guarantee on
all of our products.
Features:
- Product Name: Hydraulic Piston Pumps
- Usage: Combine Harvester Etc Agricultural Machinery
- Minimum Order: 1 Set
- Standard Or Nonstandard: Standard
- Loading Mode: Manual Loading
- Model: HPV110-MA-R-23 Hydraulic Pump
Looking for a reliable piston pump for sale ? Look no further than our top-quality hydraulic piston pumps . Highland hydraulic piston pumps are perfect for use in combine
harvesters and other agricultural machinery. With a minimum order
of just one set, you can get the standard-quality hydraulic piston
pump you need for your machinery. Loading is easy with our manual
loading design. Order the hydraulic piston pump HPV110-MA-R-23 model today!
Technical Parameters:
| Model | HPV110-MA-R-23 Hydraulic Pump |
| Medium | Hydraulic Oil |
| Max Displacement | 110 ml/r |
| Standard Or Nonstandard | Standard |
| Power Source | Hydraulic |
| Loading Mode | Manual Loading |
| Max Pressure | 42 MPA |
| Usage | Combine Harvester Etc Agricultural Machinery |
| Minimum Order | 1 Set |
| Material | Cast Iron |
| HPV Series Technical parameter |
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 |
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed
(Full load condition) | r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 |
| Min continuous working speed | r/min | 500 |
| Pressure | Rated working pressure | Mpa | 35 |
| Max working pressure (transient) | Mpa | 42 |
| Continuous working pressure | Mpa | 30 |
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
| Torque | Continuous output torque
(Under continuous working pressure) | Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 |
| Temperature | Allowable shell temperature | ℃ | 80 |
| Max working temperature of oil tank | ℃ | 70 |
| Weight | HPV series hydraulic pump hydraulic oil emptying | kg | 45 | 46 | 63 | 64 | 82 | 88 |
HMF series hydraulic motor hydraulic oil emptying | kg | 30 | 30 | 36 | 36 | 36 | 38 |
Applications:
With a power source of hydraulic, Highland high pressure piston
pump has a max displacement of 110ml/r. Its loading mode is manual
loading, making it easy to use and operate. It is perfect for use
in combine harvesters and other agricultural machinery.
Don't settle for anything less than the best. HIGHLAND
HPV110-MA-R-23 hydraulic piston pump is a top-of-the-line product
that is sure to meet all your needs. Its minimum order quantity is
5 sets and it is priced between USD900-1400 per set. It comes
packaged in a sturdy plywood case and has a delivery time of 10
working days.
Payment terms include T/T and Western Union, and the supply ability
is 200 sets per month. So why wait? Order HIGHLAND HPV110-MA-R-23
hydraulic piston pump today and experience the difference!
Highland after-sale service:
Quality service
One to one service, can provide design and installation solutions;
Online service for quick response and consultation;
Free door-to-door service to solve difficult after-sales problems;
Axial piston hydraulic pump has the advantages of simple structure,
small size, light weight, low noise, and long service life.
Fast delivery and good service
A number of invention patents and utility model patent
certification, the key components of imported raw materials; Order
7 ~ 20 days fast delivery, 1 year after sales maintenance cycle,
for your risk.
FAQ:
Q: What is the brand name of the hydraulic piston pump?
A: The brand name is HIGHLAND.
Q: What is the model number of the hydraulic piston pump?
A: The model number is HPV110-MA-R-23.
Q: Where is the hydraulic piston pump manufactured?
A: The hydraulic piston pump is manufactured in CHINA DEZHOU.
Q: Is the hydraulic piston pump certified?
A: Yes, the hydraulic piston pump has a PATENT CERTIFICATE.
Q: What is the minimum order quantity for the hydraulic piston
pump?
A: The minimum order quantity is 5 sets.
Q: What is the price range for the hydraulic piston pump?
A: The price range is USD900-1400 per set.
Q: What is the packaging details for the hydraulic piston pump?
A: The hydraulic piston pump is packaged in a Plywood Case.
Q: What is the delivery time for the hydraulic piston pump?
A: The delivery time is 10 working days.
Q: What are the payment terms for the hydraulic piston pump?
A: The payment terms are T/T and Western Union.
Q: What is the supply ability of the hydraulic piston pump?
A: The supply ability is 200 sets per month.
Tags: hydraulic piston pump, HPV110-MA-R-23, 42MPA hydraulic piston
pump
