Aluminum Honeycomb Continuous Sandwich Honeycomb Composite Board
Machine
1. Descriptions:
The continuous sandwich honeycomb aluminum composite board
production line enters the pre composite state after being pressed
into the core board thickness by the front rolling mill; Then, the
polymer adhesive film and the heated upper and lower aluminum coils
are pre bonded and transferred onto the mirror wheel assembly. The
five layers simultaneously enter the roller of the forming and
leveling composite machine, and undergo pre mixing, hot rolling,
cold rolling, cooling forming, and fixed length cutting to form a
sandwich type composite plate.
The sandwich shaped composite board can be automatically clamped by
the cutting machine through the feedback signal of the fixed length
sensor, and move synchronously in the transportation direction.
After cutting, it automatically returns to its original position,
effectively improving production efficiency.
Continuous Sandwich Honeycomb Board Production Line Equipment
components:
| Item | Name | QTY |
| 1 | Core Connection Platform | 1Set |
| 2 | Honeycomb core stretching platform | 1Set |
| 3 | Platform | 1Set |
| 4 | Pre compounding machine | 1Set |
| 5 | Oven | 2Set |
| 6 | Composite machine 1 & 2 | 2 sets, 2groups |
| 7 | Composite machine 3 | 2 sets, 4 groups |
| 8 | Aluminum coil unwinding machine (2 units each) | 4Set |
| 9 | Cooling machine | 1Set |
| 10 | Protective film laminating machine | 1Set |
| 11 | Vertical sawing machine | 1Set |
| 12 | 3 sets of synchronous drive machines | 1Set |
| 13 | Horizontal sawing machine | 1Set |
| 14 | Rear platform | 1Set |
| 15 | manipulator | 1Set |
| 16 | Mobile car | 2Set |
| 17 | Production line electrical cabinet | 1Set |
| 18 | Main console | 1Set |
| 19 | Sawing operation table | 1Set |
| | |
2. Specifications of Continuous Sandwich Honeycomb Board Production
Line Continuous Production Line:
| Color | Orange (color can be customized according to customer requirements) |
| Power supply | 380V, III, 50HZ |
| Air pressure | pressure | 5~6KGF/CM2 |
| Gas consumption | 1.0~1.2M3/MIN |
| Industrial Water | pressure | 1-4KG/CM2 |
| Water volume | 0.5-1.5M3/H |
| Size | 60M×2.4M×4.8M (L×W×H) |
| Factory requirements | 80M×20M×10M (L×W×H) (Min.) |
| Total weight | 60T |
| Production line operation direction | From left to right, from right to left (according to the actual
needs of the customer), need to 4~6workers |
3. Continuous Sandwich Honeycomb Board Production Line Continuous
Production Line has several advantages:
Low running resistance
No deformation
Uniform temperature
High production efficiency
Saves labor
Reduces material waste.
4. Applications Of Continuous Sandwich Honeycomb Board Production Line Continuous
Production Line :
It is suitable for aluminum honeycomb panel, Honeycomb board
continuous production line.
5. Quality control:
A very technical engineering team. The general manager has worked
in the Netherlands. The core technologies are introduced from the
Netherlands. Others are very young and have more than 5 years of
practical experience.
Strict QC team: 8 people are responsible for honeycomb panel
equipment of quality control of parts, processing, testing,
packaging, etc.
6. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, was founded in 1957. It
is the world's leading professional manufacturer of honeycomb
materials. Since it' s established, the company has been committed
to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was
using honeycomb panel as the solution, such as truck body, laser TV
/ projection screen etc.

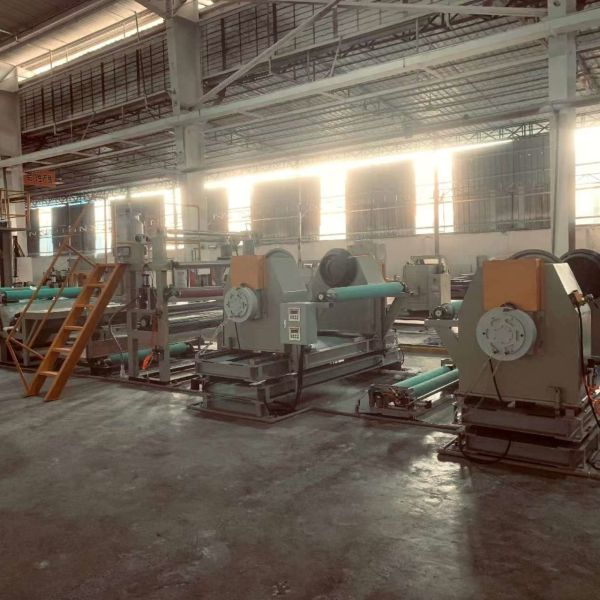

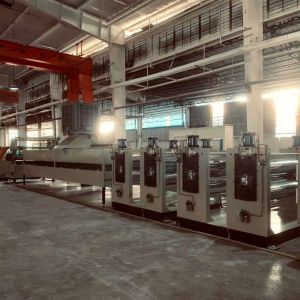

7. Production picture of Continuous Sandwich Honeycomb Board
Production Line
8. FAQ
Q1. What is aluminum honeycomb panel continuous production line
honeycomb panel equipment usd for?
A: The aluminum honeycomb panel continuous production line has been
widely used in aluminum honeycomb panel.
Q2. What are the advantages of aluminum honeycomb panel continuous production line honeycomb panel equipment?
A:The aluminum honeycomb panel continuous production line honeycomb panel equipment is high efficiency and low cost.
Q3. What is the packaging method of aluminum honeycomb panel continuous production line?
A: Packed in plywood cases with wrapping film
