Ultrasonic Parts Of Paver Machine Materials Level Gauge Paver Parts

Slipform Paver Parts with Ultrasonic System for Accurate Material Control

product description

A level gauge is a device used by road construction equipment to detect and control the height of material levels. Mainly used in the material distribution control of pavers. By using an ultrasonic system to detect materials, the response is sensitive and the control accuracy is high, which can effectively save materials. As it is a non-contact detection, there is no wear or adhesion, and the service life is extended.

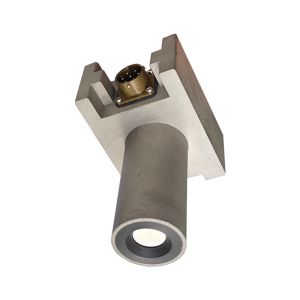

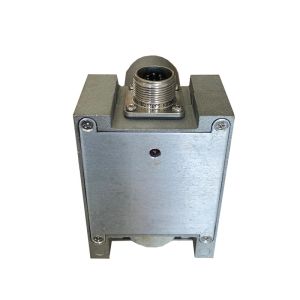

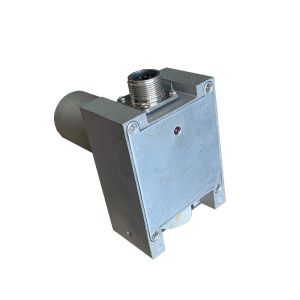

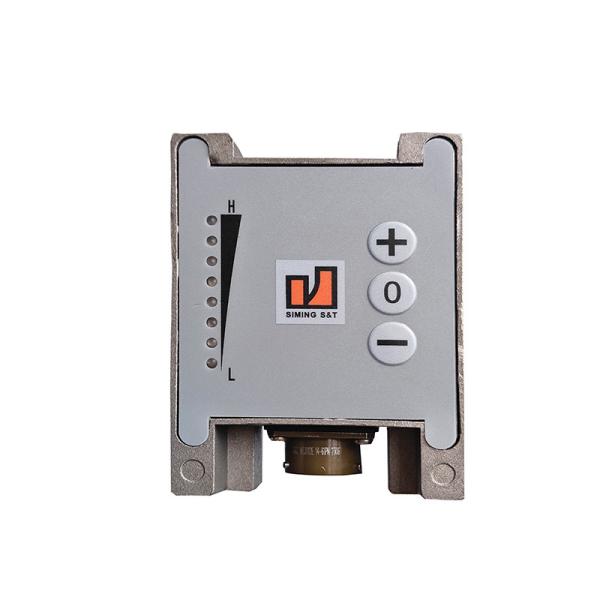

TYP89 level gauge is a CAN communication output level gauge with CAN bus design, ensuring superior anti-interference performance.

TYP89 CAN type level gauge can be applied to Vogele 1900-2, Vogele 2100-3L and other Vogele pavers. The level gauge is an asphalt paver with CAN communication.

Working principle

The instrument mainly includes three parts: ultrasonic transducer (commonly known as ultrasonic sensor or probe), microcomputer, and peripheral circuit. The microcomputer collects the transmission time of ultrasonic waves in the air, calculates the height of asphalt and other materials in real time, and outputs control signals to the paving machine equipment to control the speed of the mixing cage and achieve the purpose of controlling the height of materials.

Technical Parameters

Siming company is the first manufacturer in China for series concrete slip form paver which includes four-crawler type SMC-6600,SMC-6500; three crawler type SMC-5500,SMC-5000; one crawler type SMC523,and extruder SMC450. The slipform pavers are applied to on site pouring many types of concrete structures such as road, sidewalk, curb&gutter, gutter, barrier¶pet etc. Compared with traditional precast method, our machines are featured with high operation speed( max paving speed to 15m/min), high strength, good shaping, low cost and high efficiency etc. For more information, please visit our website www.simingcn.com or email to market@simingcn.com
