| Brand Name : | KRONZ |
| Model Number : | H7805M-9/R |
| Certification : | CE |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union, MoneyGram |
| Supply Ability : | 100000 pieces per month |
| Delivery Time : | 5-8 working days |

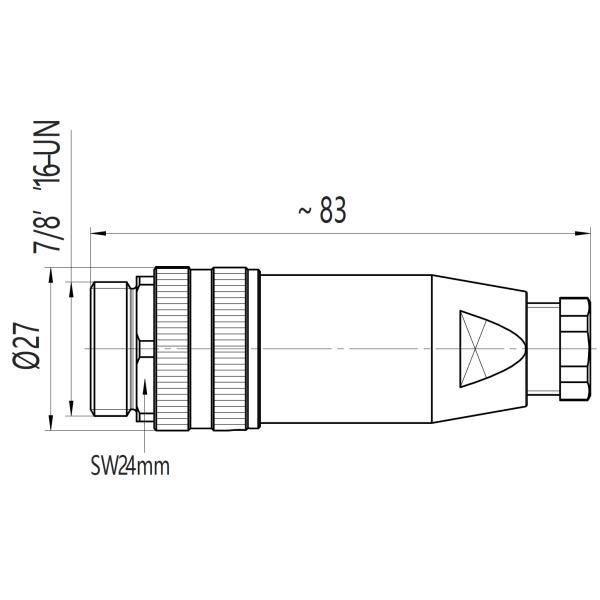

7/8" Connector Field-wireable Assembly Connector 5 Pin A Code Male
The 7/8" field-wireable assembly connector is a specific connector type that has 4 or 5 wire receptacles, and the connector is 7/8" in diameter. This kind of connector is usually used in situations where high electrical performance and reliable connection are required, such as industrial automation, machinery manufacturing and other fields.


| Thread type | 7/8”-16UN |
| Contact nut material | Zinc alloy, nickle-plated |
| Contact surface material | Brass, gold-plated |
| Contact carrier material | PA, black |
| Housing material | PBT/PA, black |
| Seal material | FPM/FKM |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Pollution degree | 3 |
| Ambient temperature | -25~+85℃ |
| Mating cycles | >100 |
| Degree of protection | IP67 |
| Pin assignment | Connection method | Coding | Rated current | Voltage | Cable outlet | External cable diameter | Model No. |
![]() | Screw connection | A | 8A | 600V | Straight | 6-8mm | H7805M-9/R |


|
