    M12 Molded Cable Connectors With A Coding 5 Pin Plug Sensor IO Power Cord

    Ask Lasest Price
    Brand Name : KRONZ
    Model Number : M1205MA-2/P00R
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100000 pieces per month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

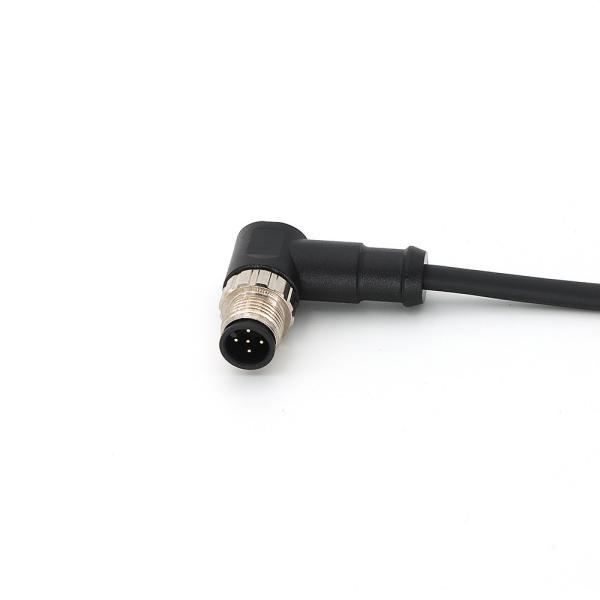

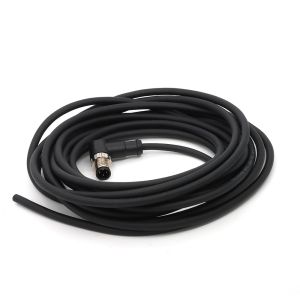

    M12 Molded Cable Connectors With A Coding 5 Pin Plug Sensor IO Power Cord

    M12 Connectors with molded cable codingA 5-pin plug sensor IO power cord


    Product Description


    High quality industrial grade M12 line, choose our advantages: 1. Source factory, affordable price; 2. Bold pure copper wire core; 3. True dual shielded network cable, shielding rate>95%. 4. Brass tin plated fastening screws, nylon injection molded joints.


    Technical Data


    StandardIEC 61076-2-101
    Contact nut materialBrass, nickle-plated
    Contact surface materialBrass, gold-plated
    Contact carrier materialPA, black
    Housing materialTPU, black
    Seal materialFPM/FKM
    Insulation resistance≥100MΩ
    Contact resistance≤5mΩ
    Pollution degree3
    Ambient temperature-25~+85℃
    Mating cycles>100
    Degree of protectionIP67

    Pin assignmentConnection methodCodingRated currentVoltageWire gaugeCable outletLengthModel No.
    1=BN
    2=WH
    3=BU
    4=BK
    5=GY
    A4A60V5×0.34
    (5×22AWG)
    PVC, black
    Angled2MM1205MA-2/P00R
    5MM1205MA-5/P00R
    10MM1205MA-10/P00R
