64GB Ram 8 Lan Firewall Pfsense Micro PC 14th Gen Core Ultra Processor

Ask Lasest Price
Brand Name :	SMATIPC
Model Number :	IEXP-504
Certification :	CCC,CE,ROHS,ISO9001
Price :	Negotiable
Payment Terms :	T/T,Paypal
Supply Ability :	10000 Pcs/Month
Delivery Time :	3-7Days

Add to Cart

Product Details
Company Profile

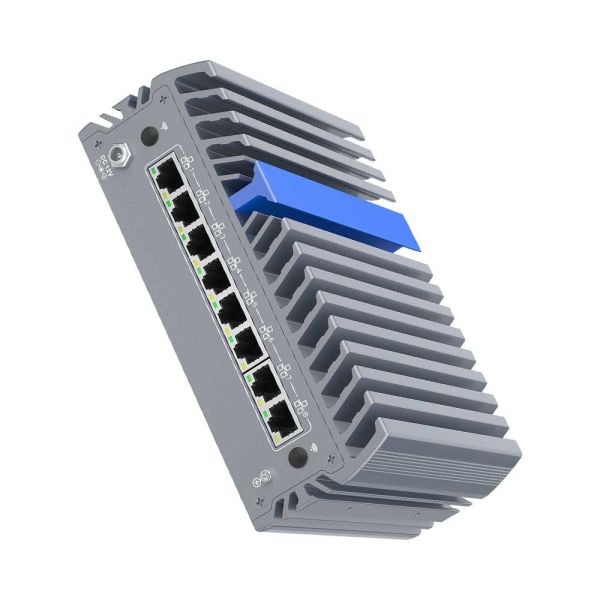

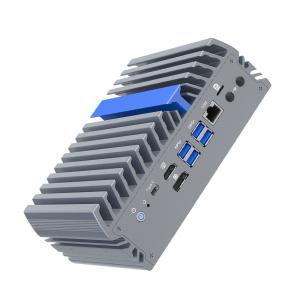

64GB Ram 8 Lan Firewall Pfsense Micro PC 14th Gen Core Ultra Processor

8 Lan Firewall Pfsense Mini PC 14th Gen Core Ultra Processor

Product Description:

Features a powerful 12-core Ultra 7 155U processor for fast performance.Provides 4 x USB 3.0 ports for connecting multiple devices.Allows you to connect to three monitors with 4K resolution.Achieve fast and efficient work,it is ideal for Network Security Monitoring Room.

Technical Parameters:

Parameter	IEXP-504	Storage
Processor	Intel Core Ultra 5 125U	M.2	1 x M.2 2280 M-key slot (NVME (PCIE X4)
	Intel Core Ultra 7 155U	SATA	1 x 3.0 inch SSD slot
Chipset	Meteor Lake -U	Expansion Slots
Memory	2 x DDR5 5600MHz slot,Max 64GB	M.2	1 x M.2 2280 M-key slot(NVME)
Graphics Card			1 x M.2 2230 E-key slot(WIFI,BT)
Graphics Card	Intel Graphics		1 x M.2 2242 B-key slot(compatible with 3052B-key)(USB3.0 protocol,support 4G/5G), external SIM slot
Display	1 x HD-MI
	1x DP	Internal port	2 x USB2.0, 4 pin GPIO optional(Standard shipments do not come with theses interfaces)
	1 x Type-C
Ethernet	8 x Intel 2.5Gbe Ethernet	Dimension	180 x 140 x 66 mm
I/O		Weight	1.65 kg
USB	4 x USB3.2	Installation	VESA, Wall-mounted, Din-rail (optional)
COM	1 x RJ45(support Console)	Environmental
Switch buttons	1 x power switch,1 x Reset button	Operating Temperature	-20℃ to +50℃, Surface air flow
Power supply	1 x DC(5.5 x2.5mm), support 12V input	Operating Humidity	5% to 95% Non-condensing state
Other Function	Power On, Wake on LAN	Application	Firewall,Vpn,Network Server
	Timed start up,PXE startup(0～255level),TPM2.0		Network Security,Router., Etc

Applications:

Operating Temperature -20℃ ～ +50℃, Surface air flow
Operating Humidity 5% ～ 95% Non-condensing state
Application firewall,VPN,network server, Network security,router., etc
Power supply1 * DC(5.5*2.5mm), support 12V input
Other Function Power on when there is electricity, network wake up timed startup,PXE startup(0～255level),TPM2.0
