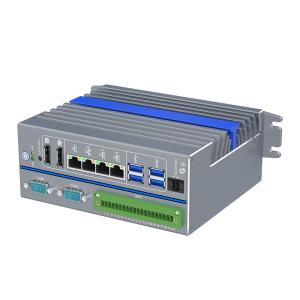

The Core Industrial PC is also designed with a compact form factor,
measuring just 205 X 146 X 50 Mm. This makes it an ideal choice for
industrial desktop applications where space is at a premium.
In addition to its powerful processor and Ethernet connectivity,
the Core Industrial PC also features 4 X USB3.0 ports, which
provide fast and reliable data transfer for a variety of industrial
devices.
Technical Parameters:
| Parameter |
|
| Storage |
| Processor | Intel i5-1235U (10 core 12 threads, Turbo. 4.4 GHz) Intel i7-1255U (10 core 12 threads,Turbo. 4.7 GHz) |
| M.2 | 1x M.2 2280 M-key slot (support SATA SSD & NVME SSD PCEIE 1X ) |
| Chipset | Alder Lake-U |
| MSATA | 1xMSATA |
| Memory | 2xDDR5 4800MHz SODIMM, Max 64 GB |
| Expansion |
| Graphics Card |
| Mini PCIE | 1xfull-length Mini PCIe slot (support PCIE & USB2.0 signal,
4G/WIFI/Bluetooth optional), internal Nano-SIM card slot |
| Graphics | Intel(R) Iris(R) Xe Graphics |
|
|
|
| Display | 2xDP(Resolution 7680 x 4320 @60Hz) |
| Dimension |
|
|
| Size | 205 * 146 * 50 mm |
| Network |
| Weight | 1.54 kg |
| Lan Port | 3xIntel i210-AT, 1xIntel i219-LM 1000M Ethernet |
| Installation | Wall-mounted (standard included), Din rail (optional), Desktop
(default support) |
| I/O |
| Environment |
| USB | 4xUSB 3.0 |
| Temperature | -20℃~+60℃, Surface air flow |
| COM | Standard None, Optional 2xCOM (COM1/2 RS232/485) |
| Humidity | 5%~95% Non-condensing state |
| Audio | / |
| Other Function | Power-on, Timing boot, Wake on LAN, PXE boot, watchdog (level
0-255), TPM2.0 security encryption |
| Power Supply |
|
|
|
| Power Supply | 1x4Pin Phoenix terminal power supply, DC 12V~24V wide voltage input |
| Application | Industrial Automation, Medical, Logistics &Transportation,
Warehousing, e-education and other fields. |
Applications:
The SMATIPC IEXP-512 industrial PC comes with dual display support,
allowing users to connect two displays simultaneously. This feature
is especially useful for industrial control applications where
multiple displays are required to monitor processes and analyze
data. The DP resolution of 7680 X 4320 @60Hz ensures high-quality
display output, making it perfect for industrial applications that
require visual clarity.
The SMATIPC IEXP-512 industrial PC is designed to cater to various
industrial scenarios such as machine automation, industrial
control, data acquisition, and other industrial applications that
require high performance and reliability. The product is ideal for
use in harsh industrial environments due to its rugged design and
durability.
In conclusion, the SMATIPC IEXP-512 industrial PC is a
high-performance, reliable, and durable product that is designed to
cater to various industrial needs and requirements. With its Intel
Core i7 12th Gen processor, DDR5 4800 RAM, and dual display
support, it is perfect for industrial scenarios that require high
performance and reliability. Its rugged design and durability make
it ideal for use in harsh industrial environments.
