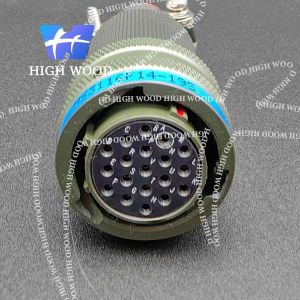

    MS26482 Connector , MS3122E14-4SW,MS3116F14-19S,MS26482 SeriesⅠ

    Ask Lasest Price
    Brand Name : HIGH WOOD
    Model Number : MS3116F14-19S
    Certification : AS9001
    Price : 10$-150$
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100,000pcs per month
    Delivery Time : 2-9weeks
    • Product Details
    • Company Profile

    MS26482 Connector , MS3122E14-4SW,MS3116F14-19S,MS26482 SeriesⅠ

    MS3116F14-19S,MIL-C-26482Ⅰ,MS26482 seriesⅠ
    Datasheets Download: MS26482 I-HW.pdf
    MIL-C-26482 series I circular connector is designed for quick bayonet coupling, solder contact, small size and medium contact density.

    This family of circular connectors is offered 3 kinds of shell of different material, 9 kinds of size Shell, 4 kinds of finishes, 6 plug styles, 18 receptacle-mounting styles, 3 kinds of contact and more than 30 kinds of contact layout.


    Widely used on commercial, military and aerospace systems, etc.


    How to order.
    MS3110E18-32PNL
    Basic series
    Type of shell
    3110 = Wall mounting square receptacle
    3111 = Cable connecting receptacle
    3112 = Box mounting square receptacle
    3114 = Jam nut receptacle
    3116 = Straight plug
    3117 = Thru bulkhead receptacle
    Type
    B = PCB
    E = Grommet seal, conductive shell
    F = Grommet seal, conductive shell with cable clamp
    J = Hermetic cable, conductive shell
    M = Waterproof
    P = Hermetic encapsulation, conductive shell
    R = Without back shell
    Shell size
    08, 10, 12, 14, 16, 18, 20, 22, 24
    Contact layout (see below)
    Contact
    P = Pin
    S = Socket
    Orientation
    N, W, X, Y, Z
    Finish
    Omit = Olive drab cadmium plating
    A = Black anodized
    B = Olive green cadmium plating
    S = Stainless steel passivated
    L = Electroless nickel plating


    Product showing.





    Voltage rating (V)


    Service rating

    Suggested operating voltageTest voltage
    IIIIII
    Sea level600100015002300
    22000 m300450375500

    Contact.

    Contact No.Diameter (mm)Resistance (mΩ)Current (A)
    20 #Φ 1.00≤ 57.5
    16 #Φ 1.59≤ 313.0
    12 #Φ 2.39≤ 223.0
