Product Description:
The fuse element material is available in three options: silver,
copper, and silica, providing the user with flexibility in
selecting the most suitable option for their application. The Solar
PV Fuse is designed to operate at a maximum voltage of 1000VDC and
has a current rating of 32A.
The Solar PV Fuse has a unique 10*38mm gPV design that ensures it
can withstand the high current and voltage levels that are present
in a solar energy system. The fuse is compatible with a DIN rail
solar fuse holder, making it easy to install and maintain.
In addition to solar energy systems, the Solar PV Fuse can also be
used in marine solar systems, making it a versatile component for
various applications.
In summary, the Solar PV Fuse is a reliable and efficient solution
for solar energy systems that require a high level of protection.
Its unique 10*38mm gPV design, compatibility with a DIN rail solar
fuse holder, and suitability for use in marine solar systems make
it a versatile and convenient component for any solar energy
system.
Features:

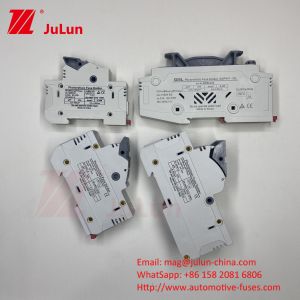

- Product Name: Solar PV Fuse Holder With Fuse
- Breaking capacity: 30kA
- Installation mode: Din Guide Fuse Holder
- Be suitable for: Photovoltaic Bus Box, Photovoltaic Module
Protection
- Fuse Element Material: Silver/Copper/silica/
- TUV CE certified
- Ceramic photovoltaic fuse 10*85 1500DC
- DIN rail solar fuse holder
Technical Parameters:
| Technical Parameters | Values |
|---|
| Standard | IEC60269.6 IEC60947-3 |
| Weight | 20g, 30g, 40g, 50g, 80g |
| Rated Voltage | 500VDC, 1000VDC, 1500VDC |
| Rated Current | 10A, 12A, 15A, 16A, 20A, 25A, 30A, 32A, 40A, 50A, 63A |
| Product Name | Solar PV Fuse Holder With Fuse |
| Installation mode | Din Guide Fuse Holder |
| Fuse Body Material | Ceramic |
| Breaking Capacity | 30kA |
| Working Temperature | -50~105°C |
| Fuse Element Material | Silver/Copper/silica/ |
Applications:
This Solar PV Fuse product is manufactured in China and is made to
the highest standards of quality. It is designed to be used in a
Din Guide Fuse Holder installation mode and is IEC60269.6 and
IEC60947-3 Standard compliant.
The Solar PV Fuse product is rated for high voltage applications
and is available in models such as 10*38mm gPV 1000VDC 32A FUSE,
making it the perfect choice for solar systems that require high
voltage solar fuses.
The Solar PV Fuse product is ideal for use in a variety of product
application occasions and scenarios, including but not limited to:
- Residential solar systems
- Commercial solar systems
- Industrial solar systems
- Utility-scale solar systems
- Solar farms
The Solar PV Fuse product is designed to protect solar systems from
overcurrent and short circuit faults. It is rated for use in DC
circuits up to 1500VDC, making it a versatile and reliable solution
for a wide range of solar applications.
Whether you are looking for a Solar PV Fuse product for your home
solar system or a large-scale solar farm, the SINOPV RLPV JULUN GRT
Solar PV Fuse product is the perfect choice. Its high-quality
construction, reliable performance, and wide range of models make
it the ideal choice for any solar application.
Customization:
Brand Name: SINOPV RLPV JULUN GRT
Model Number: 2A 3A 5A 6A 8A 10A 12A 15A 20A 25A 30A 500VDC 1000VDC
1500VDC 10*38mm 14*51mm 22*58mm 10*85mm 14*65mm 32A 40A 63A
Place of Origin: China
Product Name: Solar PV Fuse Holder With Fuse
Fuse shape: Cylindrical Fuse
Breaking capacity: 30kA
Standard: IEC60269.6 IEC60947-3
Be suitable for: Photovoltaic Bus Box, Photovoltaic Module
Protection
Additional features: TUV CE approved, 10*38mm gPV 1000VDC 32A FUSE,
TUV CE certified
Support and Services:
The Solar PV Fuse is a high-performance fuse designed to protect
photovoltaic (PV) modules and conductors from overcurrent
conditions. It is engineered to meet the rigorous demands of PV
applications and is rated for up to 1500 volts DC to ensure maximum
protection of PV systems.
Our product technical support team is available to assist with any
questions or issues related to the Solar PV Fuse. We offer a range
of services, including:
- Technical specifications and product documentation
- Customized product solutions for unique PV system requirements
- Expert technical support and troubleshooting
- Training and education on the use and installation of the Solar PV
Fuse
- Assistance with product selection and sizing
With our commitment to quality and customer satisfaction, you can
trust the Solar PV Fuse to provide reliable and efficient
protection for your PV system.
Packing and Shipping:
Product Packaging:
- Solar PV Fuse
- Product Manual
- Warranty Card
Shipping Information:
- Ships within 1-2 business days
- Free shipping within the US
- International shipping available for an additional fee
FAQ:
Here are some frequently asked questions about the Solar PV Fuse:
Q: What is the brand name of this product?
A: The brand name of this product is SINOPV RLPV JULUN GRT.
Q: What are the different model numbers available for the Solar PV
Fuse?
A: The available model numbers are 2A, 3A, 5A, 6A, 8A, 10A, 12A,
15A, 20A, 25A, 30A, 500VDC, 1000VDC, 1500VDC, 10*38mm, 14*51mm,
22*58mm, 10*85mm, 14*65mm, 32A, 40A, and 63A.
Q: Where is the Solar PV Fuse manufactured?
A: The Solar PV Fuse is manufactured in China.
Q: What is the maximum voltage rating of the Solar PV Fuse?
A: The Solar PV Fuse is available in three maximum voltage ratings:
500VDC, 1000VDC, and 1500VDC.
Q: What are the dimensions of the Solar PV Fuse?
A: The Solar PV Fuse is available in several different sizes,
including 10*38mm, 14*51mm, 22*58mm, 10*85mm, and 14*65mm.
