    50T Tractor Truck for Heavy Duty Log and Timber Transportation in Forest Reserve

    Ask Lasest Price
    Brand Name : GET VEHICLES | TRAILERBULL
    Supply Ability : 50 Unit/Units per Month
    Price : $15,000.00 - $20,000.00/units
    • Product Details
    • Company Profile

    50T Tractor Truck for Heavy Duty Log and Timber Transportation in Forest Reserve

    Product Paramenters

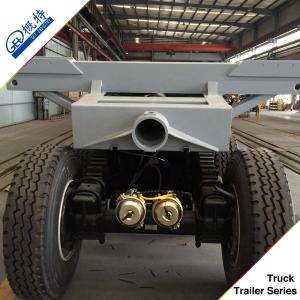

    Huge Log Truck Trailer

    This Log Trailer is designed for the Super Heay and High Diameter Log Delivery from the forest, there are two refitting parts, one is for the Front Pull Tractor Truck , the other is the rear Trailer system. Tractor parts connect with the rear trailer with pipes whcih can work for more than 15m to 30 m.
    Huge Log Truck Trailer
    1. Model Of The Truck Trailers (Oem No.)
    GET.9SP.HLOG.2/50
    This Log Trailer is designed for the Super Heavy and High Diameter Log Delivery from the forest, there are two refitting parts, one is for the Front Pull Tractor Truck , the other is the rear Trailer system. Tractor parts connect with the rear trailer with pipes which can work for more than 15m to 30 m.
    2. General Parameter Of The Log Trailer
    Overall Length
    8 .78 ft
    2,675 mm
    This is just the Size of the Trailer Main Structure
    Overall Width
    8 .37 ft
    2,550 mm
    Overall Height
    5 .25 ft
    1,600 mm
    Tare Weight
    14,340 Ibm
    6,500. kg
    Payload
    110,240 Ibm
    50,000. kg
    Option : Customized to 70T 80T Dumper
    3. Specal Log Pillar System
    U shape Log pillars hold system equipment with Turn Table for the Turning , with Sawteeths at the Cross Beam Holder which Pin Joint with the side pillars to keep the Openning Angle to adjust the loading quantity.
    Specail Designed
    Removeable Side Pillars for Huge Logs
    Left
    Triangle Type 500mm
    Right
    Triangle Type 500mm
    Turn Table for the pillars
    25 Grade for Pillar system rolling
    4. Truck Trailer Chassis Running Gears and Safty Valves
    Trailer Suspension
    32 T Capacity Bogie Suspension with Leaf Spring 16 pcs
    Axles
    150mm (6") Square axles with 13T/15T/16T/20T capacity, 10 HUB piloted hubs with outboard mounting cast steel drum (ABS Options)
    Option : Disc Type
    Manufacturer: FUWA ,Options: BPW,SAF
    Tires
    Tubeless Tires ,13.00R22.5 *8 Sets
    Manufactuter: Double Coin, Triangle, Michelin, Firestone
    Painting
    Electrophoretic spraying, that is, water-based coating, can be dissociated into a water-soluble film-forming material which can form a film in water, and swims to the opposite electrode in a direct current electric field, and precipitates on the surface of the object to form a coating film
    Pulling Tractor truck Refitting
    GET9502LOGT
    1. General Parameter Of The Log Trailer
    Overall Length
    . ft
    Per the Tractor beam
    Overall Width
    8 .37 ft
    2,550 mm
    Overall Height
    5 .25 ft
    1,600 mm
    Tare Weight
    4,410 Ibm
    2,000. kg
    Payload
    110,240 Ibm
    50,000. kg
    Option : Customized to 70T 80T Dumper
    2. Specal Log Pillar System
    U shape Log pillars holde system equipment with Turn Table for the Turning , with Sawteeths at the Cross Beam Holder which Pin Joint with the side pillars to keep the Openning Angle to adjust the loading quantity.
    Specail Designed
    Removeable Side Pillars for Huge Logs
    Left
    Triangle Type 500mm
    Right
    Triangle Type 500mm
    Turn Table for the pillars
    25 Grade for Pillar system rolling
    Cab Protection Frame
    Steel Pipes assemble to the Cab outside to protect the cab in the forest working
    Trailer Couple
    Auto-Couple Hook Type
    Your Benefits

    CUSTOMIZED DESIGN

    3D DESIGNING - CATIA • The optimization for durability calculation and accuracy increasing • Assembly processing display 2D DESIGNING - AUTOCAD • Description, overview and detail calculation of products • Dimension and tolerance display

    BEST STEEL CONSTRUCTION

    Material choose the High strength low alloy steel with 350 mpa yield strength is used for welded I-beam and 235 mpa in other fabricated parts and the original ALCOA aluminum for the tanks and dry logistic box.

    AXLE SYSTEM

    High quality axle from world brand of BPW, SAF TO China Famous brand FUWA, L1 with strong bearing capacity from 9T to 20T and ABS options to fit full demand of requirements.

    SUSPENSION SYSTEM

    High quality suspension from world brand of BPW, SAF TO China Famous brand FUWA, L1, from Leaf-spring plate type, bogie type to Air-Spring type and rubber type to fit different requirements of the cargo delivery condition

    TIRES AND RIMS

    High quality tires from world brand of MICHELIN, BRIDGESTONE, PIRELLI to China Brand DOUBLE COIN, TRI-ANGLE, Coupled with RIMS
    from STEEL to ALUMINUM.

    SAFETY CONTROL SYSTEM

    World brand brake system WABCO Valves with ABS or EBS to keep the trailers under control at any cases.
    Production Workshop
