    30 Ton Crane Scale Hook Load Cell with High Precision and 700±5Ω Output Resistance

    Ask Lasest Price
    Brand Name : Ruijia
    Certification : CE
    Price : USD 355~ 947 /piece
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
    Supply Ability : 2000 Piece/Pieces per Month
    Delivery Time : Within 2Weeks
    • Product Details
    • Company Profile

    30 Ton Crane Scale Hook Load Cell with High Precision and 700±5Ω Output Resistance

    30 ton crane scale hook load cell High precision, strong overload protection capacity and anti-deflective loading

    Feature

    1. Special load cell for Crane Scale

    2. Integral alloy steel

    3. High precision, strong overload protection capacity and anti-deflective loading.

    4. With special ring and hook, easy to install.

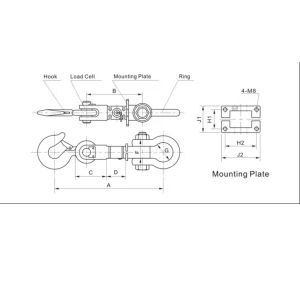

    Dimension

    GSP902 30 ton crane scale hook load cell

    Capacity (T)

    Size: mm

    A

    B

    C

    D

    E

    F

    G

    H1xH2

    J1xJ2

    1-3

    443.0

    260.0

    98.0

    110.0

    56.0

    43.0

    68.0

    60x70

    74x84

    5

    547.0

    303.0

    118.0

    120.0

    68.0

    54.0

    92.0

    65x90

    85x110

    10

    611.0

    325.0

    133.0

    130.0

    80.0

    60.0

    99.0

    76x110

    100x130

    20

    740.0

    354.0

    158.0

    148.0

    106.0

    70.0

    146.0

    80x130

    110x160

    30

    911.0

    436.0

    188.0

    170.0

    102.0

    80.0

    184.0

    96x136

    120x160

    Specifications

    Capacity

    1~30t

    Output sensitivity

    1.5±0.10 mV/V

    Nonlinearity

    ± 0.02%FS

    Repeatability

    ± 0.01%FS

    Hysteresis

    ± 0.02%FS

    Creep

    ± 0.02%FS/30min

    Temperature effect on Output

    ± 0.02%FS/10°C

    Temperature effect on zero

    ± 0.02%FS/10°C

    Zero balance

    ±1.00% F.S

    Input resistance

    765±15Ω

    Output resistance

    700±5Ω

    Insulation resistance

    ≥ 5000 MΩ

    Recommended excitation voltage

    10V (DC/AC)

    Compensated Temperature range

    -10~+50°C

    Operating temperature range

    -20~+60°C

    Safe Overload

    300%FS

    Material

    Alloy steel

    Cable

    φ4*0.5 (1.0)m

    Method of connecting wire

    Red ( Input+ )

    Black ( Input- )

    Green ( Output+ )

    White (Output- )

    Company Information

    Xi'an Ruijia Measuring Instruments Co., Ltd. is a manufacturer of force sensors and related products, dedicated to providing high-quality solutions for various industries. With a commitment to innovation, reliability, and precision, we have established ourselves as a trusted partner for businesses worldwide.
    Founded in 2005, we have accumulated years of experience in the field of weighing technology, enabling us to deliver products tailored to our customers' needs. Our product range includes a comprehensive selection of load cells, weighing modules, controllers, systems, and software solutions. We offer a diverse array of weighing products suitable for industrial automation, logistics, transportation, healthcare, retail, and more.
    At Xi'an Ruijia Measuring Instruments Co., Ltd., we pride ourselves on our technological expertise and dedication to continuous improvement. Our team of skilled engineers is committed to developing innovative solutions that push the boundaries of weighing technology, ensuring our products meet the highest standards of performance and accuracy. We serve a global clientele, catering to diverse market sectors across the globe. Our products are utilized by businesses of all sizes, from small enterprises to multinational corporations, in both domestic and international markets.
    Quality is at the core of everything we do. We adhere to stringent quality control measures throughout the manufacturing process to ensure that our products meet or exceed industry standards. Our commitment to quality has earned us a reputation for reliability and excellence among our customers. Besides, customer satisfaction is our top priority. We offer comprehensive customer service and support, including technical consultation, pre-sales assistance, and after-sales service, to ensure a seamless experience for our clients.
    With a focus on innovation, quality, and customer satisfaction, Xi'an Ruijia Measuring Instruments Co., Ltd. is your trusted partner for all your weighing sensor needs. Contact us today!

    FAQ

    Q: What are the applications of single point load cell/parallel beam load cell?

    A: Platform scale, package scale, animal scale, sorting machine, beehive scale, etc.

    Q:What is the raw material?

    A: Aluminum alloy

    Q: What is the accuracy/precision?

    A: C2 0.03% and C3 0.02%

    Q: What is the wire meaning?

    A: 5 wires (Red: E+, Black: E-, Green: S+, White: S-, Other color: ground)

    Q: How to install?

    A: One side are fixed and the other side are forced.

    Q: What is the load range for single point load cell?

    A: 0.1-1000KG
