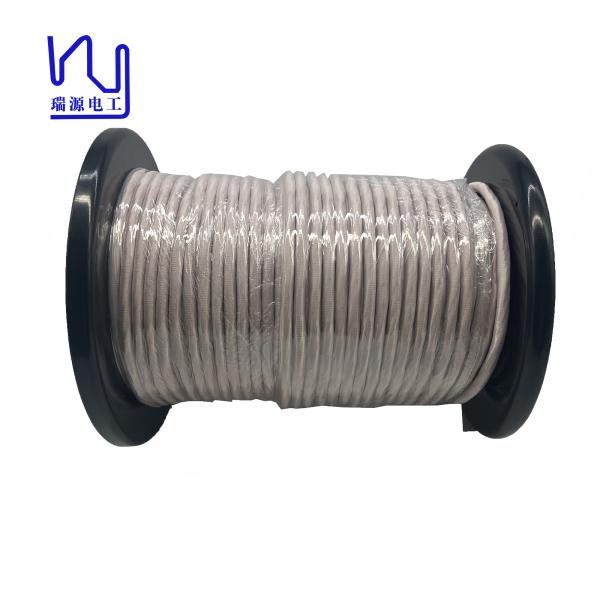

1100V 8125/0.05mm High Frequency Motor Winding Silk Covered Copper
Litz Wire
The large number of strands in this Litz wire ensures enhanced
conductivity and reduced skin effect, making it an excellent choice
for high frequency applications. Its customizable nature allows
custom solutions to meet specific design requirements, providing
engineers and designers with the flexibility to optimize their
electrical systems.
Type Conductor diameter*Strand number | 1USTC-F 0.05*8125 |
Single wire(strand)
| Conductor diameter(mm) | 0.050±0.003 |
| overall diameter (mm) | 0.057-0.086 |
| Thermal Class(℃) | 155 |
Strands construction
| Strands number | 13*5*5*5*5 |
| Pitch(mm) | 78±10 |
| bunching direction | S |
Insulation layer
| Material type | Nylon |
| Material specs(mm*mm or D) | 840 |
| Times of Wrapping | 1 |
| Overlap(%) or thickness(mm),mini | 0.055 |
| Wrapping direction | Z |
Characteristics
| Max O. D(mm) | 8.55 |
| Max pinholes fault/6m | 180 |
| Max resistance (Ω/Km at20℃) | 1.260 |
| Breakdown voltage Mini (V) | 1100 |
