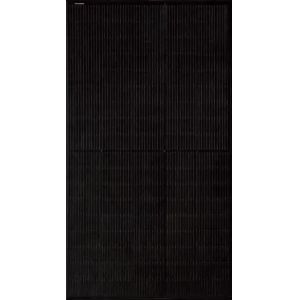

Product Description:
The TOPCON Solar Module Panel features tempered glass, which makes
it highly durable and able to withstand harsh weather conditions.
This glass type is designed to protect the solar cells from
external factors such as hail, wind, dust, and rain, ensuring that
the panel remains efficient throughout its lifespan.
The frame material of the TOPCON Solar Module Panel is made of
anodized aluminum alloy. This material is known for its strength
and durability, making the panel resistant to corrosion and rust.
The aluminum alloy frame ensures that the panel remains stable and
secure, even in extreme weather conditions.
The cell type of the TOPCON Solar Module Panel is monocrystalline.
This cell type is known for its high-efficiency levels, making the
panel capable of producing more electricity in a shorter amount of
time. Additionally, the monocrystalline cells used in the TOPCON
Solar Module Panel are highly efficient, ensuring that the panel
can produce more electricity than other solar panels on the market.
The connector type of the TOPCON Solar Module Panel is MC4. This
connector type is known for its reliability and durability,
ensuring that the panel is secure and able to transfer energy
efficiently. The MC4 connector type used in the TOPCON Solar Module
Panel is also easy to install, making it a great option for
homeowners and businesses looking to install solar power panels
quickly and efficiently.
In summary, the TOPCON Solar Module Panel is a high-quality silicon
solar panel that is designed to provide reliable and efficient
solar energy for 25 years. It features tempered glass, anodized
aluminum alloy frame, monocrystalline cells, and MC4 connector
type, making it a great investment for those looking for a
long-term solar energy solution. Whether you are a homeowner,
business, or organization, the TOPCON Solar Module Panel is a
reliable and efficient option for your solar energy needs.
positive power tolerance of +3%
IEC61 21 5(201 6) , IEC61 730(201 6)
ISO9001 :201 5: Quality Management system
ISO1 4001 :201 5: Environment Manogement system
IS4500l :201 8
occupational Health and safety Manogement systems
Features:
- Product Name: TOPCON Solar Module
- Operating Temperature: -40°C To +85°C
- Frame Material: Anodized Aluminum Alloy
- Efficiency: 21.51%
- Cell Type: Monocrystalline
- Connector Type: MC4
- Type: N TYPE solar panel
- TOPCON solar power panels
SMBB Technology
Better light tropping and current collection to improve module
power output and reliability.
PID Resistance
Excellent Anti - PID Performa nce guarantee via optimized
mass-production process and materials control .
Durability Against Extreme Environmental conditions
High salt mist and ammonia resistance
Hot 2 .O Technology
The N-type module with Hot 2 . 0 technology has better
2 . 0 reliability and lower LID/LETiD
Enhanced MechanicaI Load
certified to withstand: wind load (2400 pascal) and snow load (5400
pascal) .
Applications:
The Sangsolar TOPCON solar system module can operate in a wide
range of temperatures, ranging from -40°C to +85°C. This makes it
suitable for use in extreme weather conditions. The frame material
used in the solar panel is anodized aluminum alloy, which makes it
durable and resistant to corrosion. The connector type used in the
panel is MC4, making it easy to install and connect to other
systems.
The Sangsolar TOPCON solar energy panels can be used in various
applications, including residential, commercial, and industrial
settings. The panels can be used to power homes, schools,
hospitals, and other buildings. They can also be used to power
streetlights and other outdoor lighting systems.
The Sangsolar TOPCON solar energy panels are also suitable for use
in remote and off-grid locations. They can be used to power remote
homes, cabins, and other structures where access to the power grid
is not available. The panels can also be used in RVs and other
mobile homes to provide a source of renewable energy.
The Sangsolar TOPCON solar energy panels come with a 25-year
warranty, ensuring that they will provide a reliable source of
renewable energy for many years to come. The N TYPE solar panel
technology used in the panels ensures high efficiency and better
performance, making them a cost-effective solution for all your
energy needs.
| Mechanical Characteristics |
| Cell Type | 182 N type Mono-crystalline |
| No. of cells | 108 (2×54) |
| Dimensions | 1722×1134×30mm |
| Weight | 22kg |
| Front Glass | 3.2mm,Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Output Cables | TUV 1×4.0mm2 (+): 300mm , (-): 300mm or Customized Length |
| Module Type | GPT54M-415HC | GPT54M-420HC | GPT54M-425HC | GPT54M-430HC | GPT54M-435HC |
| STC NOCT | STC NOCT | STC NOCT | STC NOCT | STC NOCT |
| Maximum Power (Pmax) | 415Wp 312Wp | 420Wp 316Wp | 425Wp 320Wp | 430Wp 323Wp | 435Wp 327Wp |
| Maximum Power Voltage (Vmp) | 31.25V 29.21V | 31.37V 29.34V | 31.49V 29.50V | 31.61V 29.63V | 31.73V 29.75V |
| Maximum Power Current (Imp) | 13.28A 10.68A | 13.39A 10.76A | 13.50A 10.83A | 13.61A 10.91A | 13.72A 10.99A |
| Open-circuit Voltage (Voc) | 37.31V 36.02V | 37.43V 36.20V | 37.55V 36.38V | 37.67V 36.56V | 37.79V 36.74V |
| Short-circuit Current (Isc) | 14.01A 11.29A | 14.12A 11.36A | 14.23A 11.42A | 14.34A 11.49A | 14.45A 11.55A |
| Module Efficiency STC (%) | 21.25% | 21.51% | 21.76% | 22.02% | 22.28% |
| Operating Temperature(℃) | -40℃~+85℃ |
| Maximum system voltage | 1000/1500VDC (IEC) |
| Maximum series fuse rating | 25A |
| Power tolerance | 0~+3% |
| Temperature coefficients of Pmax | -0.29%/℃ |
| Temperature coefficients of Voc | -0.25%/℃ |
| Temperature coefficients of Isc | 0.045%/℃ |
| Nominal operating cell temperature (NOCT) | 45±2℃ |
Support and Services:
TOPCON Solar Module Product Technical Support:
- Assistance with installation and commissioning of TOPCON solar
modules
- Troubleshooting technical issues with TOPCON solar modules
- Recommendations for optimizing the performance of TOPCON solar
modules
- Assistance with warranty claims for TOPCON solar modules
- Access to software updates and technical documentation for TOPCON
solar modules
TOPCON Solar Module Services:
- Customized design and engineering of solar systems utilizing TOPCON
solar modules
- Installation and commissioning of TOPCON solar modules and solar
systems
- Operations and maintenance services for TOPCON solar modules and
solar systems
- Training and support for installers and end-users of TOPCON solar
modules and solar systems
Packing and Shipping:
Product Packaging for TOPCON Solar Module:
- Each module will be packed in a sturdy cardboard box
- Modules will be secured with foam padding to prevent damage during
shipping
- Boxes will be labeled with the product name, quantity, and handling
instructions
Shipping Information for TOPCON Solar Module:
- Modules will be shipped via ground transportation
- Shipping fees will be calculated based on weight and destination
- Customers will receive tracking information once the modules have
been shipped
FAQ:
Q: What is the brand name of this solar module?
A: The brand name of this solar module is Sangsolar.
Q: Where is the Sangsolar module manufactured?
A: The Sangsolar module is manufactured in Beijing, China.
Q: What is the maximum power output of the Sangsolar module?
A: The maximum power output of the Sangsolar module varies
depending on the specific model. Please refer to the product
specifications for more information.
Q: What is the warranty period for the Sangsolar module?
A: The warranty period for the Sangsolar module varies depending on
the specific model. Please refer to the product specifications for
more information.
Q: Can the Sangsolar module be used for residential or commercial
applications?
A: Yes, the Sangsolar module can be used for both residential and
commercial applications.
