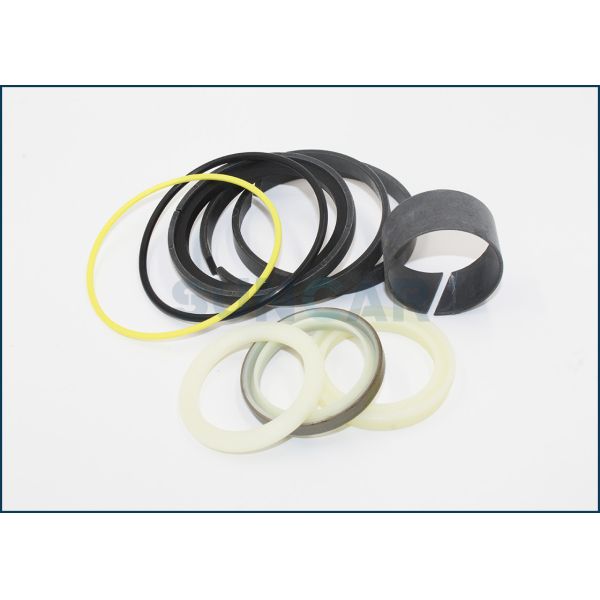

1543275C1 Seal Kit For Case Backhoe Stabilizer Cylinder 1150K 580SK 580SL 580SM 580SM+

Name: 1543275C1 Seal Kit For Case Backhoe Stabilizer Cylinder 1150K 580SK 580SL 580SM 580SM
Brand: SUNCAR
Price: 1 USD

Ask Lasest Price
Brand Name :	SUNCAR
Model Number :	1543275C1 Seal Kit
Price :	Negotiable
Payment Terms :	T/T, Western Union,Alipay,paypal
Supply Ability :	550 Pcs Per Week.
Delivery Time :	3-5 days after payment received(public holiday excluded)

Add to Cart

1543275C1 Seal Kit For Case Backhoe Stabilizer Cylinder 1150K 580SK 580SL 580SM 580SM+

Name	1543275C1 Seal Kit For Case Backhoe Stabilizer Cylinder
Model	150K 580SK 580SL 580SM 580SM+
Part numbers	1543265C1
Type	Cylinder Seal Kit
Pressure	0~60MPa
Temperature	-45℃ +200℃
Speed	15m/s
Medium	Hydraulic oil, fire retardant liquid, water and others
Features	Pressure & Oil Resistant
Material	PTU

Part Numbers of Case Cylinder Service Kits:

Parts on group (580SK):

Pos.	Part No	Qty	Parts name
1	1986804C1	[1]	CYLINDER ASSY.
1	199720A1R	[1]	REMAN-HYD CYLINDER
1	199720A1C	[1]	CORE-HYD CYLINDER
1	1986805C1	[1]	CYLINDER ASSY.
1	199721A1R	[1]	REMAN-HYD CYLINDER
1	199721A1C	[1]	CORE-HYD CYLINDER
2	1986806C1	[1]	HYD TUBE
2	1986807C1	[1]	HYD TUBE
3	D33047	[2]	BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L
. .	G110520	[1]	GLAND
4	NSS	[1]	NOT SOLD SEPARAT
5	D95144	[1]	WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk
6	G101533	[1]	WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk
7	G107923	[1]	SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk
8	G107997	[1]	SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk
9	238-5241	[1]	O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro
10	G32176	[1]	BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk
11	276-2446	[1]	SELF-TAP SCREW,Hex Hd, #8 x 3/8"
12	1978060C1	[1]	PISTON ROD
13	G110522	[1]	PISTON
14	G110531	[1]	SEALING RING,Locking, 109.32mm ID x 104.6mm OD x 6.96mm Thk
15	G110529	[1]	RING
16	G110530	[1]	RING,108mm OD, Ext
17	28-1648	[1]	BOLT,Hex, 1" - 14 x 3", Gr 8
18	G32303	[1]	WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk
19	219-1	[1]	LUBE NIPPLE,1/8" - 27 NPTF
. .	NSS	[1]	NOT SOLD SEPARAT
20	G110519	[1]	CYLINDER END CAP
21	D95144	[1]	WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk
22	G101533	[1]	WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk
23	1542876C1	[1]	SEAL KIT,50.8mm Rod
24	1543001C1	[1]	SEAL
25	1543000C1	[1]	SEAL
26	238-5241	[1]	O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro
27	G32176	[1]	BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk
. .	G110537	[1]	KIT
. .	1543275C1	[1]	SEAL KIT
. .	84155085	[1]	SEAL KIT,Reapir, 108.0 x 50.8
