Introduction
Addressable systems are commonly used in commercial, institutional,
and industrial facilities where the ability to pinpoint alarm
locations is important for rapid response and effective fire
management.
This addressing capability allows the fire alarm control panel to
precisely identify the location of an activated device during an
alarm condition. Rather than just knowing that a fire alarm has
been triggered somewhere in the building, the control panel can
pinpoint the exact device that has been activated.
The core components of an addressable fire alarm system include:

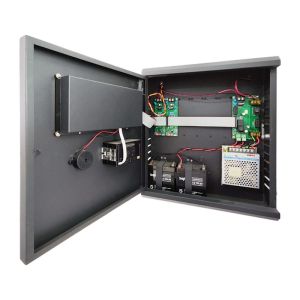

Addressable Fire Alarm Control Panel - The main control unit that
monitors and controls all the system devices.
Addressable Initiating Devices - Things like smoke detectors, heat
detectors, and manual pull stations that have built-in
microprocessors to communicate with the control panel.
Addressable Notification Appliances - Devices like sirens, strobes,
and speakers that are also addressable and can be individually
controlled.
Addressable Modules - Interfaces that allow the system to monitor
and control external equipment like elevators, HVAC systems, and
door locks.
The addressable devices communicate with the control panel using
digital communication protocols like CLIP, MAPNET, or IDNET. This
digital signaling allows for more advanced monitoring, testing, and
diagnosis capabilities compared to older hardwired systems.
Addressable fire alarm systems are commonly used in commercial,
institutional, and industrial facilities where the ability to
quickly identify the precise location of a fire is critical for
life safety and property protection. Their enhanced capabilities
make them a more robust and flexible solution over traditional
systems.
Parameters| Product Name | Addressable Fire Alarm Control Panel | Capacity | 1-1524control points, maximum 6 loops |
| Capacity | Maximum 6 loops | Main power supply | AC220V± 15%, 2.5A, 50HZ. |
| Battery power supply | DC 24V (2 sealed batteries: 2*12V*7Ah) | Loop Bus wired | Non-polarity 2 wired. |
| LCD | Touch panel, Networkable, Colored LCD
| Operating Environment | Temperature -10°C~+50°C
Humidity ≤95%. |
| Dimentions | 400mm×500mm×125mm. | Certification | CE |
Main Functions
1. System self-test function. The system will test indicator light,
LCD screen, sounder etc.
2. Inquiry function. Check model type zone number, device
definition etc.
3. Event record. Record the fire alarm information and other
operation record.
4. Data sampling. Data analysis.
5. Setting function. Set the password, time, printer information.
6. Install and programming. Address coding, Login, Logical
programming
7. Feedback function. Give real-time feedback information after
starting the equipment.
8. Faulty alarm function. Automatically check the working status of
main power supply, battery power supply, detectors , modules and
report the detail fault information.
Product Range
Conventional Fire Alarm System
Addressable fire alarm system
Gas Extinguishing control system
Beam Detector
4 wire smoke detectors with relay output.
2 wire Conventional smoke and heat detectors
Explosion-proof flame detector for fire alarm system
Standalone smoke detectors and combustable gas detector
Service
1. OEM &ODM service.
2. Provide special technical support and after-sale service.
3. 1 year warranty.
4. Normally 15 working days lead time.
5. Welcome sample order.
