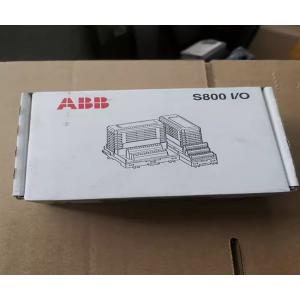

ABB DO802 3BSE022364R1 Digital Output Relay 8 ch Redundant Power Supply Module

    Buy cheap ABB DO802 3BSE022364R1 Digital Output Relay 8 ch Redundant Power Supply Module from wholesalers

    Buy cheap ABB DO802 3BSE022364R1 Digital Output Relay 8 ch Redundant Power Supply Module from wholesalers
    • Buy cheap ABB DO802 3BSE022364R1 Digital Output Relay 8 ch Redundant Power Supply Module from wholesalers
    • Buy cheap ABB DO802 3BSE022364R1 Digital Output Relay 8 ch Redundant Power Supply Module from wholesalers

    ABB DO802 3BSE022364R1 Digital Output Relay 8 ch Redundant Power Supply Module

    Ask Lasest Price
    Brand Name : ABB
    Model Number : DO802 3BSE022364R1
    Certification : Does not supply
    Price : negotiation
    Payment Terms : T/T, Western Union, PAYONEER
    Supply Ability : 10
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

    ABB DO802 3BSE022364R1 Digital Output Relay 8 ch Redundant Power Supply Module

    ABB DO802 3BSE022364R1 Digital Output Relay 8 ch Redundant Power Supply Module


    Description

    The DO802 is an 8 channel 110 V d.c./250 V a.c. relay (NO) output module for the S800 I/O. The maximum voltage range is 250 V and the maximum continuous output current is 2 A. All outputs are individually isolated. Each output channel consists of optical isolation barrier, output state indication LED, relay driver, relay and EMC protection components.

    The relay supply voltage supervision, derived from the 24 V distributed on the ModuleBus, gives a channel signal error and a module warning signal if the voltage disappears. The error signal and warning signal can be read through the ModuleBus. This supervision can be enabled/disabled with a parameter.


    General info

    Article number3BSE022364R1
    TypeDigital Output
    Signal specification24...110 V d.c. / 250 V a.c. (max 2 A)
    Number of channels8
    Signal typeRelay (NO)
    HARTNo
    SOENo
    RedundancyNo
    High integrityNo
    Intrinsic safetyNo
    MechanicsS800L

    Detailed data

    IsolationIndividually isolated, channel-to-channel and to circuit common
    Maximum field cable length600 meters (600 yards)
    Rated insulation voltage250 V
    Dielectric test voltage2000 V a.c.
    Power dissipationTyp. 2.2 W
    Current consumption +5 V Modulebus70 mA
    Current consumption +24 V Modulebus80 mA
    Current consumption +24 V external0
    Supported wire sizeSolid: 0.05-2.5 mm², 30-12 AWG
    Stranded: 0.05-1.5 mm², 30-12 AWG
    Recommended torque: 0.5-0.6 Nm
    Stripping length 6-7.5mm, 0.24-0.30 inch

    Diagnostics

    Front LED’sS(tatus), Channel 1-8 Status
    Supervision24 / 12 V Relay power converter monitor
    Status indication of supervisionModule Error, Module Warning, Channel Error

    Dimensions

    Width86.1 mm (3.4”)
    Depth58.5 mm (2.3”)
    Height110 mm (4.33”)
    Weight

    0.24 kg (0.53 lbs.)


    Features and benefits

    • 8 channels for 110 V d.c. / 250 V a.c. relay Normally Open (NO) outputs
    • 8 isolated channels
    • Process connection via detachable connectors
