    Digital HD Video Microscope 8X - 600X Magnification Microscope 1920x1080 Camera

    Ask Lasest Price
    Brand Name : SINOWON
    Model Number : VM-507
    Certification : CE
    Price : Can be discussed
    Payment Terms : L/C, T/T
    Supply Ability : 300 Sets/Month
    Delivery Time : 15 work days
    • Product Details
    • Company Profile

    Digital HD Video Microscope 8X - 600X Magnification Microscope 1920x1080 Camera

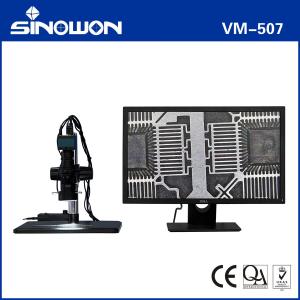

    HD Video Measuring Microscope VM-507



    Product Characteristics:


    ● Sample and generous design, easy to use.

    ● HDMI camera and clear image, by USB or SD flash memory storage pictures and video.

    ● 0.7~5X Horizontal continuous zoom lens, easy change the objective lens and save your time.

    ● LED illumination system and long life and easy change light.


    Application:


    Incoming inspection, production inspection, material research, PCSB and SMT inspection and analysis, printing, textile inspection and other fields.


    Technical Specification:


    CommodityVideo Microscope
    ModeVM-507
    Code#451-507
    Magnification8X~600X ( HDMI 16:9 21.5”monitor)with Auxiliary Objective
    Objective system0.7X~5X zoom lens
    Zoom magnification ratio: 7:1
    1X C-mount camera adapter

    Digital Camera Specification

    2 Mega pixel (1920*1080)
    Target size: 1/2.8”
    Number of frames: 60fps
    Camera functionManual focus
    Photo taking and video record
    HDMI/USB2.0
    Crossline and Reticle
    To measure the lines, circles, arcs, rectangle, and distances, angles, etc.
    LED LightsourceSurface light:adjustable LED surface light
    Ring fiber source (optional)
    Microscope Size

    Column Height: H300mm*D30mm

    Table Base Size: L320*W260*T13mm
    Power SupplyAC90~240V;50~60HZ
    Dimension450*310*525mm
    Gross Weight≈12KG (without monitor)
