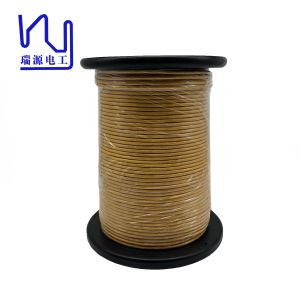

FTIW 0.08mm Triple Insulated Wire Litz Wire Copper

    Buy cheap FTIW 0.08mm Triple Insulated Wire Litz Wire Copper from wholesalers

    Buy cheap FTIW 0.08mm Triple Insulated Wire Litz Wire Copper from wholesalers
    • Buy cheap FTIW 0.08mm Triple Insulated Wire Litz Wire Copper from wholesalers

    FTIW 0.08mm Triple Insulated Wire Litz Wire Copper

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 0.08x1700
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 100000/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    FTIW 0.08mm Triple Insulated Wire Litz Wire Copper

    FTIW 0.08mm Triple Insulated Wire Litz Wire Copper


    ETFE triple insulated wire is engineered to perform well in a wide range of applications from the aerospace and automotive industries to medical devices and consumer electronics. Its excellent insulation properties make it an excellent choice for high-frequency signal transmission, power distribution and control systems.


    FTIW-F-Y 0.08*1700

    Specification (nominal diameter of conductor * number of

    strands)

    Single line [mm]LITZ WIRE

    Conductor tolerance

    Min.paint film

    thickness


    Finished outside diameter


    molding


    Twist [MM]


    0.08*1700


    0.08±0.003


    0.003


    0.086-0.097

    0.08*68S1=45±3
    0.08*68*5S2=45±3
    0.08*68*5*5S3=66±5

    0.08*1700 Finished product line

    Temperature resistance grade ℃


    Straight weldability [s] (430℃±10℃)

    Max.


    resistance [Ω/m]

    (20℃)

    Max.

    Withstand voltage AC to stranded wire (Leakage current 5mA)

    Min.


    Thickness of single insulating layer(mm)


    Max.finished outside diameter[mm]


    155


    6


    2.29


    6000


    0.11±0.01


    4.80

    Quality FTIW 0.08mm Triple Insulated Wire Litz Wire Copper for sale
