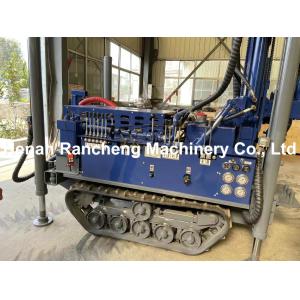

Powerful 180m Mini Crawler Water Well Drilling Rig with 77.3KW
YuChai Engine for Borehole Drilling
Machine Description
RCF180S mini well drilling rig is a small crawler water well
drilling rig. It can drill up to 180 meters and the diameter is up
to 300 mm. This mini well drilling rig has high drilling
efficiency, easy operation, energy saving, and durability which is
suitable for water well drilling, borehole drilling, farmland
irrigation drilling, borehole drilling, etc.
RCF180S water well drilling machine uses a 2-meter-long drill pipe,
making it very convenient to load and unload the drill pipe. It is
not only suitable for general water well drilling, but also can be
used for geothermal wells, ground source heat pump wells and other
projects. This drilling rig is easy to operate and has a wide range
of applications. It is a small water drilling rig with excellent
performance.
Made of high-quality materials and advanced manufacturing
processes, mini well drilling rig has a sturdy structure that can
withstand harsh drilling conditions and can be used for many years
with minimal maintenance.
Technical Parameters
| Bore diameter(hammer) | 90-300mm |
| Bore depth | 180m |
| Air consumption | 17-31m³/min |
| Air pressure | 1.7-2.5Mpa |
| Once-time advance length | 2.4m |
| Pipe diameter | 76mm/89mm |
| Pipe length | 2m |
| Push force | 4T |
| Lifting force | 15T |
| Max torque of rotary | 4000-4600Nm |
| Rotary speed | 45-65r/min |
| Mud Pump flow | 200L/min (option) |
| Feeding efficiency | 10-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension(L*W*H) | 2300×1200×1900mm |
| weight | 2700kg |
| Diesel engine | 77.3KW Yuchai engine |
Advantage
This mini water well drilling rig features a low-emission diesel
engine and an energy-efficient hydraulic system. This combination
not only reduces fuel consumption but also minimizes emissions,
offering both environmental protection and cost savings. With its
powerful hydraulic system and advanced drilling tools, the rig can
drill to a depth of up to 180 meters, making it ideal for small
water well projects or home use.
The crawler chassis ensures excellent stability and outstanding
maneuverability, allowing the rig to operate smoothly across
various challenging terrains and difficult drilling conditions.
This design enhances safety and reliability by enabling efficient
operation even on uneven ground.
Additionally, the rig is equipped with an ergonomic control panel
and an intuitive user interface, which simplifies operation and
improves work efficiency. This thoughtful design enhances operator
comfort and makes it easy to monitor and manage drilling progress.
Overall, this mini water well drilling rig excels in performance,
environmental friendliness, and ease of use, making it an excellent
choice for water well drilling projects.
Image Display
Company Information
Henan Rancheng Machinery Co.,LTD is one professional supplier
drilling rigs in China ,we are dedicated in designing and
manufacture water well drilling rig ,rotary drilling rig ,anchor
drilling rig ,core drilling rig,DTH drilling rig ,solar pile
driver,mud pump ,air compressor and drilling tools etc,we have
advanced technology ,Modern equipment, first-class team and rich
experience ,our products passed ISO9001 ,CE etc certificated ,they
are exported to around 200 countries and areas in the world ,get
very good feedbacks from our clients.
We Pursue the principle of "Customer First, Integrity First", we
are sincerely expecting to cooperate with you!!!
