Automatic Rotor Pump Single Head Filling Machine
Linear Single Lobe Pump Filling Machine has the advantages of high efficiency and high precision, and can
be filled with thin and extremely viscous products without foam.
such as sauce,paste,cream,cosmetic ,honey and so on.It has a

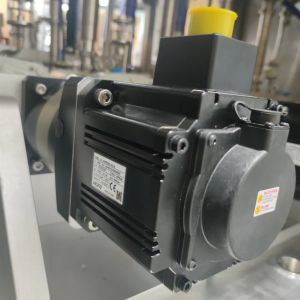

separate servo motor to drive the lobe pump and supply products to
each separate filling head.
MAIN FEATURE
1. High speed---15-25 bottles/min with only 1 filling nozzles
2. Wide Application--- fast switching for various bottles and
products
3. Easy but High Clean---rotor pump control
4: Touch screen operation interface
5: Support up and down movement type filling to effectively prevent
foam generation
6: The filling accuracy can reach ±0.5% (depending on the product,
the filling accuracy is different)
7: The filling cylinder is treated and ground by hard chromium,
with a unique filling valve design, no leakage
8: No bottle no filling function
9: Design different positioning devices according to the actual
situation of the bottle
10: Automatic cleaning function: without manual disassembly, it can
be set once on the touch screen to automatically clean and drain
the sewage.
11: The equipment and material contact are all made of 304#
stainless steel
12. less area occupancy
13. Linear single Lobe Pump Filling Machine is adjustable for many
different types of bottles,Custom donot need to adjust the
traditional cylinder block bottle and nozzle position according to
different bottle . this machine can save much time to change bottle
Product Parameters
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | About 220*80*120CM |
| | About 150kg |
High Pressure Endure SS Hose and Sanization Filling Head
1.Food grade 304ss hose
2.Shut off filling heads
3.With drop collection tray
4.High filling accuracy
5.Diving Nozzles are optional for bubble sauce,like honey
6.304SS Food contruction,no dead corner
7.High quality and food grad O rings and seals inside of the
nozzles
No Dead Corner Hopper
1.Mixing system optional
2.CIP system optional
3.304SS constuction material, 316SS for option
4.Mixing and heating fuction for potion
Automatic Lobe Pump Take Off System
1.Easy but High Clean---rotor pump control
2.Wide Application--- fast switching for various bottles and
products
ESG Valve
1.Easy disassembly three way connectors
2.ESG long life valve and high performace
3.ESG valve to gurantee the shut off accuracy and more stably
4.Sutiable for thin to viscous liquid
High Quality Hose
Adapt 304/316 stainless steelhose characteristics:
1. High strength, good seismic resistance, strong external impact
resistance.
2,.strong corrosion resistance, high temperature resistance, high
pressure, large flow, wide range of use
3. Low coefficient of thermal expansion, strong resistance to high
temperature, slow thermal expansion and cold contraction, not easy
to leak;
After-sale Service
1. Installation:
Our team of skilled technicians is ready to travel and install the filling machine. The service fee covers installation, travel, meal expenses, and
other related costs.
2. Training:
To ensure optimal performance of the filling machine, we offer
on-site or factory training for dealers, machine operators,
engineers, and technicians.
3. Guarantee:
When repairing the filling machine, we provide efficient service, a
one-year quality assurance period, parts supply, and swift feedback
for troubleshooting.
4. Consulting Service:
Take advantage of our complimentary consultation service. Our
professional sales team will guide you to the most suitable
solution, complete with CAD drawing designs for the filling
machine.
5. Technical Support:
Benefit from our all-weather, long-term technical support. Simply
drop us an email or give us a call, and we'll provide quick
feedback, ensuring you can be carefree.
6. Spare Parts:
During transportation, we include a set of vulnerable spare parts
for the filling machine at no additional cost. You can also order a
comprehensive range of high-quality parts at any time
