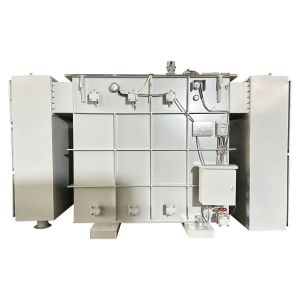

Hermetically Sealed Substation Three Phase Oil Immersed Power Transformer  44000V To 600V CSA C88-M90

Hermetically Sealed Substation Three Phase Oil Immersed Power Transformer 44000V to 600V CSA C88-M90

The 4000 kVA oil immersed transformer uses vegetable oil as the insulating medium that enhances environmental friendliness and ensures excellent insulation performance and extended service life. Safety features include oil level and temperature gauges with alarm and trip contacts. The oil drain valve is also fitted with a locked protective cover to prevent unauthorized access and oil theft.

Main data

Drawing

PRODUCT SPECIFICATION

Accessories

• HV BUSHING WELL(52kV,417A)
• LV BUSHING(FTGl-1/4000,8 HOLES)
• TAP CHANGER
• CORE GROUND BUSHING
• OIL LEVEL GAUGE WITH CONTACTS
• OIL TEMPERATURE INDICATOR WITH CONTACTS)
• PRESSURE RELIEF DEVICE
• PRESSURE VACUUM GAUGE
• Lifting Hook For Complete Transformer
• NAME PLATE
• LOCAL CONTROL PANEL(NEMA 3R)
• RADIATORS
• COOLING FAN
• OIL UPPER FILTERING VALVE
• OIL DRAIN VALVE WITH 3/8" SAMPLER
• GAS FILLING VALVE WITH PROTECT COVER
• HAND HOLE OF TOP

Production process

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.

WINLEY is located in Xiamen, China. We are specialized in manufacturing all kinds of transformers, voltage stabilizers, voltage regulators, etc. The products are widely used in industrial machinery, new energy, power generation, power supply, coal, metallurgy, petroleum, chemical, construction, port, airport, railway transportation, urban infrastructure, and other areas.

With more than 17 years experience, WINLEY always adhere to the route of "Integrity makes brand,quality wins the market"! We have a professional R&D team, a quality control team, scientific production management system and comprehensive customer service system.

WINLEY holds ISO 9001:2015 quality management system certification, All products have approved by CE certification, we can also apply for UL(Authorized by partner), SASO, SONCAP, etc. according to customer requirements.

WINLEY products are sold to Europe, North & South America, Oceania, Asia and Africa, more than 100 countries and regions in the world are using WINLEY products. Products’ quality and technical service are recognized by all customers around the world, and we have cooperative distributors in some countries.

And we will continue to carry forward the integrity of compliance, scientific and technological innovation, win-win cooperation spirit, provide quality products and comprehensive service to all partners, and work hard for the development of the world’s green electrical power.
