Custom Industrial Swimming Pool Heat Exchanger / Aquarium Titanium
Tube Heat Exchanger
| Model | Smooth Pure Titanium Tube | Heating Capacity 1 | Heating Capacity 2 | Water flow | H | H1 | H2 | D | D1 | Water Inlet Outlet |
| mm | KW | KW | m³/h | mm | mm | mm | mm | mm | inch |
| MHTA-0.75 | 12.7×4000 | 2.4 | 2.8 | 1.2 | 450 | 370 | 70 | 110 | 138 | 1 |
| MHTA-1 | 12.7×5000 | 3 | 3.5 | 1.5 | 405 | 290 | 70 | 160 | 200 | 1.5 |
| MHTA-1.5 | 12.7×7000 | 4 | 5 | 2.2 | 455 | 340 | 70 | 160 | 200 | 1.5 |
| MHTA-2 | 12.7×9000 | 6 | 7 | 3 | 485 | 370 | 70 | 160 | 200 | 1.5 |
| MHTA-3 | 12.7×13500 | 9 | 10.5 | 4.5 | 575 | 460 | 70 | 160 | 200 | 1.5 |
| MHTA-5 | 12.7×20000 | 14.5 | 17 | 7.5 | 615 | 500 | 70 | 200 | 240 | 1.5 |
| MHTA-7 | 16×23000 | 20 | 23 | 10.0 | 735 | 620 | 70 | 200 | 240 | 1.5 |
| MHTA-10 | 2-12.7×21000 | 30 | 33 | 10.50 | 670 | 540 | 80 | 250 | 300 | 2 |
| MHTA-12 | 2-12.7×25000 | 36 | 39 | 18 | 715 | 590 | 80 | 250 | 300 | 2 |
| MHTA-15 | 2-16×25000 | 44 | 47 | 22.50 | 810 | 680 | 80 | 250 | 300 | 2 |

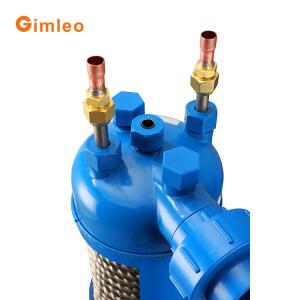

Titanium Heat Exchanger Introduction :
Titanium has the super strong corrosion proof ability and the
titanium heat exchanger use seamless pure titanium tube as heat
conductor, can ensure the titanium heat exchanger can be used for a
long time, without extra charge in the service. Due to its good
properties, the titanium heat exchanger widely used in swimming
pool, marine, central air conditioning unit, aquarium, aquaculture,
cool water irrigation, pharmacy, the food industry, electroplating
industry and some heat recovery from the waste water or exhaust
gas.
Product Features :
1.Self-developed molded cups titanium heat exchanger: the cups
molding by high quality PVC material . RoHS conformance .
2.Due to its perfect structure design, it can stand high work
pressure. The extreme presssure can be 2.1 Mpa, and the bursting
pressure can be 2.3mpa.
3.Its loading capacity can pass REACH, UL, ETL requirement, 100,000
times alternating pressure test shows it can be used more than
10~15 years.
4.Good appearance, more safe in using, high efficient of heat
transfer, easy for installation. It must be your best choice.
Main material :
[ The heat transfer tube ] seamless pure titanium tube, The grade is TA1, made according to
standard GB/T3625-1995, There are 52 bar high pressure test and
precise halogen leaking test in the production, make sure they are
not leak.

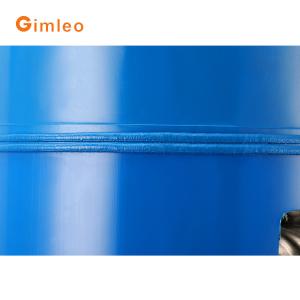

[ Shell ] High quality PVC, acidproof , alkaliproof , anticorrosion, good
resistance to pressure, RoHS performance , environmentally
friendly.
