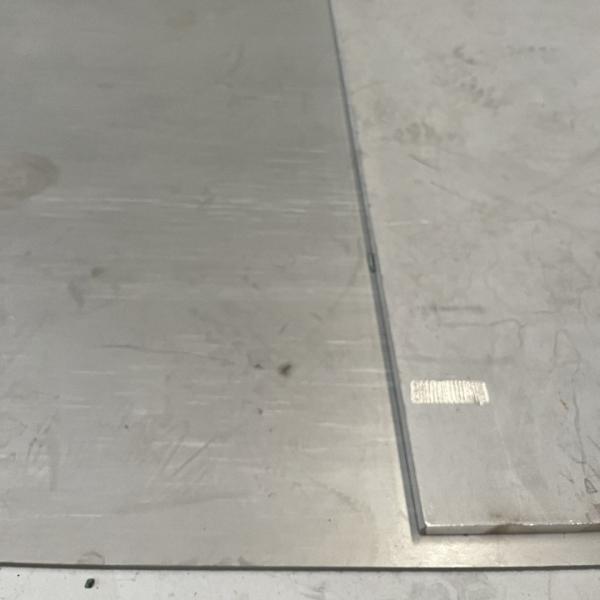

Stainless Steel Plate Size: 4”x 8” x 10 mm thick Material Grade: SS
410 12Cr13 Metal Plate
Product Description
Product Name | Stainless Steel Sheet/Plate |
| Material | 201,202,301,304,304L,304N,XM21,304LN,309S,310S,316,316Ti,316L,
316N,316LN,317,317L,321, 904L, 2205 |
| Surface | BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D |
Size | 1220*2440, 1500*6000 |
Thickness | 0.1-120mm |
Length | 1000 - 6000mm or as your request, 1000 - 6000mm or as you request |
End/Edge | Plain Mill |
Standard | ASTM DIN GB JIS EN AISI |
Grade | 201/304/304L/321/316/316L/310S/904L/309S/316Ti/317L/2205/2507, etc. |
Technique | Cold Rolled,Hot Rolled or Welded |
Certification | ISO9001, SGS, BV, ISO, CE |
Used | Building Industry Machinery, etc. |
MOQ | 1 Ton |
Payment terms | L/C at sight or T/T (30% as deposit) |
Packing | Export standard package or as customers' request |
Delivery time | Usually 7-15 dyas, or upon negotiation |
Price terms | FOB,CRF,CIF,EXW all acceptable |
Samples | Free samples are provided but the fright is borne by the buyer |
Surface Finished | Characteristics | application |
NO.1 | Finished by hot-rolling, smoother and pickling, characterized by
white pickled surface. | Chemical industry equipment, Industrial tanks. |
2B | Finished by anneal treatment, pickling after cold rolling, followed
by skin pass line to more brighter and smoother surface. | General application medical instruments, Tableware. |
BA | Bright anneal treatment after cold rolling. | Kichen utenstil, Kitchen ware,Architectural purpose. |
NO.4(Satin) | Finished by incontinuous linear brushing | Architecture,industries,Escalators, Kitchen ware, Vehicles. |
Hairline | Finished by continuous linear brushing | Architecture,industries,Escalators, Kitchen ware, Vehicles. |
8K(mirror) | A mirror-like reflective surface by polishing with finer abrasives
over 800 mesh. | Refletor, Mirror, Interior- Exterior decoration for building. |
AISI 410 Stainless Steel, SS410 (UNS S41000)
AISI 410 stainless steel is one of the most commonly used
martensitic stainless steels. It contains about 12% Cr and
therefore provides moderate corrosion resistance. Unlike austenite
such as AISI 304 and AISI 316, martensite such as grade 410 is magnetic and can be hardened by
heat treatment like carbon steel and low alloy steel. SS410 has
good tensile strength, creep and fatigue strength and other
mechanical properties, mainly used in steam turbines, jet engines
and gas turbines.
Type 420 is basically a high-carbon version of SS410 which provides higher
strength. Ferritic stainless steel 430 contains a higher chromium content, so it has higher corrosion
resistance.
Datasheet & Specification
The following tables and lists give the stainless steel 410
datasheet and specification including chemical composition,
physical properties and mechanical properties, heat treatment,
welding, etc.
Chemical Composition
SS 410 material chemical composition is listed in the following
table based on cast analysis.
Datasheet 1, The table below shows AISI 410 stainless steel
composition.
| Type 410 Chemical Composition, % |
| ASTM / SAE | AISI (UNS) | C | Si, ≤ | Mn, ≤ | P, ≤ | S, ≤ | Cr | Ni, ≤ |
| ASTM A276/A276M | 410 (UNS S41000) | 0.08-0.15 | 1.00 | 1.00 | 0.040 | 0.030 | 11.5-13.5 | – |
| ASTM A580/A580M | 0.15, ≤ | 1.00 | 1.00 | 0.04 | 0.03 | 11.5-13.5 | – |
| ASTM A959 |
| ASTM A479/A479M |
| ASTM A314 |
| ASTM A240/A240M | 0.08-0.15 | 1.00 | 1.00 | 0.04 | 0.03 | 11.5-13.5 | 0.75 |
| ASTM A473 | 0.15, ≤ |
| SAE J405 | 0.15, ≤ |
Notes:
- ASTM A276/A276M: Standard Specification for Stainless Steel Bars
and Shapes
- ASTM A240/A240M: Chromium and Chromium-Nickel Stainless Steel
Plate, Sheet, and Strip for Pressure Vessels and for General
Applications
- ASTM A580/A580M: Stainless Steel Wire
- ASTM A479/A479M: Stainless Steel Bars and Shapes for Use in Boilers
and Other Pressure Vessels
- ASTM A959: Standard Guide for Specifying Harmonized Standard Grade
Compositions for Wrought Stainless Steels
- ASTM A473: Stainless Steel Forgings
- ASTM A314: Standard Specification for Stainless Steel Billets and
Bars for Forging
- SAE J405: Chemical Composition of SAE Wrought Stainless Steels
AISI 410 Stainless Steel Properties
The datasheets below list grade 410 stainless steel properties
including physical properties and mechanical properties.
Physical Properties
SS 410 stainless steel physical properties are listed in the table
below such as density, melting point, specific heat, electrical
resistivity, elastic modulus (modulus of elasticity), thermal
conductivity, and coefficient of thermal expansion (CTE).
FAQ
Q1. How do you control quality ?
A1: Mill Test Certification is supplied with shipment, Third Party
Inspection is available. and we also get ISO,SGS,
Q2: What is the terms of packing?
A2: generally, we pack our goods in bundles or coils with rods or
belts, we could also pack the goods as the customers requirement.
Q3:What is your delivery time?
A3: For stocks, we could transport the goods to loading port within
7 days after we received your deposit
For production period, it usually takes about 15 days-30 days after
receiving the deposit.
Q4. What are the advantages of your company ?
A4: We have many professionals, technical personnel, more
competitive prices and best after-dales service than other
stainless steel companies.
Q5. How many coutries you already exported ?
A5: Exported to more than 100 countries mainly from America,
Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.
Q6. Can you provide sample ?
A6: We can provide the samll samples in stock for free, as long as
you contact us.
Customized samples will take about 5-7days.
