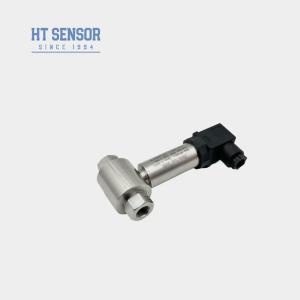

HT Sensor DIN Mounting Differential Pressure Transmitter For Gas And Liquid Measurement

    Buy cheap HT Sensor DIN Mounting Differential Pressure Transmitter For Gas And Liquid Measurement from wholesalers

    Buy cheap HT Sensor DIN Mounting Differential Pressure Transmitter For Gas And Liquid Measurement from wholesalers
    • Buy cheap HT Sensor DIN Mounting Differential Pressure Transmitter For Gas And Liquid Measurement from wholesalers
    • Buy cheap HT Sensor DIN Mounting Differential Pressure Transmitter For Gas And Liquid Measurement from wholesalers

    HT Sensor DIN Mounting Differential Pressure Transmitter For Gas And Liquid Measurement

    Ask Lasest Price
    Brand Name : HT SENSOR
    Model Number : BP93420D-II
    Certification : RoHS, ISO9001
    Payment Terms : L/C, D/P, T/T
    Supply Ability : 3000pcs/month
    Delivery Time : 5-8 workday
    • Product Details
    • Company Profile

    HT Sensor DIN Mounting Differential Pressure Transmitter For Gas And Liquid Measurement

    HT Sensor DIN Mounting Differential Pressure Transmitter for Gas and Liquid Measurement

    BP93420DII Differential Pressure Transmitter


    Introduction of differential pressure transmitter:


    BP93420DII differential pressure transmitter uses diffused silicon piezoresistive sensor.When the pressure difference of the measured medium is located on the corrugated diaphragm on both sides of the sensor, the signal output by the Wheatstone bridge of the sensor chip has a good linear relationship with the pressure difference, and the pressure difference can be accurately measured.It is suitable for pressure difference measurement of various gases and liquids in pipelines of petroleum, chemical, electric power, hydrology and other industries.


    Product Features of differential pressure transmitter:

    1. The transmitter adopts stainless steel structure design, compact structure and easy installation.
    2. After strict temperature compensation and aging screening, to ensure stable and reliable performance.
    3. The electrical interface can be external or direct connection.​

    Performance Parameters of differential pressure transmitter:
    Measurement Range0-10KPa……~2MPa
    Pressure TypeDifferential Pressure
    Single-side Overload≤3 times of the rated range
    Static pressureThe minimum value between 5 times the rated range or 7 MPa
    Accuracy @ 25℃±0.25% (Typical) ±0.5% (Maximum)
    Repeatability±0.03% (Typ.) ±0.05%FS (Max.)
    Hysteresis±0.03% (Typ.) ±0.05%FS (Max.)
    Long-Term Stability±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa)
    Zero Temperature Drift±0.01%FS/℃(>100KPa), ±0.02%FS/℃ (≤100Kpa)
    Span Temperature Drift±0.01%FS/℃(>100KPa), ±0.02%FS/℃ (≤100Kpa)
    Compensation Temperature0-50℃(0-10KPa, 0-20KPa) ,0-70℃ ,-10-70℃
    Operating Temperature-30℃~80℃
    Storage Temperature-40℃~100℃
    Vibration10g,55Hz ~ 2kHz
    Housing Material304,316L
    Diaphragm Material316L
    Insulation Resistance100MΩ 100VDC
    Explosion-proof RatingIntrinsically safe and explosion-proof
    Protection RatingIP65
    Weight~0.45kg

    Output SignalSupply VoltageOutput Type
    4~20mA12~30VDC2/3/4 wire
    0~10/20mA

    3 wire

    0/1~5V
    0.5~4.5V5VDC



    Order Guide of differential pressure transmitter:
    BP93420XXPressure Transmitter
    CodeOutline Construction
    DIIDifferential Pressure Transmitter
    Measurement Range0-10KPa……~2MPa
    CodePower Supply
    D124VDC
    D25VDC
    D3Other
    CodeOutput Signal
    S14~20mADCS50~20mADC
    S21~5VDCS60~10VDC
    S30~5VDCS70.5~4.5VDC
    S40~10mADC
    CodePressure Connection
    J1M20×1.5 Male
    J2G1/2 Male
    J3G1/4 Male
    J41/2 NPT Male
    J5Other
    CodeElectrical Connection
    B1Hirschmann
    B2PG7 Plug
    B3Sealed Cable Output
    B4Other
    CodePressure Type
    DDifferential Pressure
