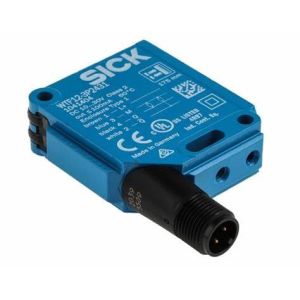

W12 WTF12-3P2431 SICK Photoelectric sensors 100% Genuine SICK Laser
Sensors Convenient One stop Service
Product Description:
Strong performance in rugged metal housing for demanding detection
tasks
The W12 photoelectric sensors can be used nearly anywhere for exact
object detection in demanding environments. Whether you are working
with lasers, infrared light or LEDs – the photoelectric proximity
sensors, photoelectric retro-reflective sensors and through-beam
photoelectric sensors are suitable for a wide range of
applications. The sensors are insensitive to shocks and vibrations
thanks to their zinc die cast housing. IO-Link and BluePilot allow
for fast and simple parameterization. Numerous functions such as
background or foreground suppression ensure extremely reliable
detection of transparent or very dark objects and make the W12
resistant to interference. Condition-based maintenance based on
sensor and diagnostic data reduces costs and increases efficiency.
As a 100% Brand product, you can be assured that the SICK Laser
Sensor is made with the highest quality materials and manufacturing
standards. This ensures that you get a product that is not only
reliable but also durable, making it a great investment for your
business. Additionally, the SICK Laser Sensor comes in its original
paper box, ensuring that you get the product in its best condition
possible.
At One-stop Service, we understand the importance of having a
reliable and accurate distance measuring tool for your business.
That's why we offer the SICK Laser Sensor as part of our product
line. With this sensor, you can be assured that you are getting a
high-quality product that will meet all your distance measuring
needs.
So if you are looking for a distance measuring tool that is
accurate, reliable, and of the highest quality, look no further
than the SICK Opto-Engineering Laser Sensor. With its advanced
technology and superior manufacturing standards, this sensor is the
perfect tool for all your distance measuring needs. Get yours today
and experience the difference!
Features:
Benefits
- Universal application possibilities thanks to MultiMode function
- Precise detection of small objects due to exact light spot of the
laser variants
- Reliable detection of challenging objects such as very dark or
sloping objects thanks to ApplicationSelect mode
- High reliability even under harsh ambient conditions thanks to
tough metal housing
- Simple parameterization with BluePilot on device or via
customer-friendly IO-Link user interface
- High availability levels thanks to predictive maintenance
- Reliable detection of transparent objects – from PET bottles to
transparent foil – thanks to superior chip technology
Features
- Precise autocollimation optics
- Light sources: laser, PinPoint LED, infrared light
- MultiMode function
- Line-shaped light spot for detecting perforated objects
- ApplicationSelect mode available
- IO-Link and BluePilot for parameterization
- Diagnostic functions via IO-Link
- Rugged zinc die cast metal housing
Technical Parameters:
Functional principle | Photoelectric proximity sensor |
Functional principle detail | Foreground suppression |
Sensing range max. | 30 mm ... 175 mm 1) |
Sensing range | 30 mm ... 175 mm |
Emitted beam |
| Light source | LED 2) | Type of light | Visible red light | Light spot size (distance) | Ø 2 mm (60 mm) |
|
Key LED figures |
| Wave length | 640 nm |
|
Adjustment | Potentiometer, 5 turns |
Special applications | Detecting flat objects |
Items supplied | 2 x clamps BEF-KH-W12, incl. screws |
Supply voltage UB | 10 V DC ... 30 V DC 1) |
Ripple | < 5 Vpp 2) |
Current consumption | 45 mA 3) |
Protection class | III |
Digital output |
| Type | PNP | Switching mode | Light/dark switching | Signal voltage PNP HIGH/LOW | > Uv - 2,5 V / ca. 0 V | Output current Imax. | ≤ 100 mA | Response time | ≤ 330 µs 4) | Switching frequency | 1,500 Hz 5) |
|
Output function | Complementary |
Circuit protection | A 6) C 7) D 8) |
Housing | Rectangular |
Dimensions (W x H x D) | 15.6 mm x 48.5 mm x 42 mm |
Connection | Male connector M12, 4-pin |
Material |
| Housing | Metal | Front screen | Plastic, PMMA |
|
Weight | 120 g |
ECLASS 5.0 | 27270904 |
ECLASS 5.1.4 | 27270904 |
ECLASS 6.0 | 27270904 |
ECLASS 6.2 | 27270904 |
ECLASS 7.0 | 27270904 |
ECLASS 8.0 | 27270904 |
ECLASS 8.1 | 27270904 |
ECLASS 9.0 | 27270904 |
ECLASS 10.0 | 27270904 |
ECLASS 11.0 | 27270904 |
ECLASS 12.0 | 27270903 |
ETIM 5.0 | EC002719 |
ETIM 6.0 | EC002719 |
ETIM 7.0 | EC002719 |
ETIM 8.0 | EC002719 |
UNSPSC 16.0901 | 39121528 |
Applications:
REF-DG-K 35MMX35MM | AFM60A-S4NB018X12 | IME08-04NNSZW2K |
IM18-08NNS-ZW1 | YG8U14-020VA3XLEAX | UFN3-70B413 |
IME18-08BNSZC0S | FX3-CPU130002 | YF2A15-150VB5XLEAX |
PL180E01 | WTE11-2N2432 | VL18-4P3940 |
WT45-P260S30 | IM18-08BNS-ZW1 | GTE6-P1212 |
WTB9-3P2261 | WTB4S-3N1361 | WT100-2N1419 |
DT35-B15251 | MPS-032TSTU0 | WTB9-3P3061P07 |
WTT12L-B2542 | DOS-1208-GA | VL18-4N3212 |
WL280-2P4331 | SRS50-HWA0-K21 | YG8U13-050VA1XLEAX |
WTB4-3N1361 | SX0A-A0000BS04 | IME18-08BNSZW2S |
IM12-04BPO-ZC1 | GL6-P4112 | DOL-1204G02MC75KM0 |
IME12-08NPOZW2S | IME18-08NNSZW2S | SRS50-HZA0-S39 |
WLL180T-M432 | YF2A15-050UB5XLEAX | EKS36-0KF0B018A |
The SICK Laser Rangefinder Sensor is an original product that comes
with a 1-year warranty. The packaging is 100% original carton
package, and delivery time is 5-10 workdays. Payment terms include
TNT, DHL, FEDEX, EMS, UPS, PayPal, TT, Western Union, and Alibaba
Trade Assurance, making it easy for customers to choose a payment
method that suits them.
This product is suitable for a wide range of application occasions
and scenarios in industrial control. The SICK Laser Rangefinder
Sensor can be used for distance measurement, object detection, and
positioning. It is ideal for use in robotics, automated
manufacturing, material handling, and other industrial
applications.
The SICK Laser Rangefinder Sensor is a versatile product that can
be used in various environments. It has a rugged design that makes
it suitable for use in harsh conditions. This product has a high
accuracy and precision, which makes it ideal for use in
applications that require accurate measurement and positioning.
With a supply ability of 100 sets per month, the SICK Laser
Rangefinder Sensor is readily available to customers who need it.
The one-stop service provided by the manufacturer ensures that
customers have access to all the support they need.
Packing and Shipping:
Product Packaging:
The SICK Laser Sensor product comes in a sturdy cardboard box with
foam padding to protect the sensor during shipping. The sensor is
securely placed in the center of the box with all necessary cables
and accessories neatly organized around it. The box is labeled with
the product name, model number, and company information for easy
identification.
Shipping:
We offer two shipping options for the SICK Laser Sensor product:
standard and expedited. Standard shipping takes 3-5 business days
and is free of charge. Expedited shipping takes 1-2 business days
and incurs an additional fee. All orders are processed within 24
hours and a tracking number is provided once the order has shipped.
FAQ:
What is the brand name of this laser sensor?
The brand name of this laser sensor is SICK.
What is the minimum order quantity for this product?
The minimum order quantity for this product is 1 set.
Where is this laser sensor manufactured?
This laser sensor is manufactured in Germany.
What certifications does this laser sensor have?
This laser sensor is certified with CE, UKCA, ATEX, UL, etc.
What is the price range for this product?
The price for this product ranges from $10 to $1000.
What are the packaging details for this product?
The packaging details for this product are 100% original carton
package.
What is the delivery time for this product?
The delivery time for this product is 5-10 workdays.
What are the payment terms for this product?
The payment terms for this product are TNT, DHL, FEDEX, EMS, UPS.
What is the supply ability for this product?
The supply ability for this product is 100 sets per month.
