Product Description:

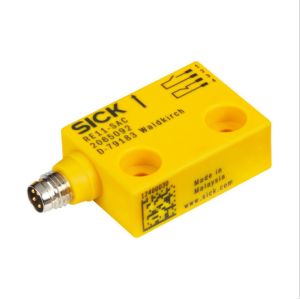

Small magnetic safety switch for non-contact door monitoring
RE1 magnetic safety switches are equipped with either complementary
NC/NO contacts or equivalent N/O contacts which are addressed
directly with coded magnetic actuators. Magnetic safety switches
are used in areas where a high level of contamination occurs. They
are simple to clean, thereby enabling high standards of hygiene.
Their principle of operation enables greater tolerances, making
them ideal for applications where precise guidance of the
protective device is difficult.
As a one-stop service provider, the SICK Laser Sensor is designed
to meet the needs of businesses that require top-quality laser
measurement technology. Whether you need a SICK Laser Target
Sensor, SICK Laser Measurement Sensor, or SICK Laser Detection
Sensor, this product has you covered.
The SICK Laser Sensor is 100% original, ensuring that you receive a
product that is built to last and perform to the highest standards.
With its advanced technology and state-of-the-art design, you can
be confident that this laser sensor will provide accurate and
reliable measurements every time.
So if you're looking for a high-quality laser sensor that delivers
on its promises, look no further than the SICK Laser Sensor. With
its unbeatable combination of quality, delivery time, service, and
condition, this product is the perfect choice for businesses that
demand the very best.
Features:
Benefits
- Long service life due to durable and low-maintenance design
- Space-saving mounting due to compact housing design
- Just one safety switch in conjunction with a suitable safety module
makes it possible to solve applications up to PL e and Cat. 4 (EN
ISO 13849)
- High level of machine availability due to high tolerances for door
misalignment
- The devices are easy to clean, making them suitable for
contaminated areas or environments with strict hygiene standards
- Flexi Loop now enables a safe series connection with enhanced
diagnostics capabilities and minimal wiring effort.
Features
- Response range up to 7 mm
- 2 or 3 contacts
- Up to performance level PL e (EN ISO 13849)
- Sensors with plug connector or connected cable
- Flexi Loop-compatible M12 plug connector (depending on variant)
Technical Parameters:
System part | Sensor with actuator |
Sensor principle | Magnetic |
Number of N/O contacts | 2 |
Number of N/C contacts | 0 |
Number of signaling contacts | 0 |
Safe switch on distance Sao | 7 mm |
Safe switch off distance Sar | 20 mm |
Active sensor surfaces | 1 |
Actuation directions | 3 |
B10d parameter | 2 x 107 switching cycles (with small load) |
Type | Type 4 (EN ISO 14119) |
Actuator coding level | Low coding level (EN ISO 14119) |
Safe state in the event of a fault | The switch has no internal fault detection and is unable to assume
a safe state in the event of a fault. Fault detection is performed
by the connected safety-related logic unit. |
Design | Rectangular |
Dimensions (W x H x D) | 26 mm x 36 mm x 13 mm |
Weight | 0.1 kg |
Housing material | VISTAL® |
ECLASS 5.0 | 27272402 |
ECLASS 5.1.4 | 27272402 |
ECLASS 6.0 | 27272402 |
ECLASS 6.2 | 27272402 |
ECLASS 7.0 | 27272402 |
ECLASS 8.0 | 27272402 |
ECLASS 8.1 | 27272402 |
ECLASS 9.0 | 27272402 |
ECLASS 10.0 | 27272402 |
ECLASS 11.0 | 27272402 |
ECLASS 12.0 | 27274401 |
ETIM 5.0 | EC002544 |
ETIM 6.0 | EC002544 |
ETIM 7.0 | EC002544 |
ETIM 8.0 | EC002544 |
UNSPSC 16.0901 | 39122205 |
Applications:
IME08-02BNSZT0S | GTE6-N1231 | DBS36E-S3EK02000 |
YF2A15-020UB5XLEAX | IME12-04BNSZW2K | WTB9-3P1161 |
GRTE18S-P1317 | C4P-SA12030A00 | I10-M0233 |
RZT7-03ZRS-KW0 | YG8U13-020UA1XLEAX | IM12-08NPS-ZC1 |
BEF-AP-W16 | YM2A28-050UA6XLEAX | BEF-WN-W18 |
VTF180-2P41117 | GTB6-P4231 | GTB2S-N1311 |
IE15-R2 | WT100-P3410 | DBS36E-S3EK02500 |
WT100-P3419 | VTE18-3P8240 | C20E-090303D51 |
WTB27-3P2413S09 | DOS-1205-G | C4M-SE0211A1AA0 |
WTB16P-24161120A00 | GSE6-N1111 | ADAPTER M40 |
WLL180T-P434 | WT150-P460 | WS/WE100-2P4439 |
GTE6-P1231 | VTF18-3E1212 | MZT8-03VPS-KP0 |
TIM561-2050101S80 | KTS-WB41141142ZZZZ | YG2A14-050VB3XLEAX |
BEF-AH-DX100 | IME08-02BPOZT0K | STE-0804-G |
DOL-127SG2M5E25KM0 | YF8U13-020VA1XLEAX | IME08-1B5PSZT0S |
DOS-1205-GQ | WTV4-3N1341 | DOS-2312-G |
DOL-0804-W02MNI | front screen replacement kit | GSE2F-E1151 |
WTB26I-24161120A00 | YF8U14-050UA3XLEAX | WL12G-3P2572 |
PL100 | DOL-0803-W05M | TIM571-2050101 |
The SICK Laser Rangefinder Sensor is a versatile product that can
be used in a wide range of applications. Some of the most common
applications of this product include distance measurement, object
detection, and position sensing. The product is widely used in the
automotive, aerospace, and manufacturing industries, among others.
The SICK Laser Rangefinder Sensor is designed to be highly precise
and accurate. It uses advanced opto-engineering technology to
ensure that it provides reliable and consistent performance. The
product is also certified by CE, UKCA, ATEX, UL, and other
international organizations, ensuring that it meets the highest
quality standards.
The SICK Laser Rangefinder Sensor is available for purchase in sets
of one or more. The price of the product ranges from $10 to $1000,
depending on the quantity ordered. The product is packaged in 100%
original carton packaging, ensuring that it arrives in perfect
condition.
The delivery time for the SICK Laser Rangefinder Sensor is
typically 5-10 workdays. The product can be ordered using a range
of payment methods, including TNT, DHL, FedEx, EMS, UPS, PayPal,
TT, Western Union, and Ali Trade Assurance. The product is also
backed by SICK's one-stop service, ensuring that customers have
access to support and assistance whenever they need it.
Overall, the SICK Laser Rangefinder Sensor is an excellent product
that is ideal for use in various industrial applications. It is
highly reliable, accurate, and versatile, making it an excellent
investment for any industrial control company. If you're looking
for a high-quality laser sensor, the SICK Laser Rangefinder Sensor
is an excellent choice.
Manufacturer: SICK
Application: Industrial Control
Service: One-stop Service
Package: Original Paper Box
Minimum Order Quantity: 1set
Supply Ability: 100set/month
Packing and Shipping:
The SICK Laser Sensor is packaged in a sturdy cardboard box with
foam inserts to protect the sensor during shipping. The box
measures 10 inches by 10 inches by 6 inches and weighs
approximately 2 pounds.
Shipping:
The SICK Laser Sensor is shipped via standard ground shipping with
a delivery time of 5-7 business days. Expedited shipping options
are available at an additional cost. Shipping rates are calculated
at checkout based on the destination and weight of the package.
FAQ:
Q: What is the brand name of this laser sensor?
A: The brand name of this laser sensor is SICK.
Q: What certifications does this laser sensor have?
A: This laser sensor has CE, UKCA, ATEX, UL, and other
certifications.
Q: What is the minimum order quantity for this laser sensor?
A: The minimum order quantity for this laser sensor is 1 set.
Q: What is the price range of this laser sensor?
A: The price range for this laser sensor is from $10 to $1000.
Q: What is the delivery time for this laser sensor?
A: The delivery time for this laser sensor is 5-10 workdays.
Q: What are the payment terms for this laser sensor?
A: The payment terms for this laser sensor include TNT, DHL, FedEx,
EMS, and UPS.
Q: What is the supply ability of this laser sensor?
A: The supply ability of this laser sensor is 100 sets per month.
Q: Where is this laser sensor manufactured?
A: This laser sensor is manufactured in Germany.
Q: What is the packaging for this laser sensor?
A: The packaging for this laser sensor is 100% original carton
package.
