Roller Pressing Granulator
☆ At normal temperature, could press powder material to granule,
suitable for Ammonium Bicarbonate (NH4HCO3), Urea (CO(NH2)2), Ammonium Chloride (NH4Cl), Diammonium Phosphate ((NH4)2HPO4), Potassium Chloride (KCl) etc. single-element fertilizer or
multi-elements fertilizer.
☆ Granule high intensity, no need of drying, greatly reduce
production cost.

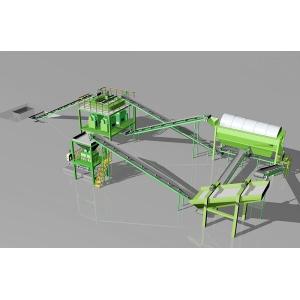

☆ To satisfy customer requests, we design and manufacture complete
set machines as fertilizer production line (Blender, Grinder,
Elevator, Conveyor, Screener, Weigher, etc.), different production
capacity according to customer requests.
☆ Mould roller adopt special meterial, corrosion resistance, wear
resistance, long use life.
☆ Adopt cycloid gear motor to drive directly, running stable, low
noise.
| Model | GY-220 | GY-250 | GY-300 |
| Capacity | 1.0~1.5ton/h | 1.5~2.0ton/h | 2.0~3.0ton/h |
| Granule Diameter | 3~8mm | 3~8mm | 3~8mm |
| Material Moisture | 1~3% | 1~3% | 1~3% |
| Granule Intensity | ≥11~12N | ≥10~11N | ≥10~11N |
| Motor Power | 15kw | 18.5kw | 22kw |
| Overall Dimension | 1300*700*1000mm | 1560*800*1500mm | 2100*800*1600mm |
| Remarks: To make machines according to customer request available. |
