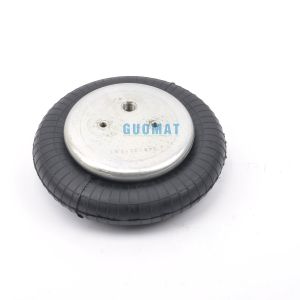

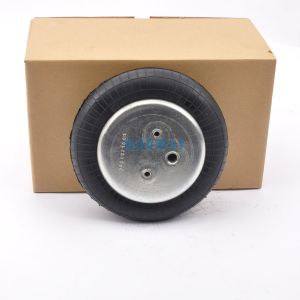

    Single Convoluted Bellow Air Suspension Spring G1/4 Phoenix SP1B07

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : SP 1 B 07
    Certification : ISO/TS16949, ISO9001
    Price : USD49.9-59.9/PC
    Payment Terms : L/C, T/T, Western Union Or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 3-7 Working Days
    • Product Details
    • Company Profile

    Single Convoluted Bellow Air Suspension Spring G1/4 Phoenix SP1B07


    Popular Single Convoluted Bellow Air Suspension Spring G1/4 Phoenix SP1B07
    Product Description

    Type:Single Convoluted Air Suspension Airbag

    Model Number:1B5022

    OEM Number:Phoenix SP1B 07,S P 1 B 0 7,SP 1B07

    Condition:Brand New

    Material:Rubber + Steel

    Warranty:12 Months

    Delivery Time : About 2 - 8 working days after receiving your payment

    Payment:L/C, T/T,Western Union,Paypal

    Working Temperature:-40ºC bis +70ºC

    Failure testing:≥3 millions


    Notice:These air suspension bags are aftermarket ones.They will replace the original air spring bags.
    ---Please double check the picture and drawing carefully before purchasing to ensure you will get the right struts.
    ---Instruction isn't included.Professional installation is recommended.
    ---Contact us please for whatever we can help.


    Product Parameters

    Cover Plate
    Top Cover Plate Diameter:135mm
    Bottom Cover Plate Diameter:135mm

    Air Inlet

    G1/4



    Blind Nut
    Screw Center Distance Of Top Cover Plate:53mm
    Screw Center Distance Of Bottom Cover Plate:53mm
    Screw And Gas Hole Diameter Of Top Cover Plate:26mm
    Top Cover Plate Screw (Nut) Tooth:2XM8X1.25
    Bottom Cover Plate Screw (Nut) Tooth:2XM8X1.25



    Rubber Bellow
    Rubber Bellow MAX Diameter:215mm
    The Working Stroke:MAX 115mm to MIN 50mm
    Maximum Height:115mm
    Minimum Height:50mm
    Compression Height:65mm

    Applications

    Various applications for the vehicle industry such as steering damping, engine vibration damping, belt tensioning damping for engines and on driver seats in commercial vehicles, etc.

    α.On household products such as washing machines
    β.Special shock absorbers for bicycles
    γ.On commercial lawn movers
    δ.In the medical equipment industry ie. on wheelchairs

    Better Plate
    Thicker Bead,Better Durability And Strength Cr3+ White Zinc Electroplating Coating,Long Lasting Corrosion Resistance(240h)

    Higher Safety Bellow
    Specially Formulated Rubber Compound For Enhanced Ozone And Temperature Resistance,Burst Pressure 300+Psi,Fatigue 3 Million+Times.

    Security
    It Is Fully Tested To Ensure A Proper Fit And Performance.

    Detailed Photos

    Popular Single Convoluted Bellow Air Suspension Spring G1/4 Phoenix Sp1b07Popular Single Convoluted Bellow Air Suspension Spring G1/4 Phoenix Sp1b07Popular Single Convoluted Bellow Air Suspension Spring G1/4 Phoenix Sp1b07Popular Single Convoluted Bellow Air Suspension Spring G1/4 Phoenix Sp1b07
