Plug in tuning fork density meter with digial display tuning fork
sensor
Description Plug in tuning fork density meter with digial display tuning fork
sensor

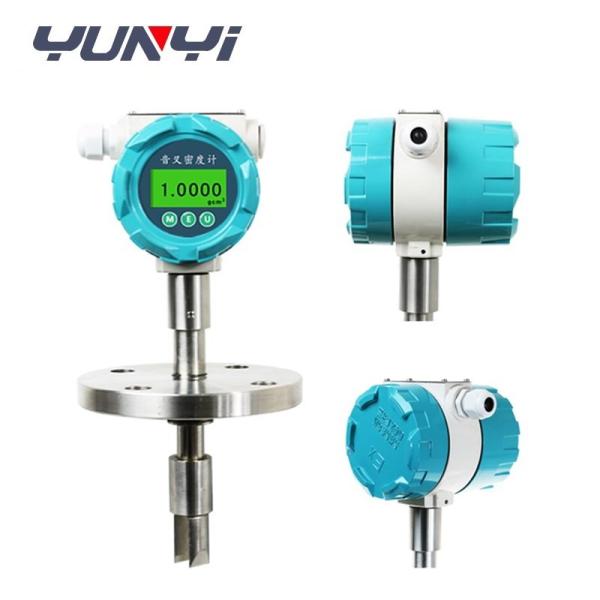

The XY-886 tuning fork density meter is a precision-engineered
device that utilizes the latest frequency tracking technology from
abroad. Its design features a plug-in installation, making it
suitable for a variety of applications such as pipelines, open
tanks, and closed containers. The sensor consists of two
piezoelectric crystals, one for generating vibration and the other
for detecting it. The built-in temperature sensor compensates for
any variations in the vibration of the piezoelectric crystal,
ensuring accurate readings. With its advanced features and
versatile design, the XY-886 tuning fork density meter is a
reliable solution for measuring the density of various mediums.
Application Plug in tuning fork density meter with digial display tuning fork
sensor
Industries that commonly utilize the XY-886 tuning fork density
meter include the petrochemical, brewing, food, pharmaceutical, and
mineral processing sectors. This device is essential for measuring
the density of substances like clay, carbonate, and silicate, among
others.
Additionally, it plays a crucial role in monitoring reactor end
points and detecting separator interfaces, ensuring precise and
efficient processes in these industries.
Specification Plug in tuning fork density meter with digial display tuning fork
sensor
| Measuring range | 0~3 g/cm³ optional |
| Output | 4-20 mA signal (4-wire system) |
| Accuracy | 0.3% (real-time range) or 0.001 g/cm³, whichever is greater. |
| Resolution | 0.0001 g/cm³ |
| Installation method | DN50 DN80 DN100 and threaded installation (threaded installation
with mounting base) |
| Scope of application | -30~120 degrees |
| Maximum working pressure | 20MPa |
| Protection level | IP65 |
| Fork body material | stainless steel 316, Hastelloy C22, manganese alloy 400 |
| Fork body coating | coating (perfect hydrophobicity and non-sticking of impurities in
the liquid) |
