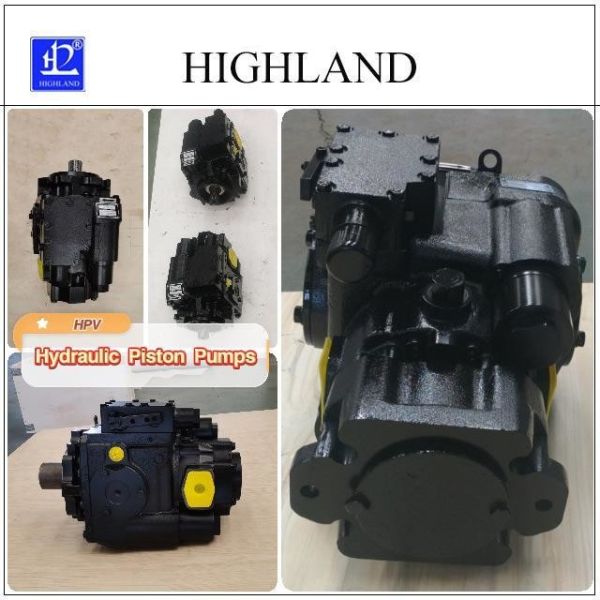

Highland 42 MPA Max Pressure Hydraulic Piston Pump HPV110 For
Combine Harvester
Product Description:
Highland hydraulic piston pump is designed to operate at high
pressure, making it an ideal choice for any application where high
pressure is required. Whether you're crushing rock, concrete, or
other materials, Highland hydraulic piston pump is up to the task.
One of the key features of Highland hydraulic piston pump is its
durability. Made of cast iron, this pump is built to withstand the
toughest conditions and provide reliable performance day after day.
And with a 1-year warranty, you can trust that you're getting a
product that will stand the test of time.
So if you're in need of a high-quality hydraulic pump for your
mobile crusher, look no further than Highland HPV110 Hydraulic
Pump. With its durable construction, high pressure capabilities,
and reliable performance, it's the perfect choice for any harvester
application.
Features:
- Product Name: Hydraulic Piston Pumps
- Standard Or Nonstandard: Standard
- Model: HPV110 Hydraulic Pump
- Material: Cast Iron
- Max Displacement: 110ml/r
- Max Pressure: 42 MPA
- High quality hydraulic pump
- HPV110 hydraulic pump
Technical Parameters:
| Product Name: | HPV110 hydraulic pump |
| Usage: | Combine harvester |
| Medium: | Hydraulic Oil |
| Working Principle: | Hydraulic Transmission |
| Material: | Cast Iron |
| Max Pressure: | 42 MPA |
| Standard Or Nonstandard: | Standard |
| Loading Mode: | Manual Loading |
| Max Displacement: | 110ml/r |
| Power Source: | Hydraulic |
| Minimum Order: | 1 Set |
| High quality hydraulic pump, high pressure piston pump |
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 |
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed
(Full load condition) | r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 |
| Min continuous working speed | r/min | 500 |
| Pressure | Rated working pressure | Mpa | 35 |
| Max working pressure (transient) | Mpa | 42 |
| Continuous working pressure | Mpa | 30 |
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
| Torque | Continuous output torque
(Under continuous working pressure) | Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 |
| Temperature | Allowable shell temperature | ℃ | 80 |
| Max working temperature of oil tank | ℃ | 70 |
| Weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HMF series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 |
Applications:
The HIGHLAND HPV110 hydraulic pump is perfect for a wide range of
applications. It is commonly used in combine harvesters, where it
is used to power the crushing equipment. It is also suitable for
other heavy-duty applications, such as construction equipment,
mining machinery, and more. With a max displacement of 110ml/r,
this pump delivers the power you need to get the job done.
Ordering the HIGHLAND HPV110 hydraulic pump is easy. The minimum
order quantity is 5 sets, and the price ranges from USD900-1400 per
set, depending on the order quantity. The pump is packaged in a
sturdy plywood case to protect it during shipping, and delivery
typically takes 10 working days. Payment can be made via T/T or
Western Union, and we offer a supply ability of 200 sets per month.
When you choose the HIGHLAND HPV110 hydraulic pump, you can be
confident that you are getting a product that is backed by a 1-year
warranty. This piston pump for sale is a reliable and
cost-effective choice for your hydraulic transmission needs. So why
wait? Order your HIGHLAND HPV110 hydraulic pump today and
experience the power and performance you need to get the job done
right.
FAQ of hydraulic piston pumps:
Q1: Could I have a sample order?
A: Yes, we welcome a sample order to test and check quality.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and
sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Each motor or pump should be tested before shipping, test report
can be sent if requested.
Warranty: 1 year.
Q4: What are the payment terms?
A: Full order: 40% as deposit, balance before shipment.
Small order/sample order: Full advance payment.
Q5: Are you manufacturer?
We are a manufacturer with own plant manufacturing producing
hydraulic pumps and motors.
20 years experience in hydraulic industry for oversea and domestic
markets. Main business range is hydraulic motor pump system, piston
pumps and motors, welcome to visit our factory in Dezhou city
Shandong province.
Tags: hydraulic piston pump HPV110, 42Mpa hydraulic piston pump,
hydraulic pump for combine harvester
