| Brand Name : | Shinhom |
| Model Number : | SCTK831 Series |
| Certification : | RoHS |
| Price : | Negotiation |
| Payment Terms : | T/T |
| Supply Ability : | 10000/MONTH |
| Delivery Time : | 4~8 Weeks |

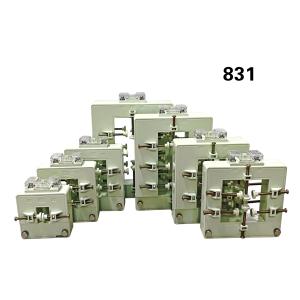

SCTK831 Series Split Core Current Transformer up to 5000A Input Snap Closing / Opening,Light Weight
The SCTK831 series of split core style current transformers are
designed for fast and easy installation. The split core design
permits non-contact current measurements through magnetic field
induction without disconnecting cables circuits for CT
installation. This method permits a safer, easier and portable
current measurement.
Electrical Parameter
| Frequency | 50-60Hz |
| Rated Input | 5A-5000A |
| Measuring range | 10%In-130%In |
| Rated Output | 1-5A |
| Ratio | ± 1.0% |
| Phase angle | ≤ ±30min |
| Dielectric strength | 3.0KV/1mA/1min |
| Insulation Resistance | DC500V/100MΩmin |
Features:
Applications:

Notes: Product specifications can be customized
|   |
