    Cotek Sub Rack For Use With SR-1600 PLUS Inverter SR-2U2 Rack Plus Power Shelf

    Ask Lasest Price
    Brand Name : Cotek
    Model Number : SR 1600-224 Plus
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : lakh
    Delivery Time : 7-15days
    • Product Details
    • Company Profile

    Cotek Sub Rack For Use With SR-1600 PLUS Inverter SR-2U2 Rack Plus Power Shelf

    SR-1600 PLUS Features

    Modbus Protocol Interface

    Engineering Bootloader Mode

    Monitoring Event Log

    Direct Alarm Message

    EPO mode (Emergency Power Off)

    Hot swappable module with LED indicator

    Standard 19” 2U rack mount

    Zero transfer time

    DC Mode / AC Mode selectable (Dual input AC / DC)

    High efficiency up to 95% at AC Mode

    Up to 32 modules can be connected in parallel (up to 51.2KW)

    CE / FCC approved


    Specification

    MODELSR-1600-124 PLUS, SR-1600-148 PLUS, SR-1600-224 PLUS, SR-1600-248 PLUS
    Main Features◎ New Intelligent Power Conversion Control~ (Software) ◎ Module design hot-swappable, redundancy rack mount inverter ◎ Parallelable module up to 32 pcs ◎ Selectable DC Mode / AC Mode / AC Sharing
    AC Output Voltage100~120VAC; 200~240VAC
    Rated Power1200W/1600VA; 1600W/1600VA; 1200W/1600VA; 1600W/1600VA
    Surge Power
    Output WaveformPure Sine Wave
    Frequency50/60 Hz
    DC Output Voltage
    DC Output Voltage Range
    DC Input Voltage24V / 48V
    DC Input Voltage Range18~34VDC ± 3%; 36~68VDC ± 3%; 18~34VDC ± 3%; 36~68VDC ± 3%
    EfficiencyAC Mode: 95% DC Mode: 89%; 90%; 90%; 91%
    Operating Temperature-25°C ~ 40°C ; Power De-rating from 40°C to 60°C
    Storage Temperature-40~70℃
    SafetyCE / FCC
    Dimension (WxHxD)Module: 105x83x410 mm; Shelf: 446x85x509 mm
    Weight (Net)Module: 3.8kg; Shelf: 6.5kg
    Socket TypeTerninal

    product Display

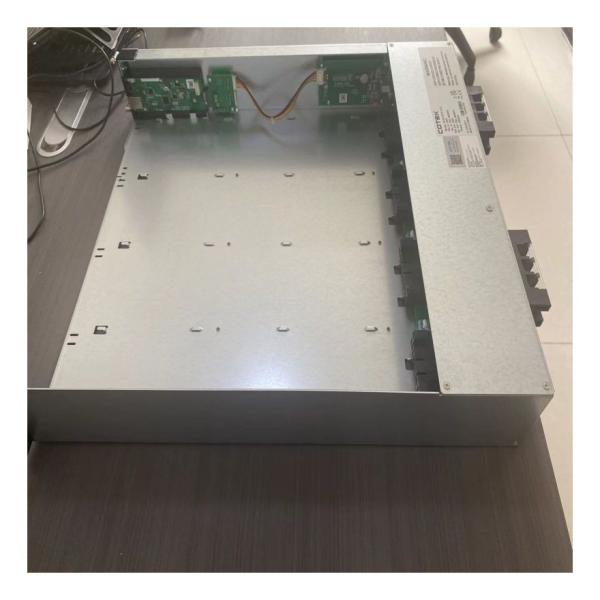

    Quality Cotek Sub Rack For Use With SR-1600 PLUS Inverter SR-2U2 Rack Plus Power Shelf for sale
