    Q355B Q690 Excavator Long Reach Boom Customized Excavator Extension Arm

    Customized Long Reach Boom Q355B/Q690 Extention Arm For Excavator

    Application Range:

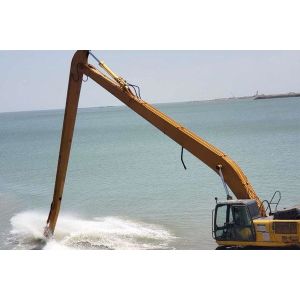

    Excavator Long Reach Boom is a Special purpose Attachment for Deep and Long Distance Dig-
    ging and Dredging. It is Widely Used in Sand and Gravel Pits Digging, Slope Forming, Setting
    Banks, Cleaning Ponds, Waterway, etc. Recently, More and More Long Reach Booms Appear in
    Demolition Site and Some Other Special Condition Work Site.

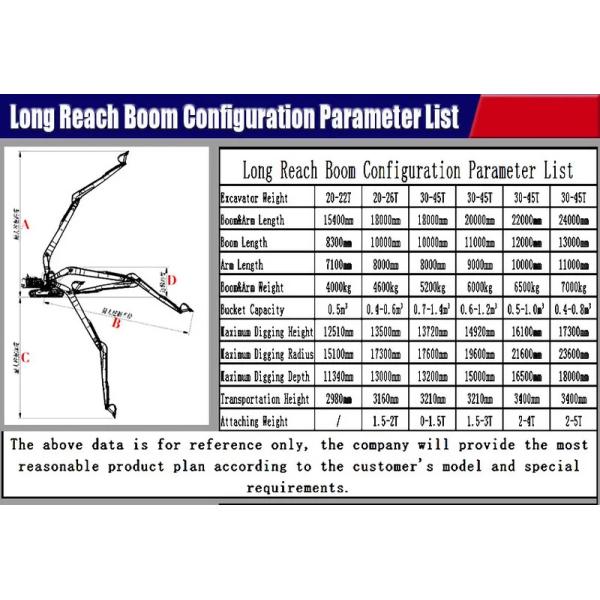

    Specification
    model
    LR-120
    LR-200
    LR-220
    LR-300
    LR-350
    LR-400
    LR-450
    Arm length(mm)
    13000
    15380
    15380
    18000
    20000
    22000
    24000
    Weight(KG)
    3000
    4000
    4200
    5200
    6000
    6500
    7000
    Bucket capacity(m³)
    0.3
    0.4
    0.4
    0.4
    0.5
    0.6
    0.6
    Maximum digging depth(mm)
    9000
    11340
    11370
    13000
    15000
    16500
    18000
    Maximum extension(mm)
    12500
    15100
    15100
    17600
    19600
    21600
    23600
    Maximum digging height(mm)
    11300
    12510
    12610
    13720
    14920
    16100
    17300
    Folding height(mm)
    2900
    2980
    3040
    3210
    3210
    3400
    3400
    Adapter excavator tonnage(ton)
    12
    20
    22
    30
    35
    40
    45
    Technical Advantage
