    W013587451 Firestone Air Spring DIA. Max. 205 Air Suspension Bellows / Single Convoluted

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 1B7451
    Certification : ISO/TS16949:2009
    • Product Details
    • Company Profile

    W013587451 Firestone Air Spring DIA. Max. 205 Air Suspension Bellows / Single Convoluted

    W013587451 Fire stone Air Spring DIA. Max. 205 Air Suspension Bellows / Single Convoluted


    GUOMAT Part Number:1B7451 Specifications and Technical parameters

    Nut / Blind Nut


    Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Top Cover Plate : 44.45 mm

    Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Bottom Cover Plate : 44.45 mm


    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : 1/4NPTF

    Screw Center Distance Between Gas Hole and Nut : 22.25 mm


    Cover Plate

    Top Cover Plate Diameter: 115 mm

    Bottom Cover Plate Diameter: 115 mm


    Rubber Bellows

    Rubber Bellows MAX Diameter: 205 mm

    Rubber Bellows Natural Diameter : 180 mm

    The Working Stroke : MIN 50 mm to MAX 140 mm

    Maximum Height : 140 mm

    Minimum Height :50mm

    Stroke Height : 90mm


    Bumper block / Buffer block

    Without Bumper Block


    Girdle Hoop / Girdle Ring

    With Girdle Hoop :no One Pieces of Girdle Hoop


    Goodyear Part # 1B7-100 Goodyear-FIRE STONEAir Spring Cross Reference‚ 1B7-101 Goodyear-FIRE STONEAir Spring Cross Reference‚ 1B7-102 Goodyear-FIRE STONEAir Spring Cross Reference‚ 1B7-103 Goodyear-FIRE STONEAir Spring Cross Reference‚ 1B7-540 Goodyear-FIRE STONEAir Spring Cross Reference‚ 1B7-541 Goodyear-FIRE STONEAir Spring Cross Reference‚ 1B7-542 Goodyear-FIRE STONEAir Spring Cross Reference


    aximum Diameter @ 100 PSIG (mm)210.82Other Cross Reference

    W01-358-7451, W013587451, WO1-358-7451, WO13587451


    Maximum Height (mm)140Manufacturer Part NumberW013587451
    Maximum Stroke (mm)76.2ManufacturerFire stone air spring Industrial
    Minimum Usable Height (mm)50Style Number110B
    1 Inch (pounds)2090Style ShapeSingle Convolution
    3 Inch (pounds)1030Natural Frequency (@80 psig) (cpm)162
    Bead plate Type1400 CPM %80.2
    Blind Nut Centers (mm)44.45800 CPM %95.7
    Design Height4.51500 CPM %98.8
    40 psig (pounds)650Maximum Stroke (pounds)940
    60 psig (pounds)1010Material2-Ply Standard Cord
    80 psig (pounds)1390

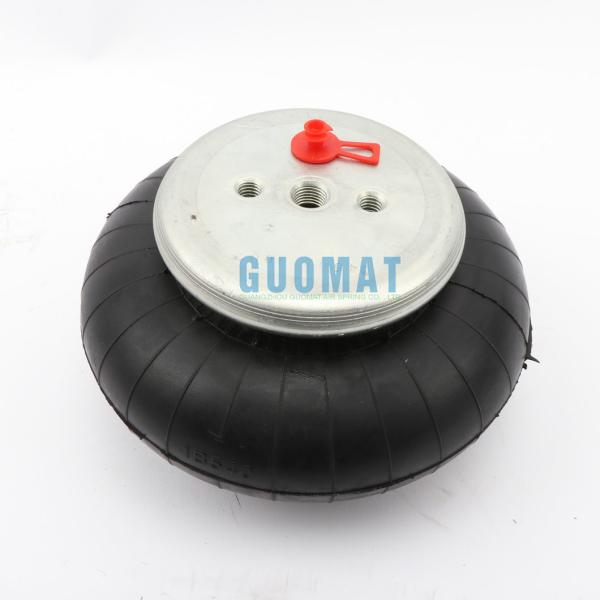

    W013587451 Fire Stone Air Spring Dia. Max. 205 Air Suspension Bellows / Single Convoluted

    W013587451 Fire Stone Air Spring Dia. Max. 205 Air Suspension Bellows / Single Convoluted
    W013587451 Fire Stone Air Spring Dia. Max. 205 Air Suspension Bellows / Single Convoluted
    W013587451 Fire Stone Air Spring Dia. Max. 205 Air Suspension Bellows / Single Convoluted
