Bergquist 0.9W/m·k SIL PAD TSP K900/SP K-4 thermal conductive
silicon film
Product overview:
- Using a special Kaoton film substrate, it is a durable insulating
gasket that can withstand high pressures and can completely replace
thermal grease to conduct heat.
Product features/Applications :
- Thermal impedance: 0.9W/m·k.
- With high temperature resistance, high insulation strength,
durable.
- Used in computer motherboard, communication hardware, new energy
vehicle equipment, power supply, chassis power conversion equipment
and so on.
PRODUCT PARAMETERS
Test item
| Test method | Unit | Meteic value |
Color
| Visual | - | Gray |
Reinforcement Carrier
| - | - | Kapton |
Thickness
| ASTM D374 | MM | 0.15 ± 0.025 |
Hardness
| ASTM D2240 | Shore A | 90 |
Breaking Strength
| ASTM D 1458 | (lbs/inch) / (kN/m) | 5 |
Elongation (%)
| ASTM D412 | % | 40 |
Tensle Strength
| ASTM D412 | psi / MPa | 35 |
Dielectric Breakdown Voltage | ASTM D149 | Vac | 6000 |
Volume Resistivity
| ASTM D257 | Ohm-meter | 1×1012 |
Continuous Use Temp
| - | ℉ / ℃ | -60 ~ 180 |
Flame retardant rate
| UL 94 | - | VTM - 0 |
Dielectric constant
| ASTM D150 | 1000 MHz | 5.0 |
Teat conductivity
coefficient | ASTM D5470 | W/m·K | 0.9a |
THERMAL PERFORMANCEvs PRESSURE
Pressure
(psi) | 10 | 25 | 50 | 100 | 200 |
TO-220 Thermal Performance (°C/W) | 3.66 | 3.43 | 3.13 | 2.74 | 2.42 |
Thermal Impedance (°C-in2/W) | 1.07 | 0.68 | 0.48 | 0.42 | 0.38 |

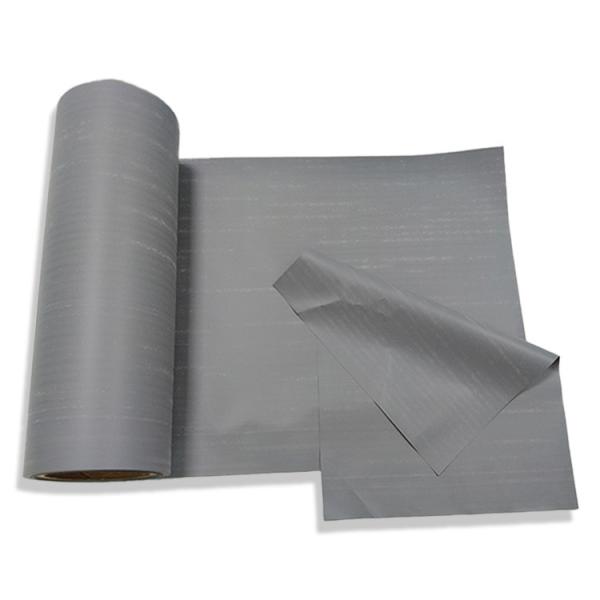

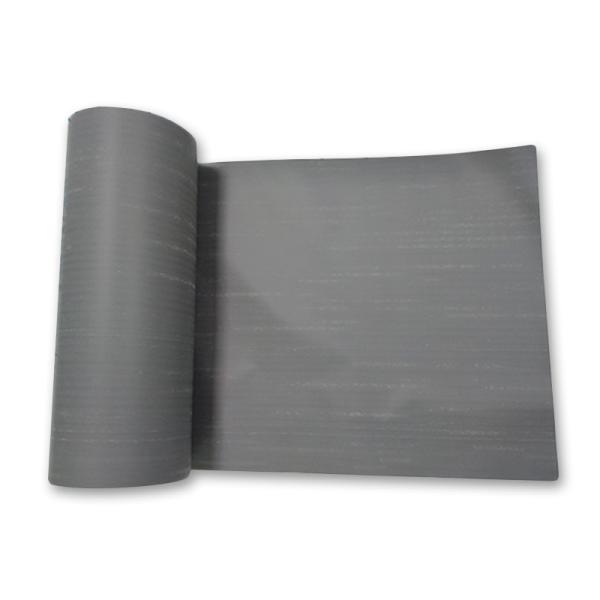

PRODUCT DISPLAY
PACKING OF TRANSPORT
COMPANY PROFILE
SHENZHEN PUFENG PACKING MATERIAL CO.,LTD (PUFENG) is an
international machining manufacturer, who is devoting to the
precision die-cutting machining field, designing adhesive products,
insulation products, sourcing the best solutions and improving the
quality and performance of products for customer.
The operation principle of PUFENG is "Running based on the market
and sincerity,client and high quality come first." In order to
provide a complete set of on-step products and service to customer,
PUFENG has formed a strong technical team for worldwide customers
to develop precision products. PUFENG’s quality principle is “Serve
customers precisely on every tiny point of the demand from
customer.” We hope to build up business relationships with you on
the basis of equality and mutual benefit.
OUR SERVICES
1.Your enquiries about our products will be answered within 12
hours.
2.OEM or ODM projects are very welcome.
3.We can die cut or design products according to your
requirements.shock-proof, shading, etc.
4.Provide perfect after-sales service, if you have questions,
please contact us.
5.Pack according to your requirement and deliver on time.
COMMON PROBLEM
1.)How to order from Pufeng?
Just send us an email or call us.
2.)Do you provide free samples for testing?
Yes, we provide samples free of charge.
3.)How to deliver the goods?
We will advise you on the appropriate mode of transport, sea, air
or express. Of course, if you have your own repeater, that's no
problem.
4.)Can we trust the quality of Pufeng products?
Of course, don't worry. Our quality will definitely match the
samples we send. If not, we will be responsible.
5.)What payment does Buffon accept?
For small quantities, we require 100% TT payment in advance; Other
conditions, negotiable.
6.)What is the lead time of each order?
If the tape you ordered is in stock, we can deliver it within 1~3
days.
If die cutting is required, delivery time shall be determined by
quantity.
