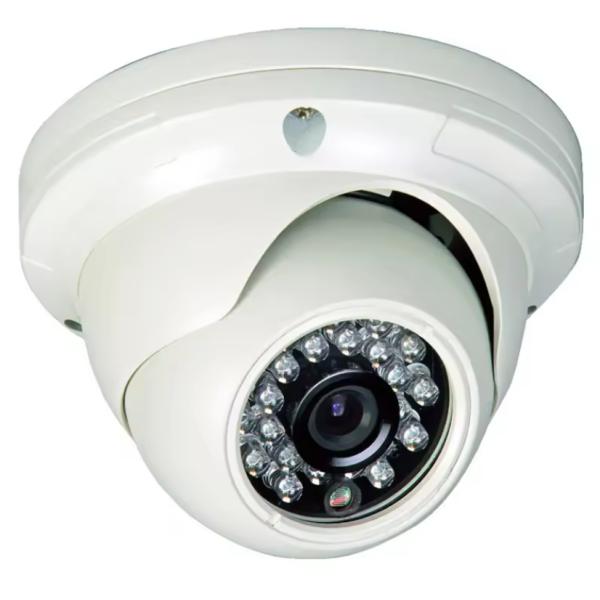

IR Cut Infrared LED Metal Vandal-Proof Indoor Full HD Vehicle Dome
Camera for Bus, Truck
Vehicle Dome Camera Technical Specifications
| Camera | Main processor | FH8852V200 |
| Image Sensor | 1/2.9″ CMOS GC2063 |
| Horizontal Resolution | 3.0MP/2.0MP(default) |
| Minimum Illumination | Color:0.01Lux/F1.2 |
| S/N | ≥69dB(AGC OFF) |
| Day and night switch | EXT(default),Support IR CUT switching |
| Electronic Shutter | 1/25S～1/10000S |
| IR LEDS Quantity | 12pcs LEDs |
| IR distance | ≤8 meters |
| Lens | Lens focal length 2.8mm | 2.8mm |
| Lens mount | M12*P0.5 |
| Video Processing | Video compression standard | H.264/H.265 |
| Video resolution | Main stream: 2304x1296,1920×1080,1280×720；Sub stream:800x448
,704x576,640x360,352x288 |
| Video frame rate | 300W(30fps) |
| Audio | Audio | G.711U,G.711A |
| Audio input | Built-in Mic |
| Network Function | Network Protocol | Support: P2P,CGI,HTTP,TCP/IP,IPv4,RTSP,UDP,NTP,DHCP, DNS,IP Filter |
| Access Protocol | Support ONVIF Protocol |
| Interface | Communication interface | 10/100M adaptable Ethernet interface, RJ45 |
| General Specification | Waterproof grade | IP65 |
| Operating Temperature | ,-20°C~+70°C |
| Power Supply | DC12V±10% |
We are different from other suppliers.Welcome you to test and
compare.
Our advantages
1.We all the time provide car cameras for many car bus truck
factories since 12 years ago .We pay much attention to our cameras
quality ,adopt A class PCB tech and 4 holes in mainboard completely
insulated, isolation of the camera body from excess power, chip not
touch camera body, prevent magnetic interference and ensure signal
continuity.
2. Careful production Process:
Raw Material---- Accessories High Temperature
Test---Assembly----Finished Products----Waterproof Test----High Low
Temperature Test(Simulate -60℃to 80℃)----QA Test(IR with function Test ----Packing
3.Strict Tests one by one .
Due to our strict quality control and careful workmanship ,our
clients like our cameras very much .Nearly all clients have been
cooperating with us all the time .
4.We explore some wide angle or special cameras to meet your
requirements that others don't have.
FQA
Q: What is the MOQ ?
A: 1 peice
Q: How fast for sample delivery?
A: 3-7 days
Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the prices.
Q: How about the warranty period?
A: One year!
Q: How can you guarantee the quality?
A: We have a QC team with 12 years’ experience. All of the products
will run through over 4 times’ 100% testing before being delivered.
